<< F >> Rack Stopper/Rack Bushing/Oil Seal/O-Ring/Rack Assembly Removal

CAUTION: Do not damage the press-in portion of the oil seal on the rack bush.

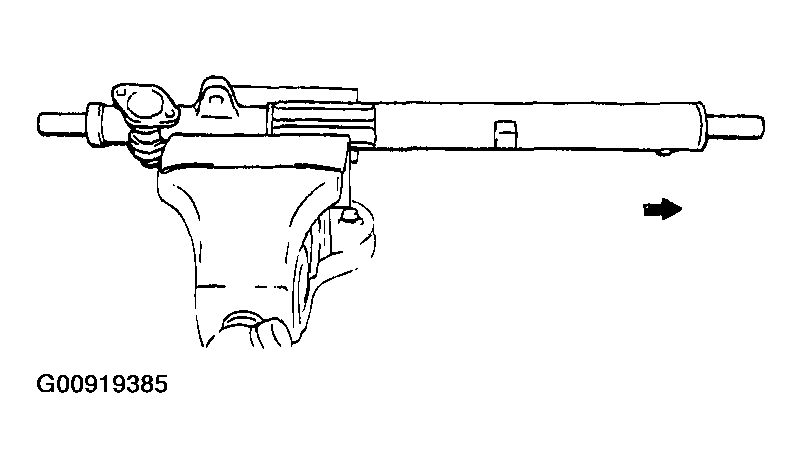

Pull out the rack assembly carefully and take out the rack stopper, rack bush, oil seal and O-ring at the same time.

Fig 1: Removing Rack Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

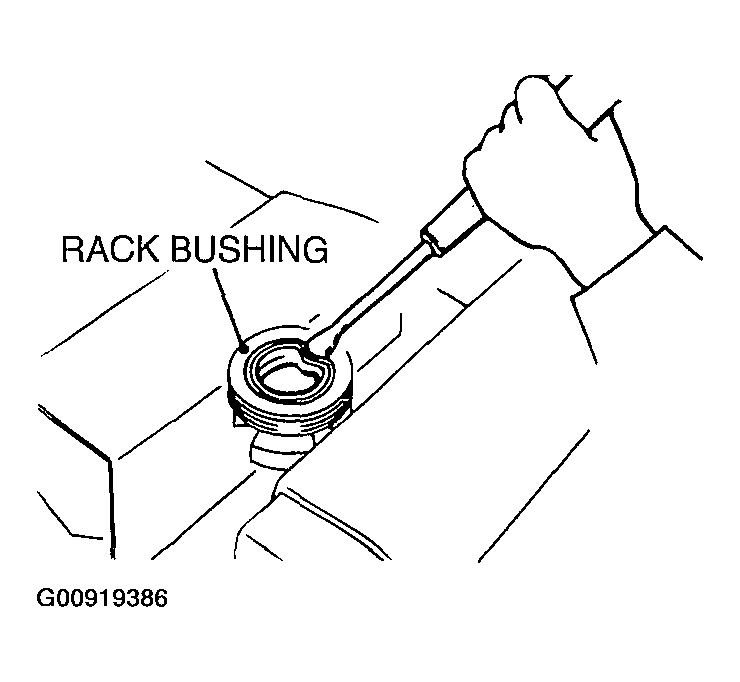

Bend a portion of the oil seal to remove it from the rack bushing.

Fig 2: Removing Oil Seal From Rack Bushing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
