Disassembly And Assembly: Notes

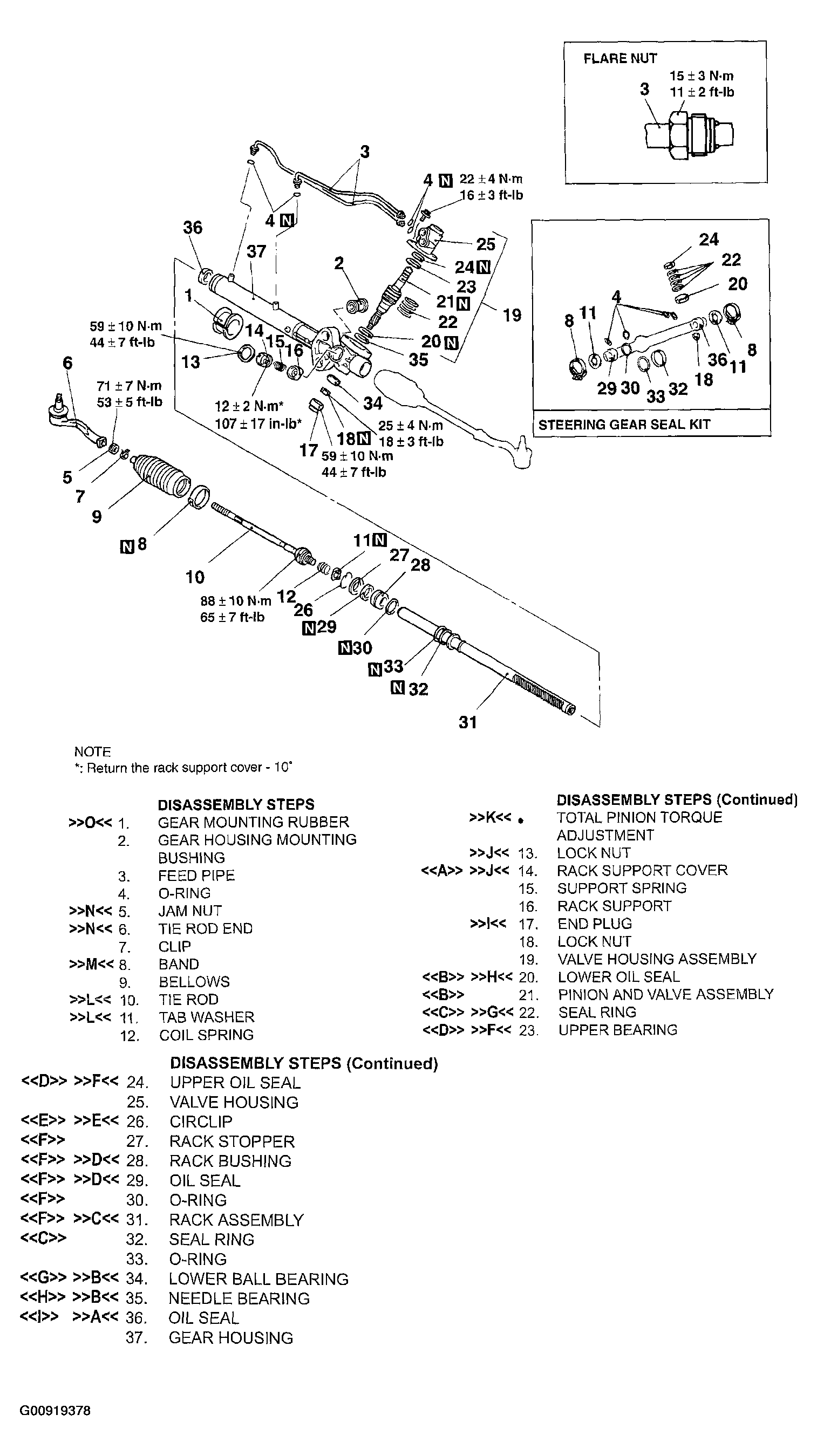

Fig 1: Exploded View Of Steering Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
