Removal And Installation: Notes

WARNING: Before removing the steering gear box, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

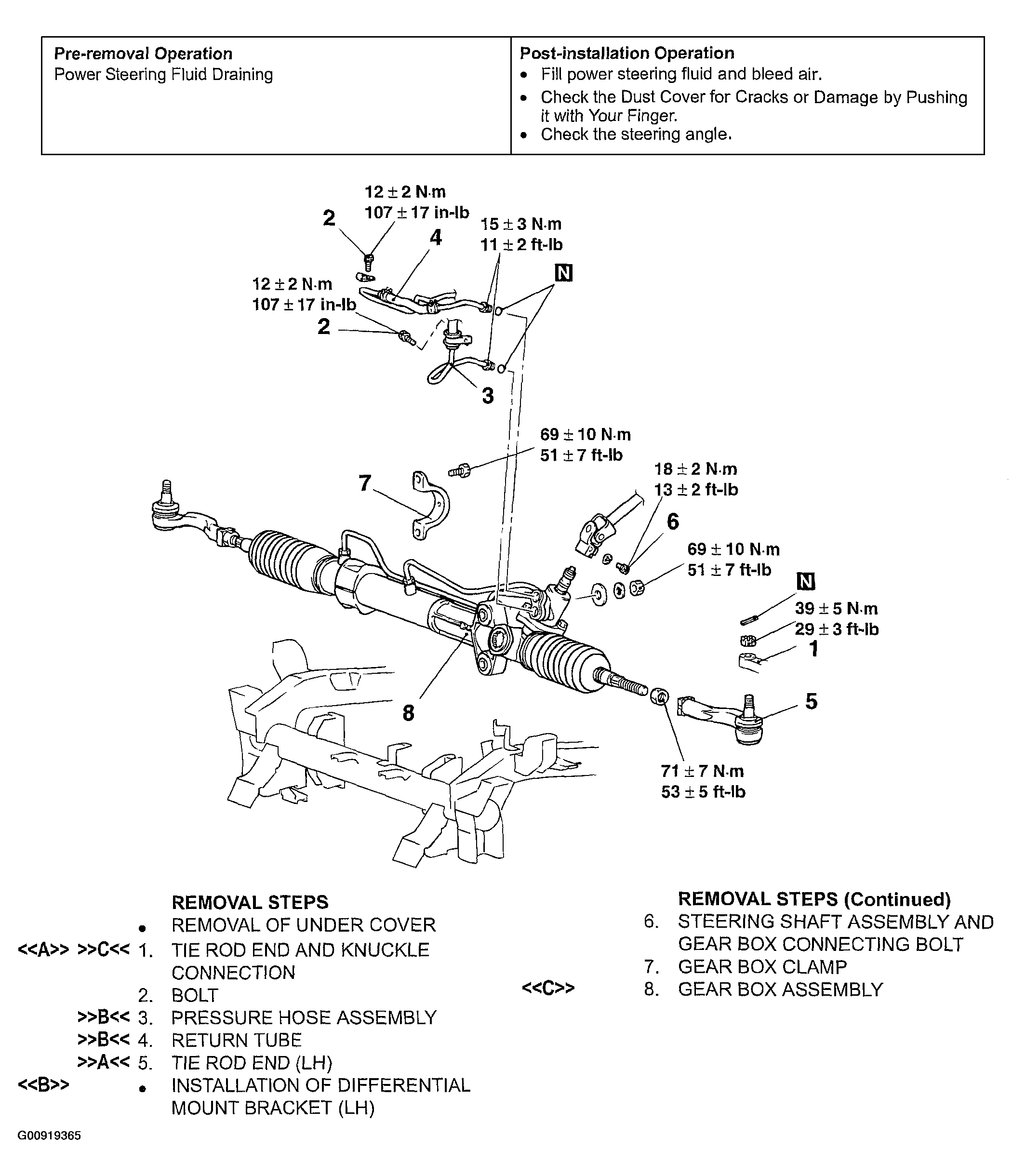

Fig 1: Exploded View Of Power Steering Gear Box Assembly
G00919365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
