Torque Converter Clutch Control

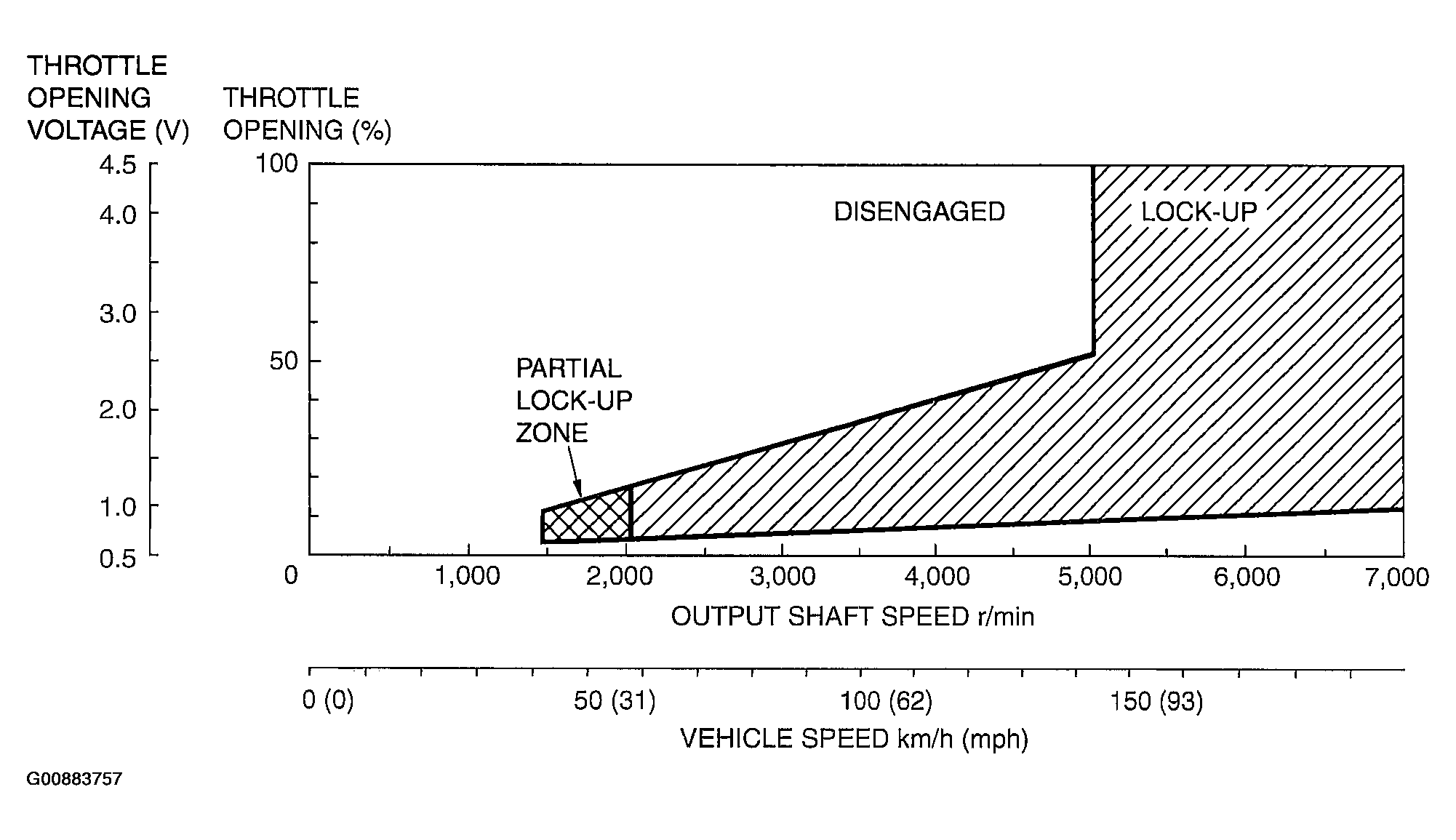

Fig 1: Graph - Torque Converter Clutch Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
