Sectional View

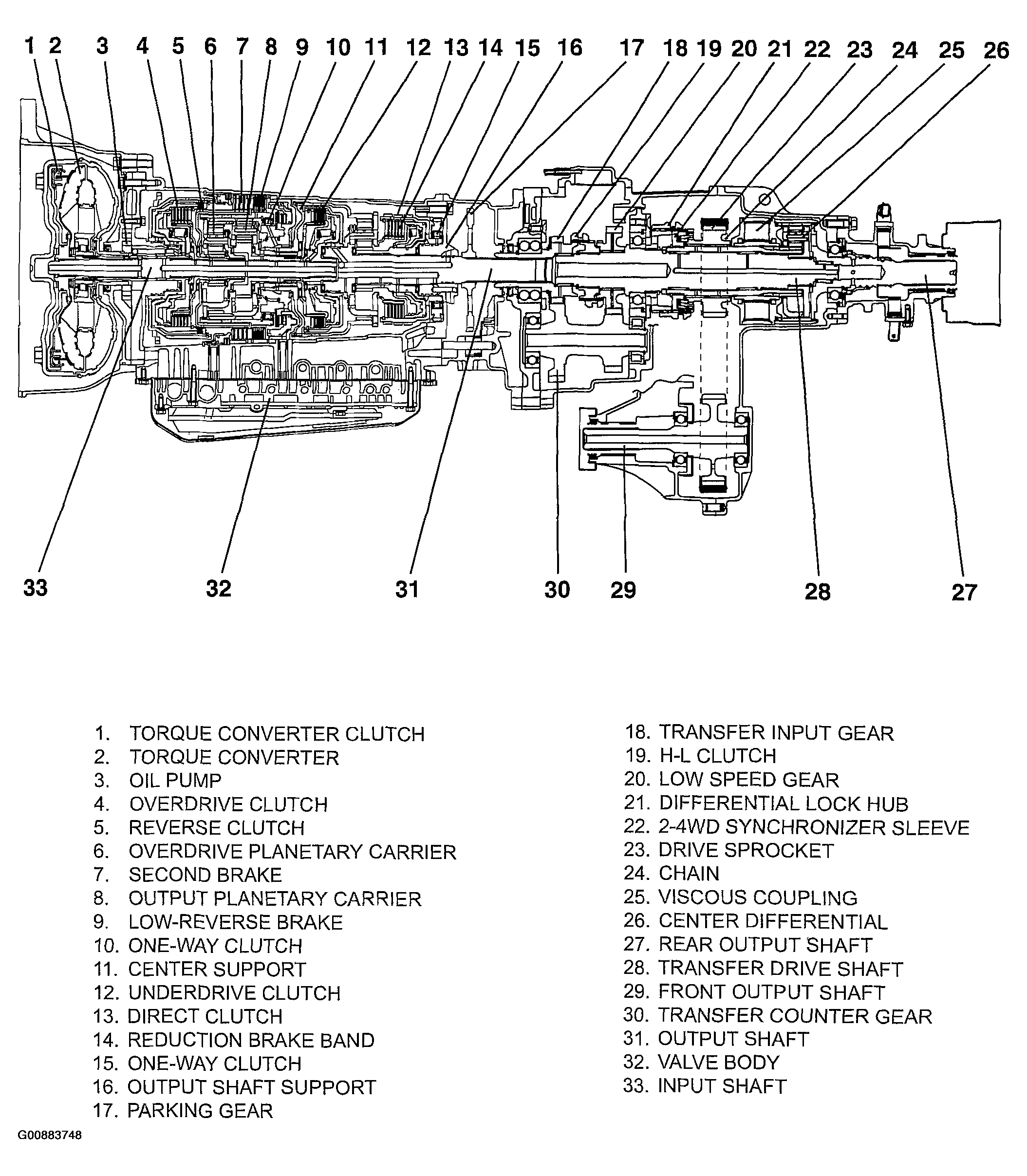

Fig 1: Sectional View Of Automatic Transmission
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
