Removal And Installation

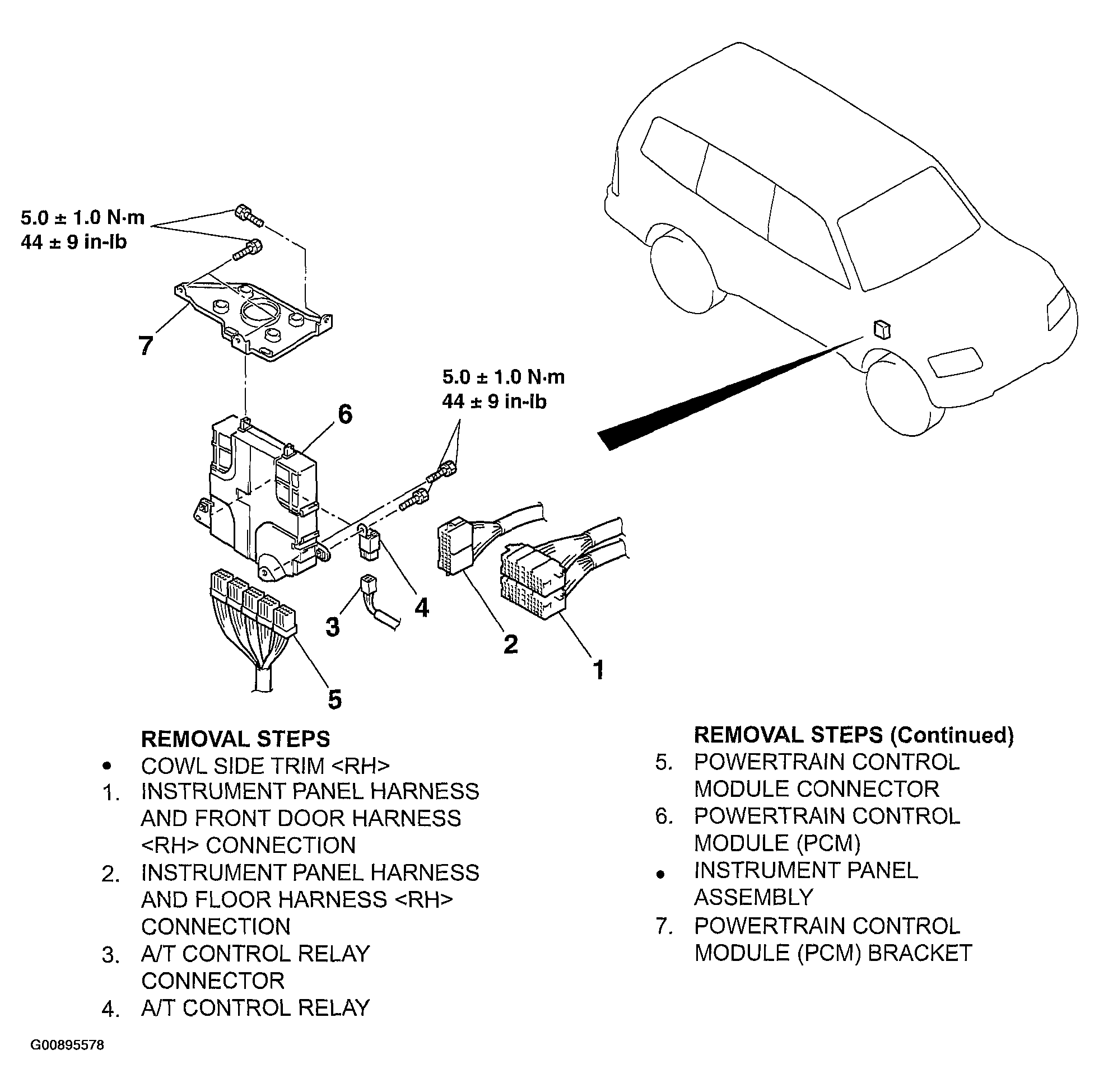

Fig 1: Removing Powertrain Control Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
