Shift Switch Assembly Continuity Check

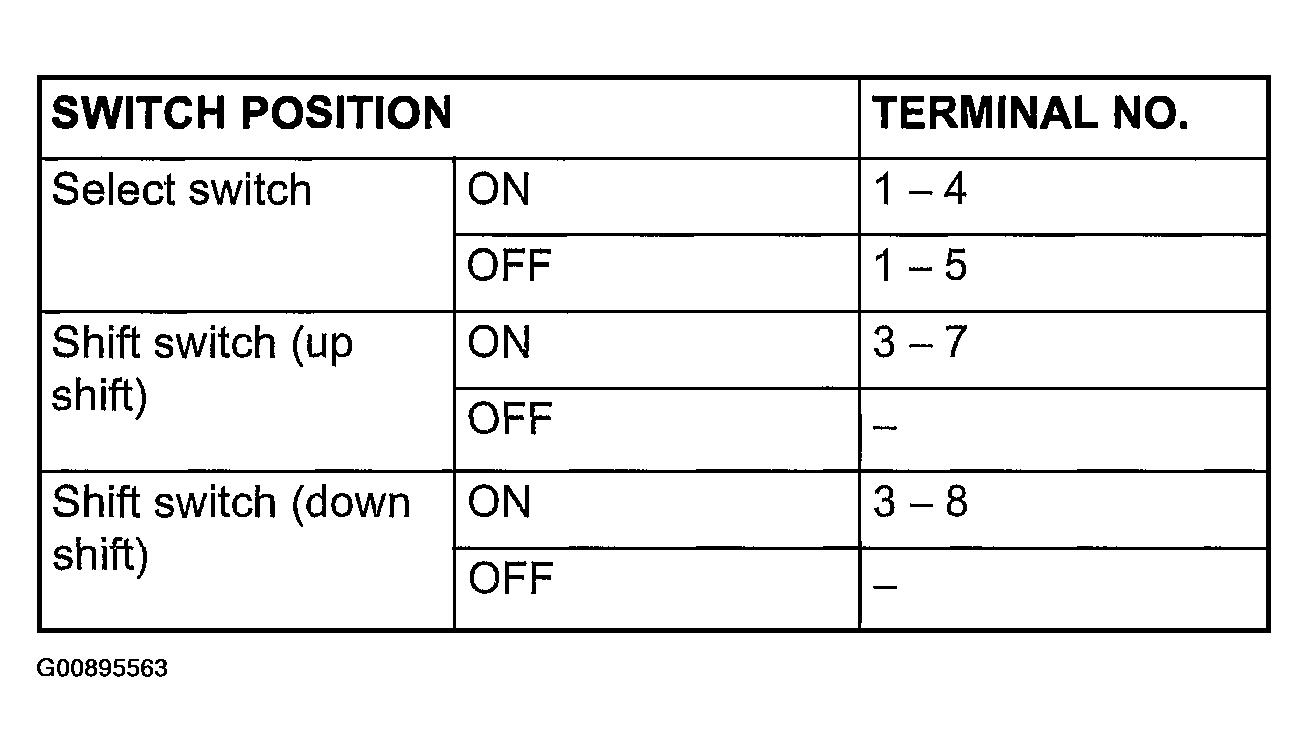

Fig 1: Shift Switch Assembly Continuity Chart
G00895563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

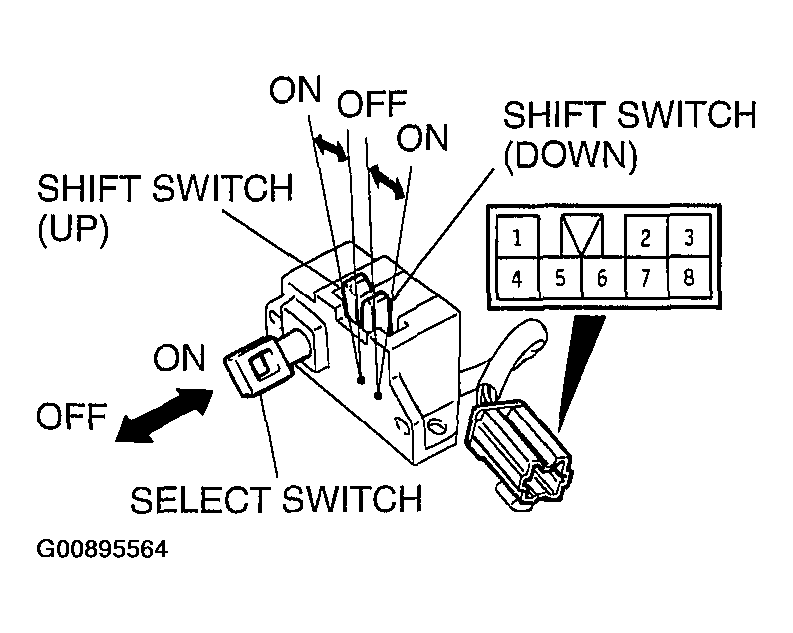

Fig 2: Inspecting Shift Switch Assembly Continuity
G00895564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
