Disassembly And Assembly: Notes

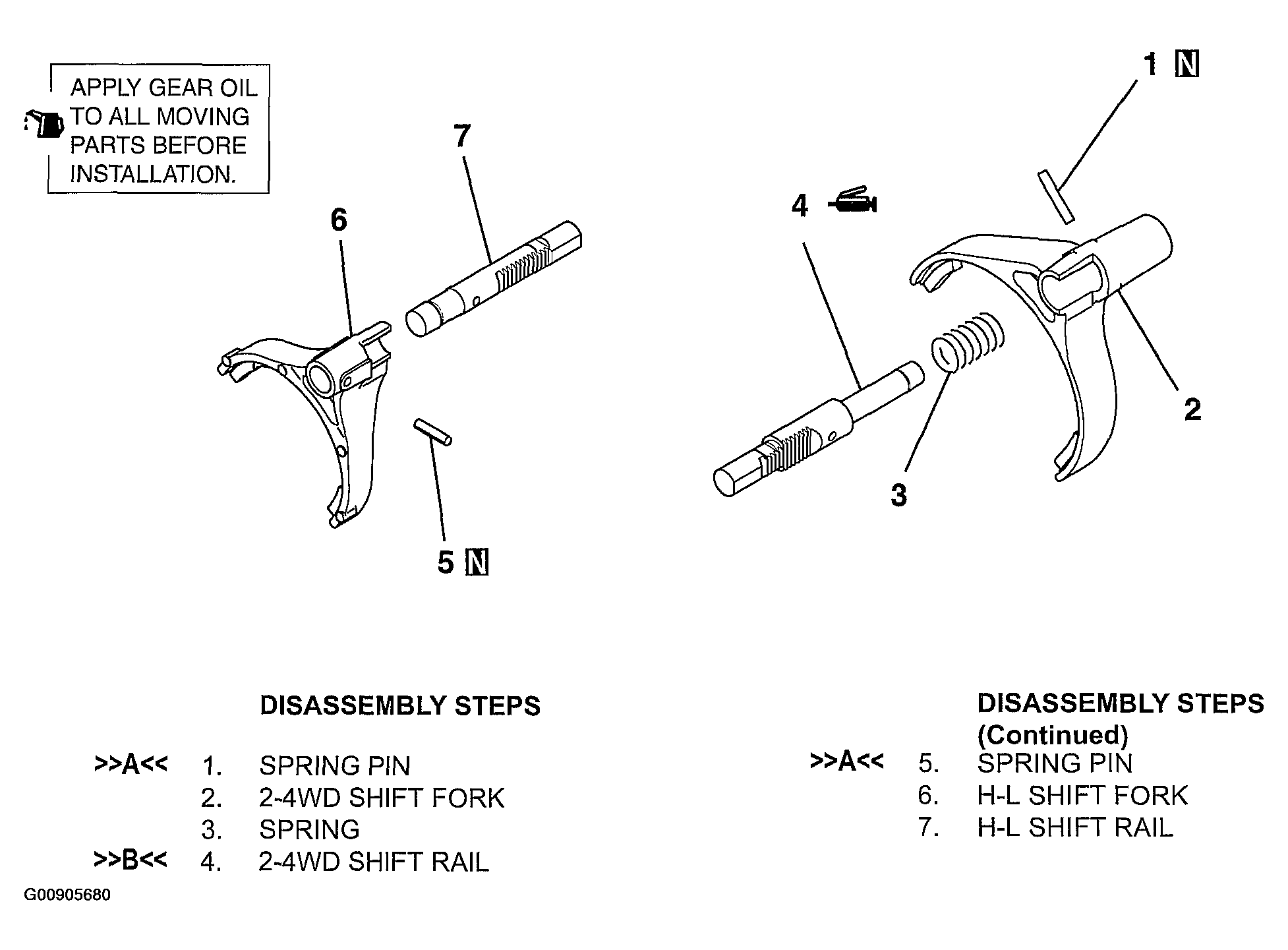

Fig 1: Identifying 2-4 Shift Rail/H-L Shift Rail Components
G00905680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
