Input Signal Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

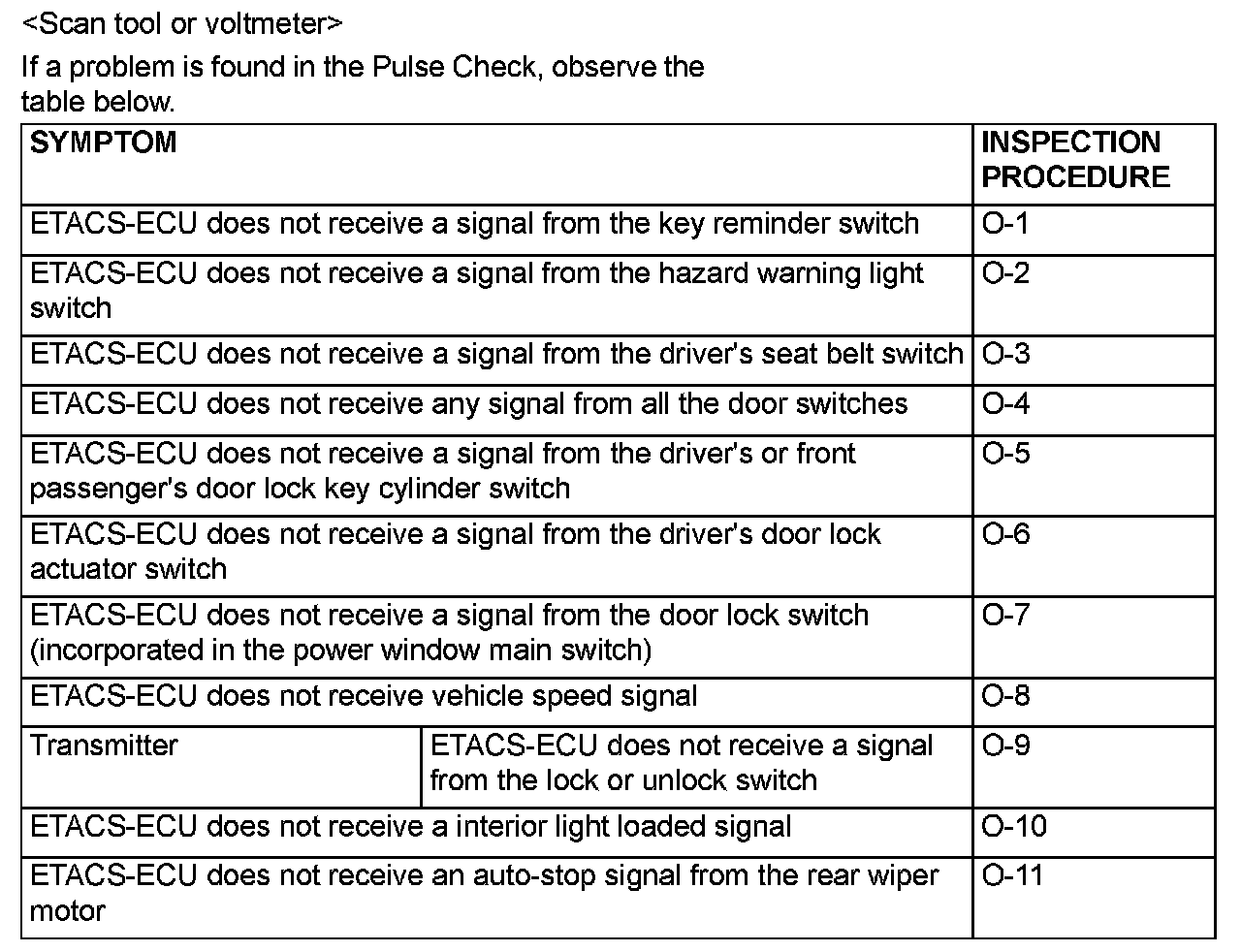

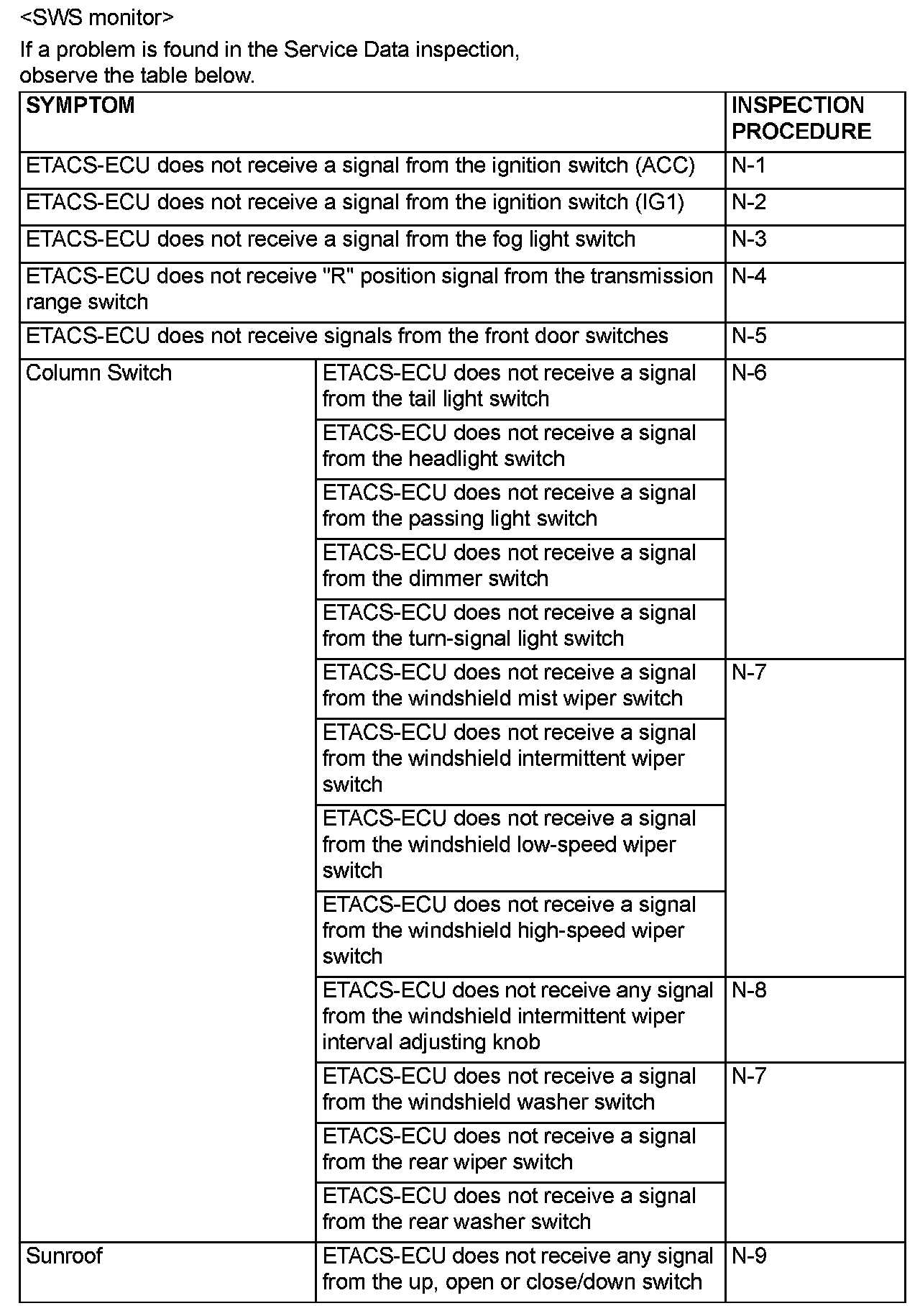

Input Signal Chart
