Exhaust Gas Recirculation: Service and Repair

Removal And Installation:

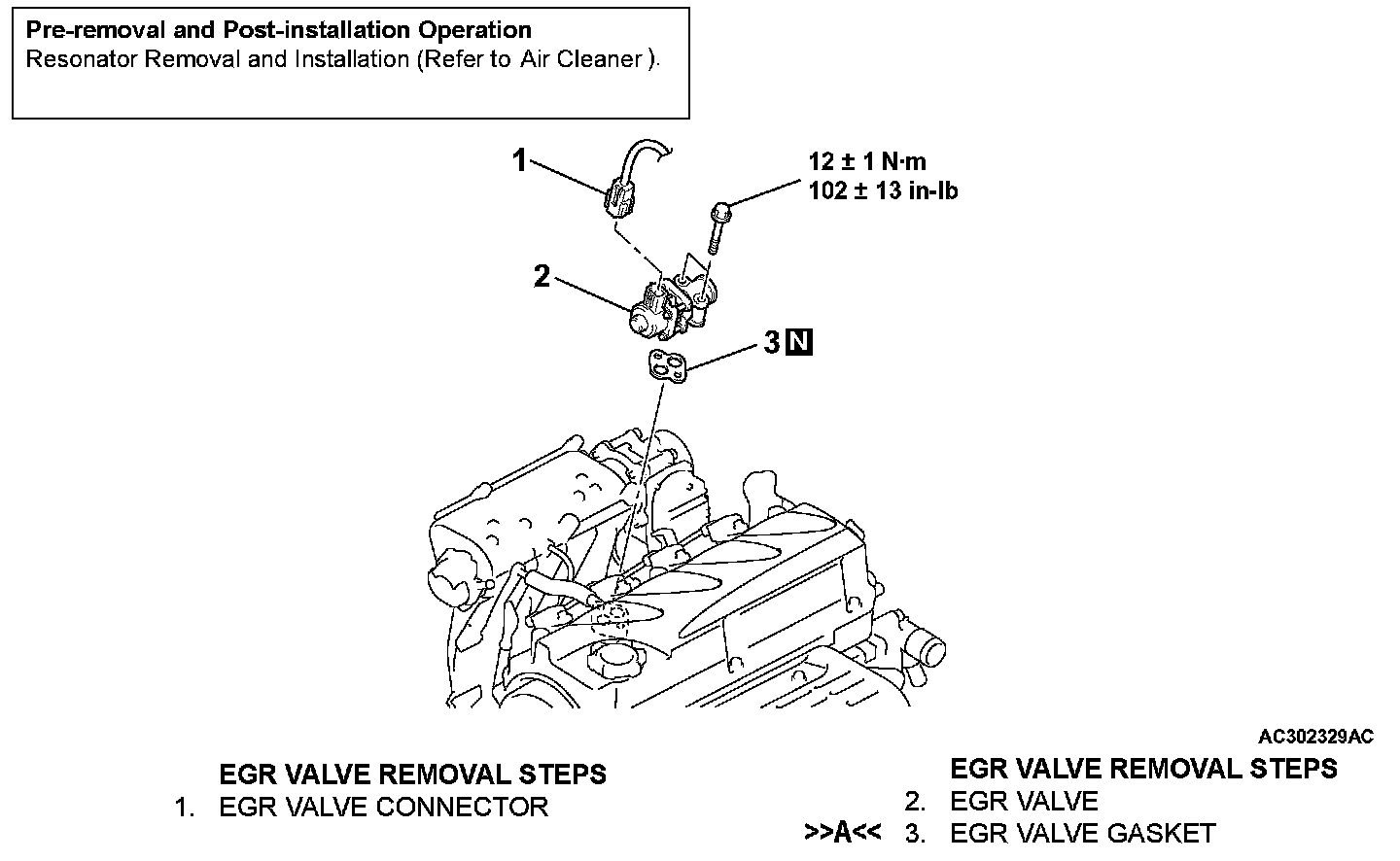

REMOVAL AND INSTALLATION






INSTALLATION SERVICE POINT

>>A<< EGR PIPE B GASKET INSTALLATION
Install the EGR valve gasket as shown in the illustration.
