System Specifications

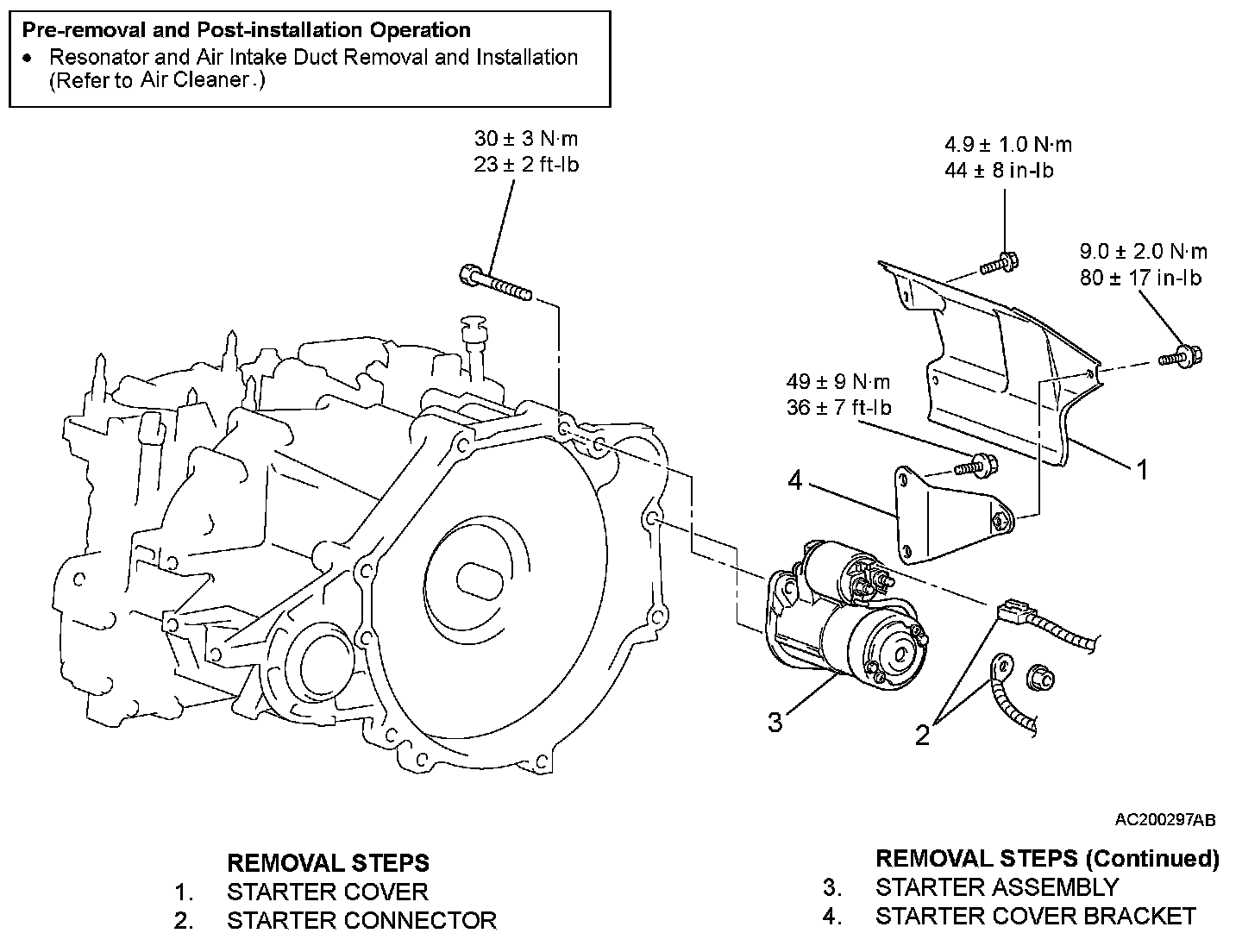

Starter Motor Assembly:

Disassembly And Assembly:

ITEM SPECIFICATION
Starter bolt 30 ± 3 Nm (23 ± 2 ft-lb)
Starter cover bolt
M5 4.9 ± 1.0 Nm (44 ± 8 in-lb)
M6 9.0 ± 2.0 Nm (80 ± 17 in-lb)

Starter cover bracket bolt 49 ± 9 Nm (36 ± 7 ft-lb)
