Inspection Procedure N-6: Column Switch: ETACS-Ecu Does Not Receive Any Signal From The Taillight Switch, The Headlight Switch, The Passing Light Switch, The Dimmer Switch, The Turn-Signal Light Switch Or Switch.: Diagnosis
NOTE:
For Special Tool identification, see SPECIAL TOOLS .
Required Special Tools:
- MB991223: Harness Set
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991911: Main Harness B
- MB991862: SWS monitor kit
- STEP 1. Use scan tool MB991958 to select "ECU COMMCHK" on the SWS monitor display.
Check the column-ECU.

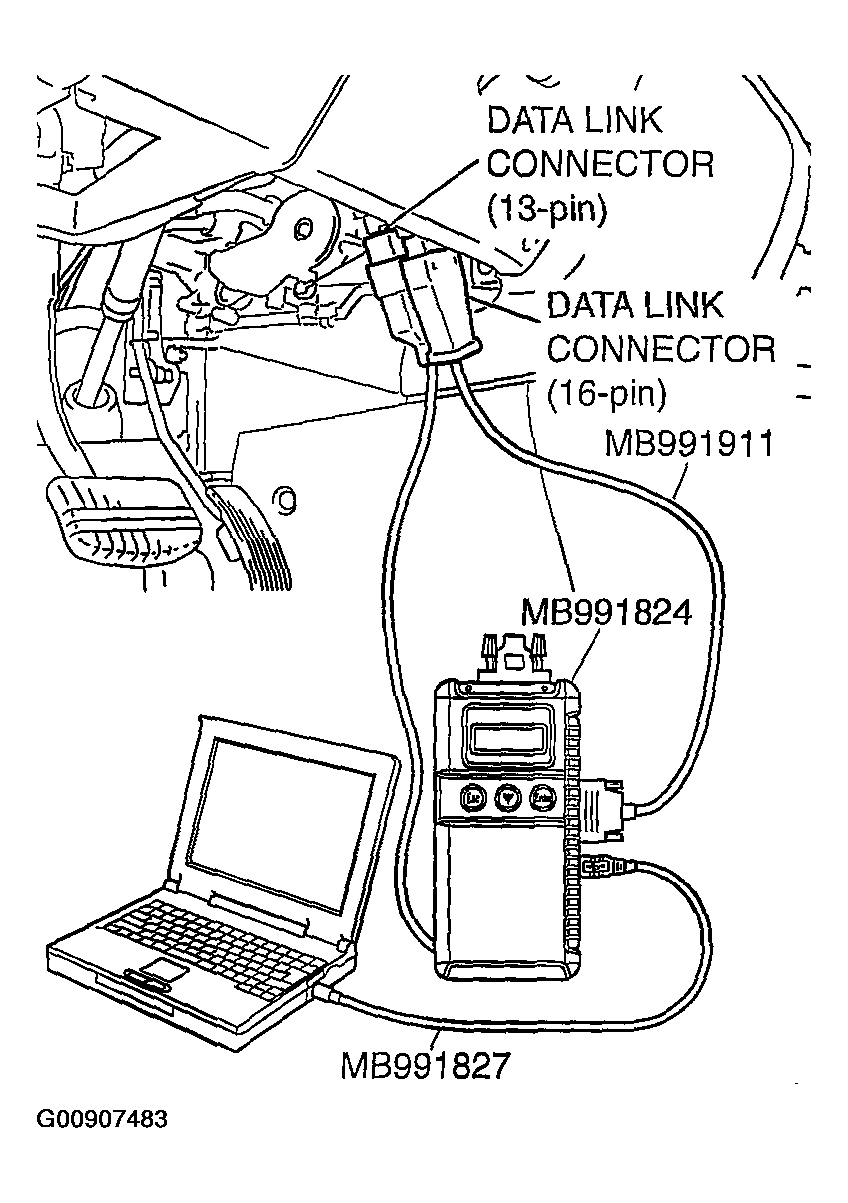

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.- Connect scan tool MB991958 to the data link connector (16-pin).
- Connect SWS monitor kit MB991862 to the data link connector (13-pin).
- Turn the ignition switch to the "LOCK" (OFF) position.
- Operate the scan tool MB991958 according to the procedure below to display "ECU COMM CHECK."
- Select "SYSTEM SELECT."
- Select "SWS."
- Select "SWS MONITOR."
- Select "ECU COMM CHK".
- Scan tool MB991958 should show "OK" on the "ECU COMM CHK" menu for the "COLUMN ECU" menu.
Q: Is "OK" displayed on the "COLUMN ECU" menu?
- YES : Go to Step 2.
- NO : Refer to INSPECTION PROCEDURE A-2 "COMMUNICATION WITH COLUMN SWITCH (COLUMN-ECU) IS NOT POSSIBLE ."
- STEP 2. Replace the ECU.
- Replace the column switch (lighting and turn-signal light switch).
- If the functions, which are described in "CIRCUIT OPERATION ", work normally, the input signal from the column switch (lighting and turn-signal light switch) should be normal.
Q: Does the column switch (lighting and turn-signal light switch) send normal signal to the ECU?
- YES : No action is necessary and testing is complete.
- NO : Replace the ETACS-ECU. If the functions, which are described in "CIRCUIT OPERATION ", work normally, the input signal from the column switch (lighting and turn-signal light switch) should be normal.
