INSPECTION PROCEDURE 1: There Is No Display.: Notes

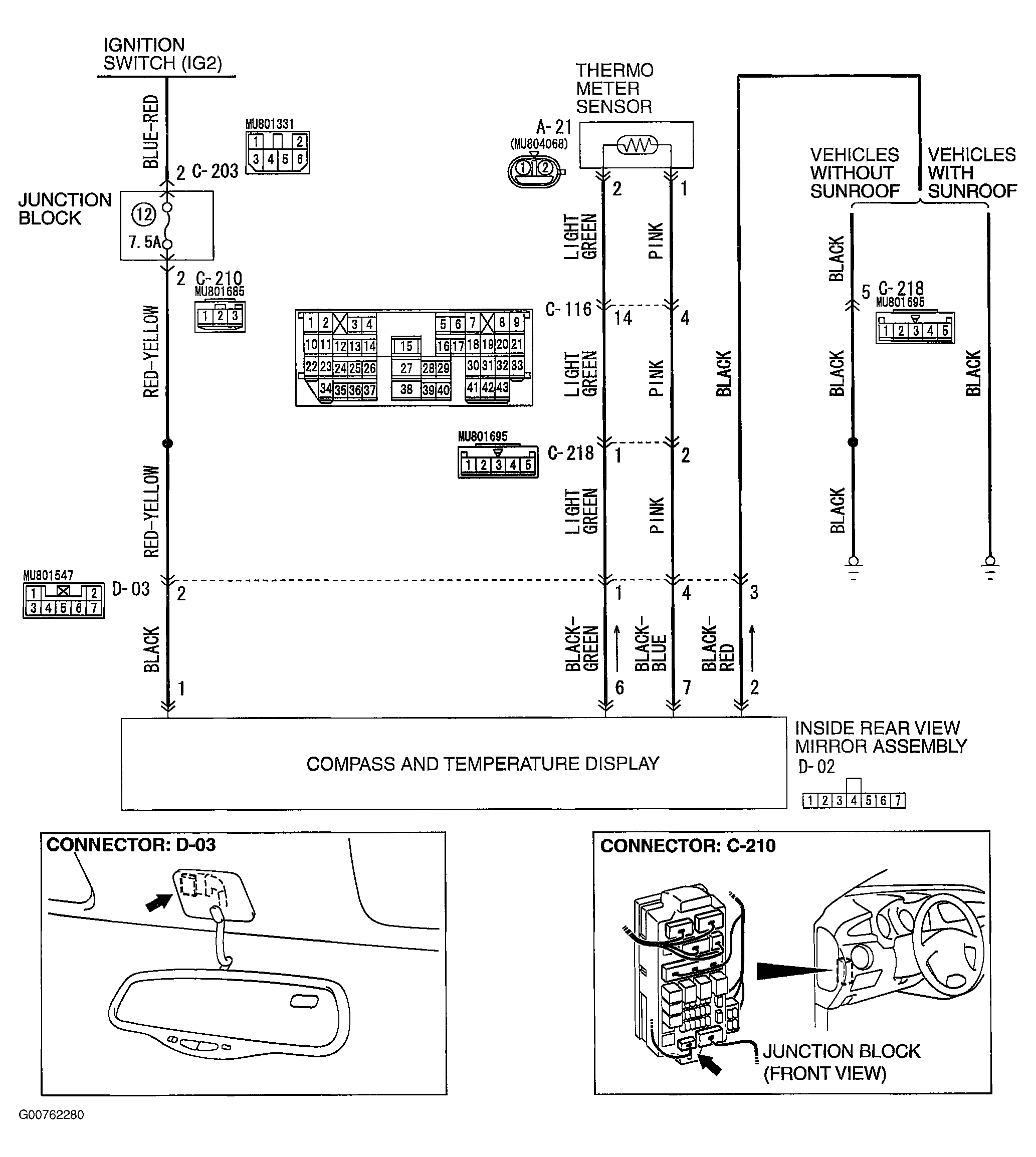

Fig 1: Ambient Air Temperature Meter and Electronic Compass Circuits
G00762280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

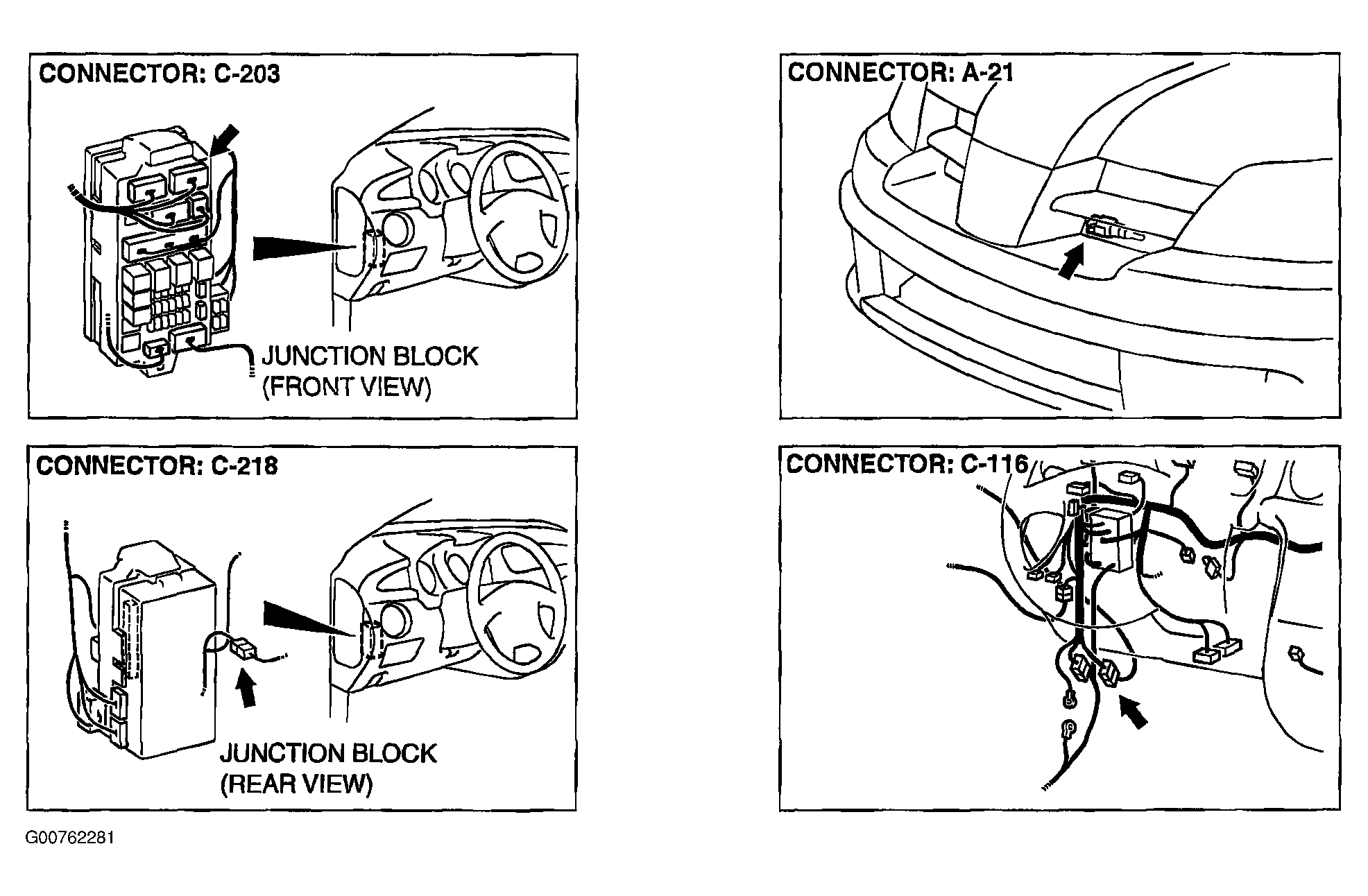

Fig 2: Identifying Connectors
G00762281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
