INSPECTION PROCEDURE 1: Communication between Scan Tool and the ABS-ECU is not possible.: Notes

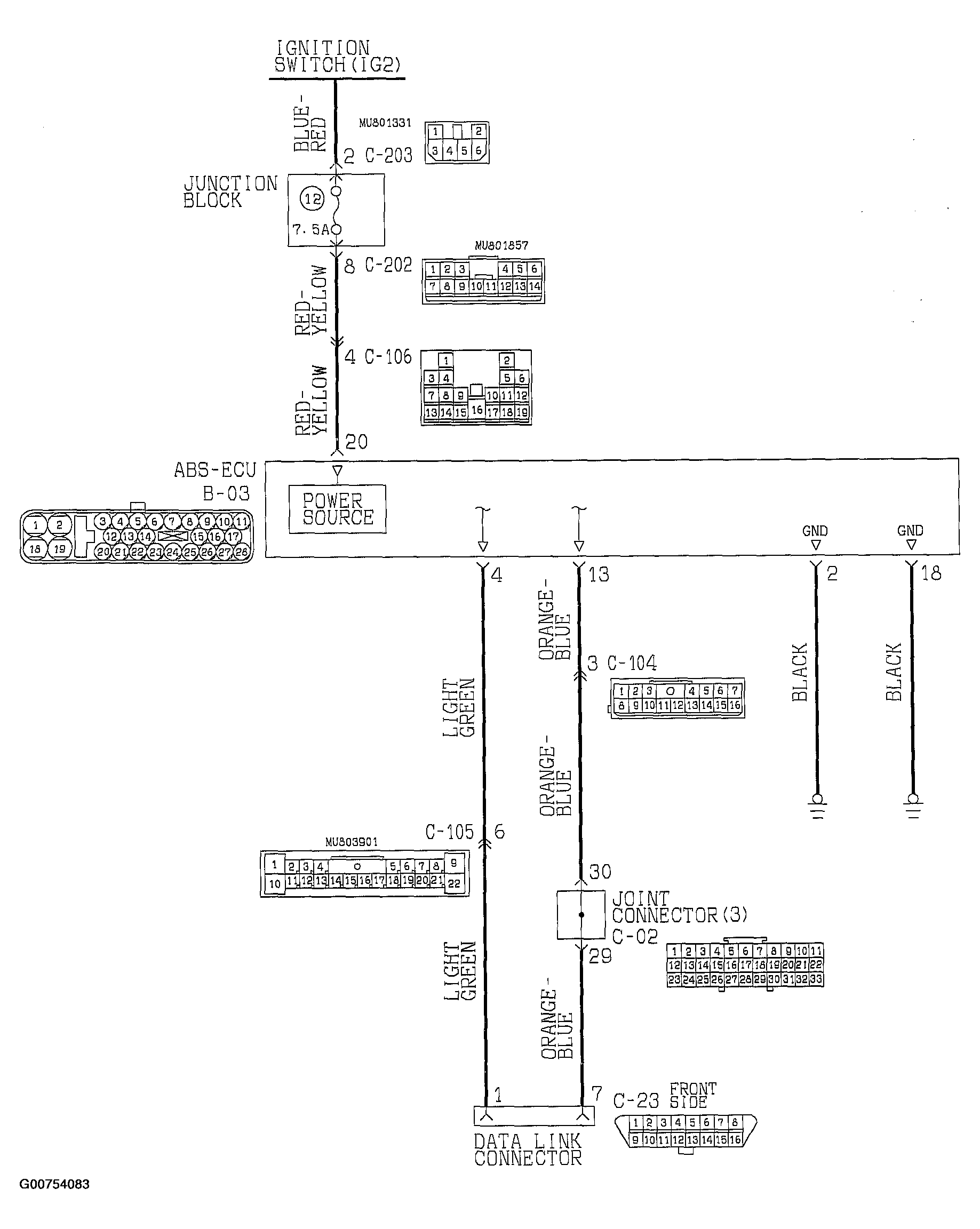

Fig 1: Identifying Data Link Connector Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

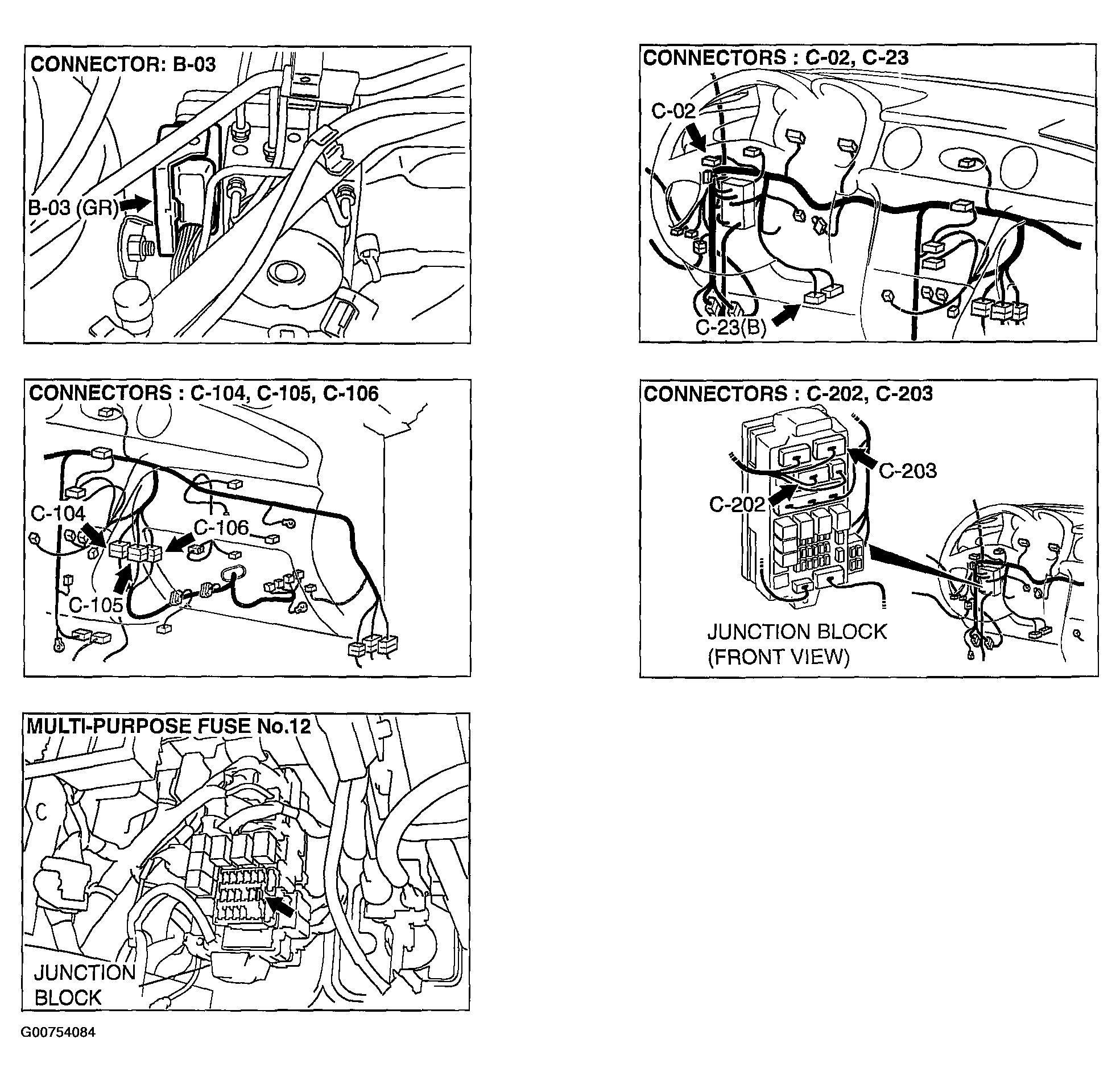

Fig 2: Identifying Connectors B-03, C-02, C-23, C-104, C-105, C-106, C-202, C-203 & Multipurpose Fuse No. 12

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
