>> B << Hub Installation/Hub Starting Torque Check

  1. Tighten special tools MB991000 (MB990998) and MB991017 to the specified torque, and then press-in the hub into the knuckle.
  2. Rotate the hub in order to seat the bearing.

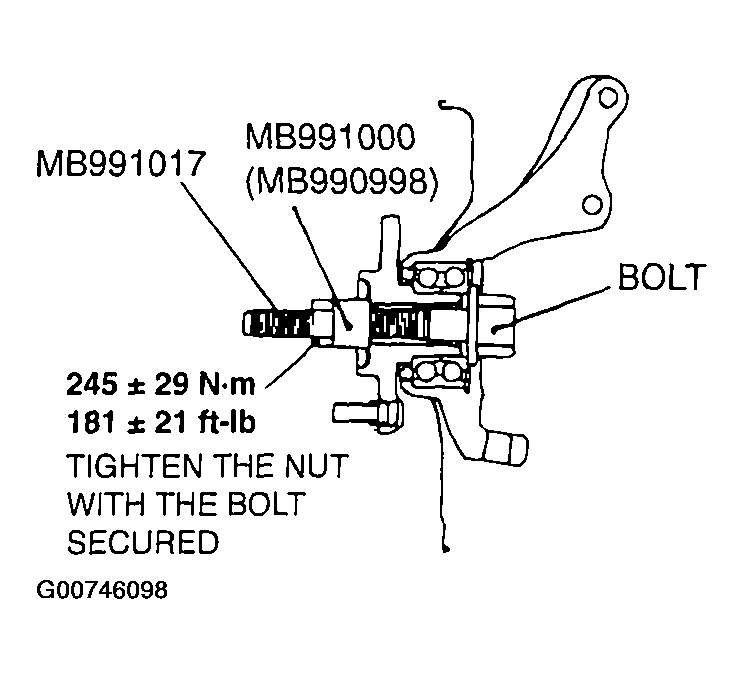

    Fig 1: Installing Hub
    G00746098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Measure the hub starting torque by using the special tools MB990326 and MB990685.

    Limit: 1.8 N.m (16 in-lb)

  4. The starting torque must be within the limit and the hub rotation must be smooth.

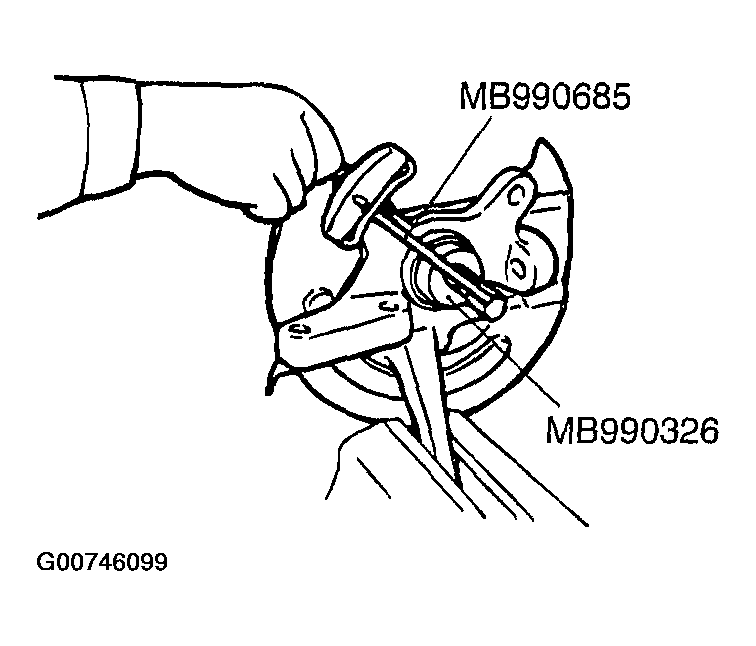

    Fig 2: Measuring Hub Starting Torque Using Special Tools MB990326 And MB990685
    G00746099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
