Fan Control Module

  1. Disconnect the fan control module connector. See Fig 1 .
  2. Turn the ignition switch to the ON position. Check for battery voltage between terminals No. 1 and 3. See Fig 1 .
  3. Reconnect the fan control module connector and disconnect the condenser fan motor connector. See Fig 2 .
  4. Ensure that the A/C is OFF, and start the engine and run it at idle.
  5. Measure voltage between the fan control module (side connector) terminals. Voltage should be one volt or less.
    6. CAUTION: Stay clear of the fan when starts running.
  6. Turn the A/C switch to the ON position.
  7. Measure the voltage between the fan control module (side connector) terminals while the fan is running. The voltage should switch between 5.6-10.8 volts and battery voltage plus or minus 2.6 volts.
  8. If the voltage is not as specified, replace the fan control module.

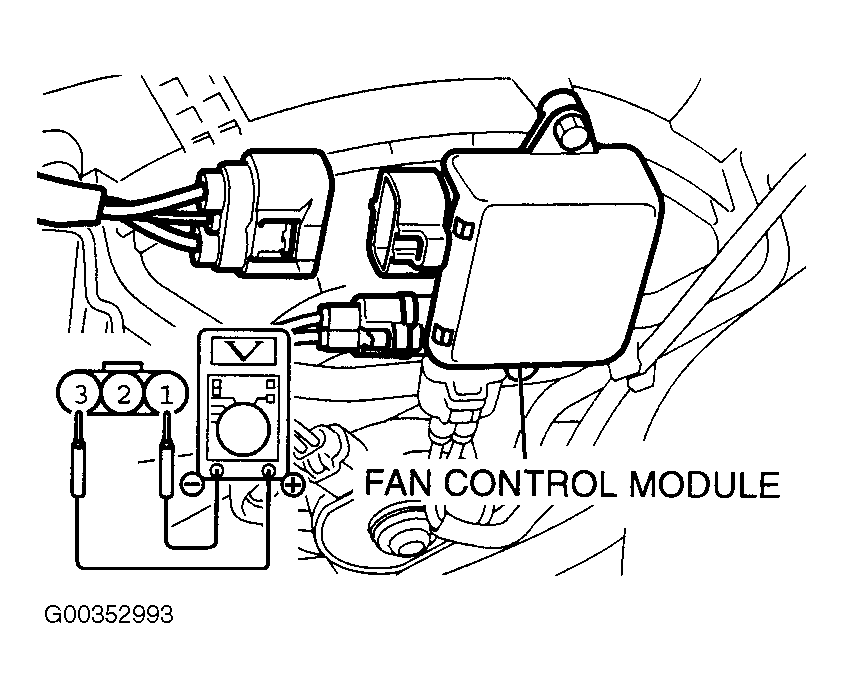

Fig 1: Testing Fan Control Module (1 Of 2)
G00352993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

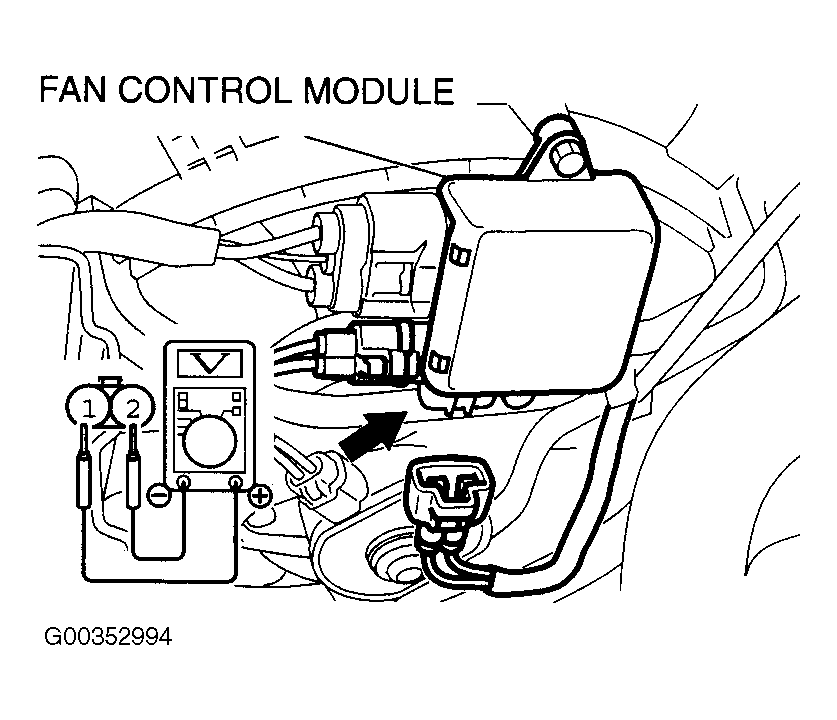

Fig 2: Testing Fan Control Module (2 Of 2)
G00352994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
