Auto-Cruise Control System
>>
Auto-Cruise Control System Diagnosis
>>
Symptom Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Chart

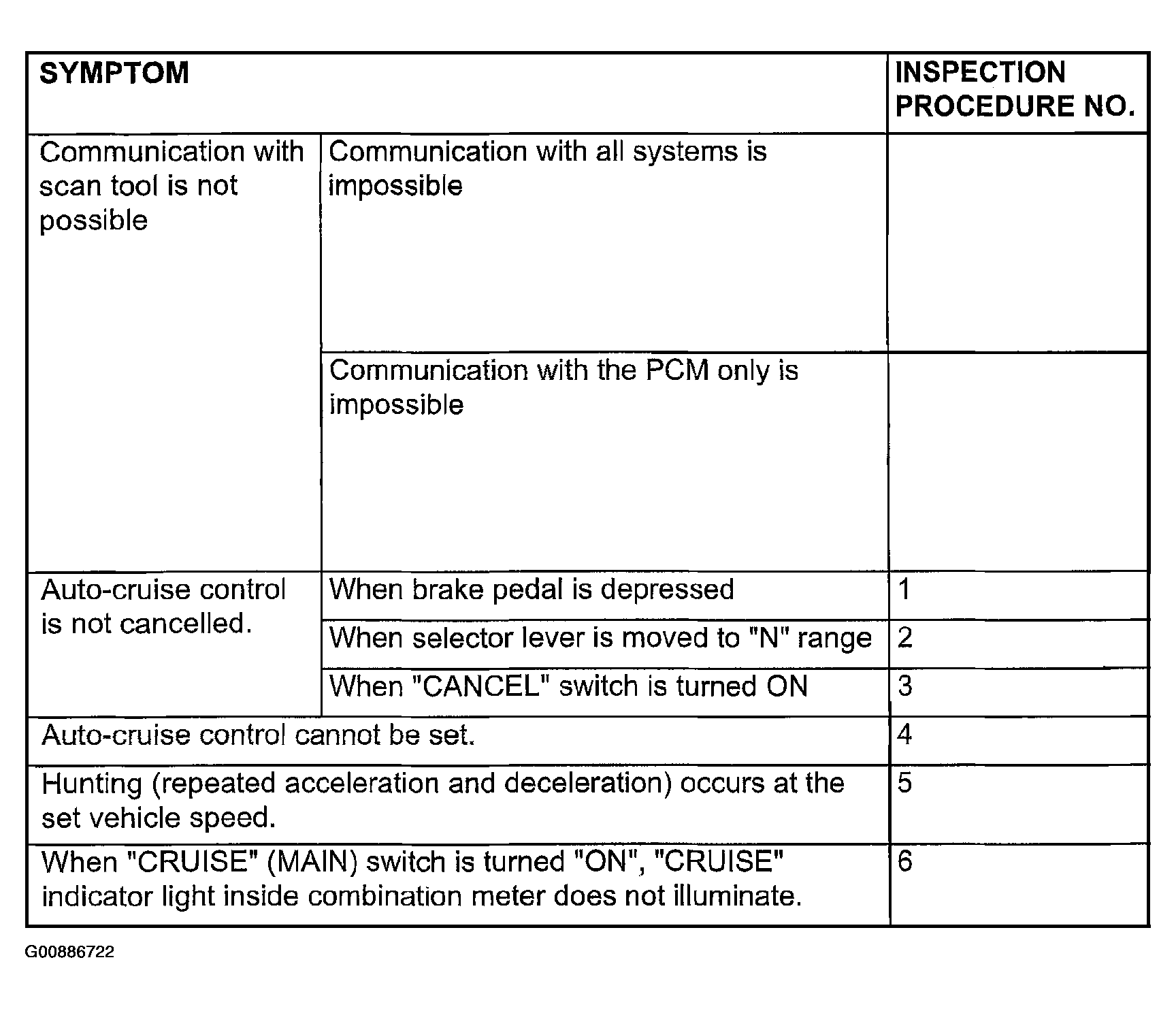

Fig 1: Identifying Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
