Removal And Installation

WARNING: Before removal of the air bag module, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

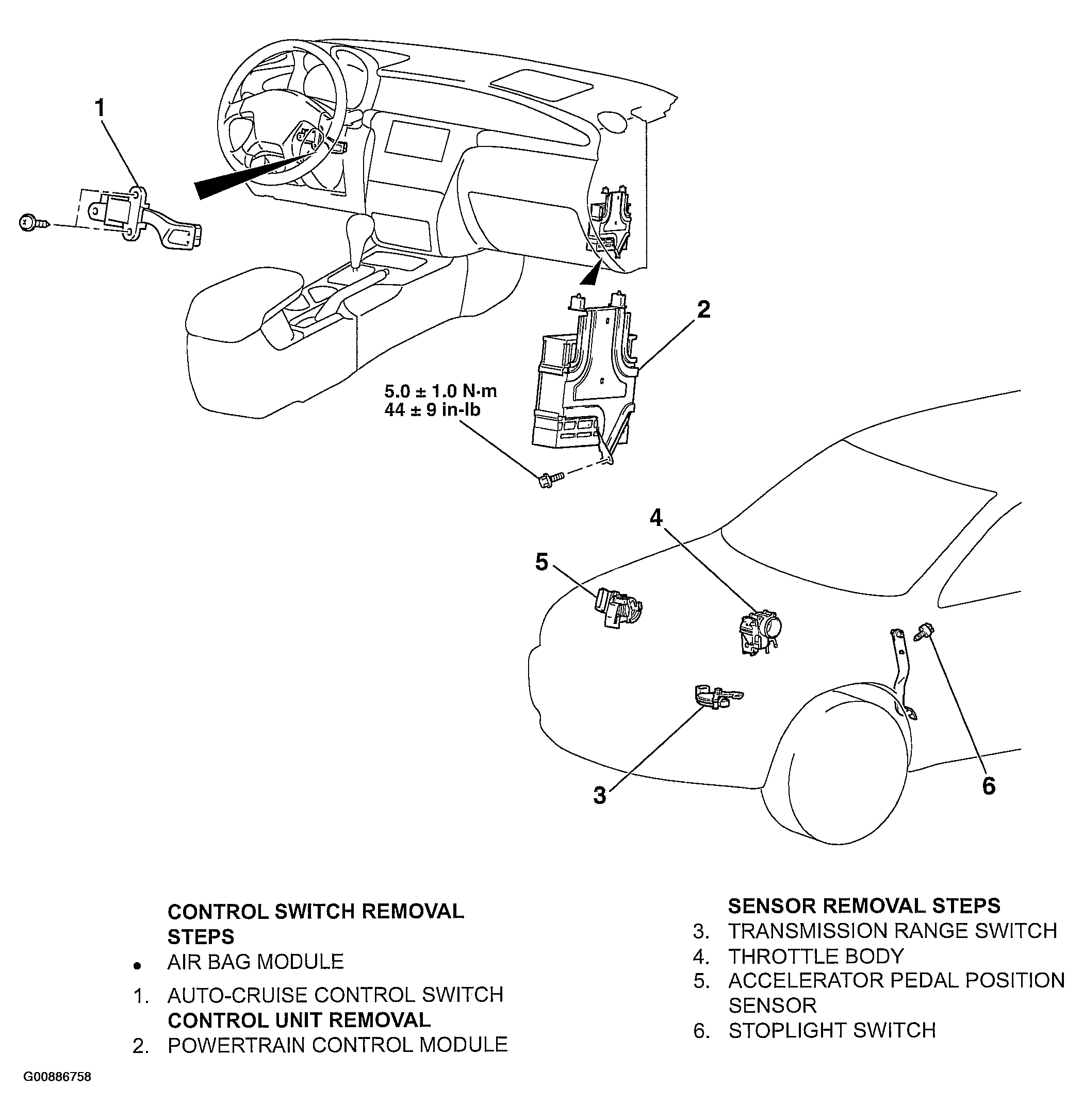

Fig 1: Identifying Auto-Cruise Control Components Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
