Power Window Relay Check

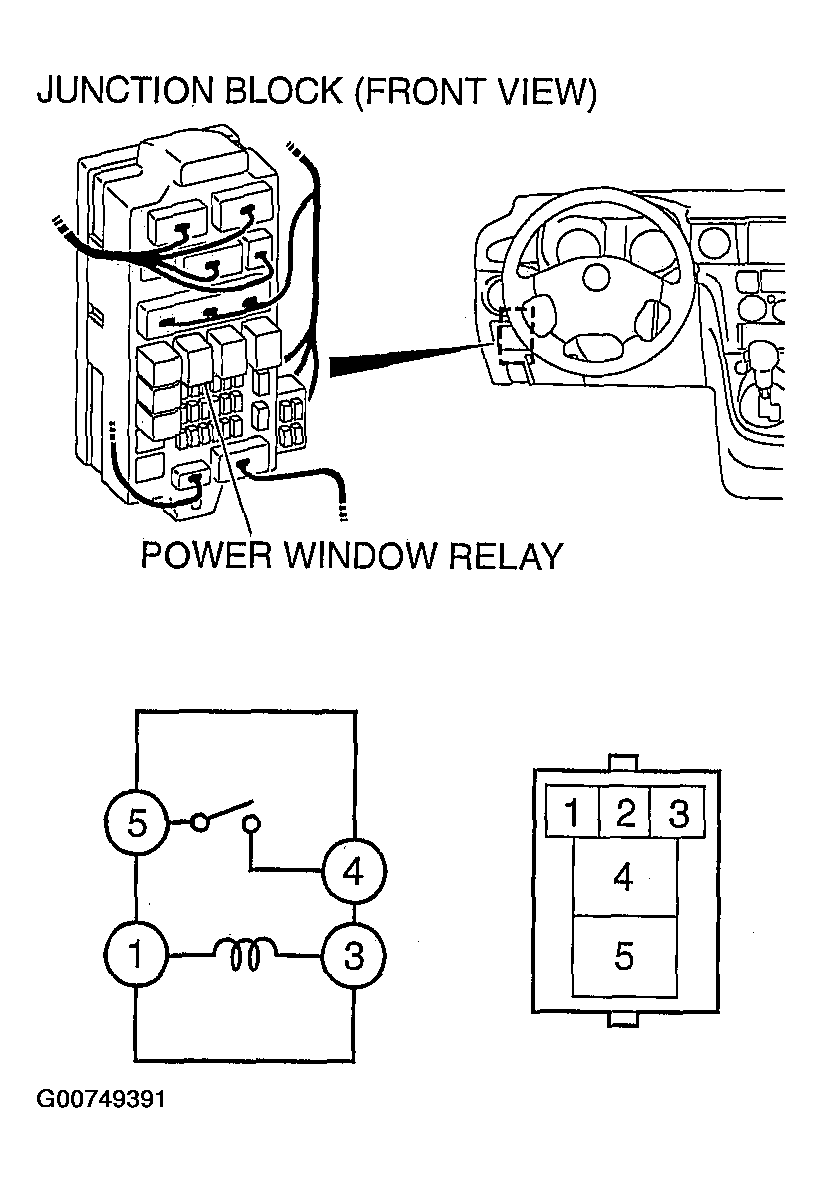

Fig 1: Checking Power Window Relay
G00749391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

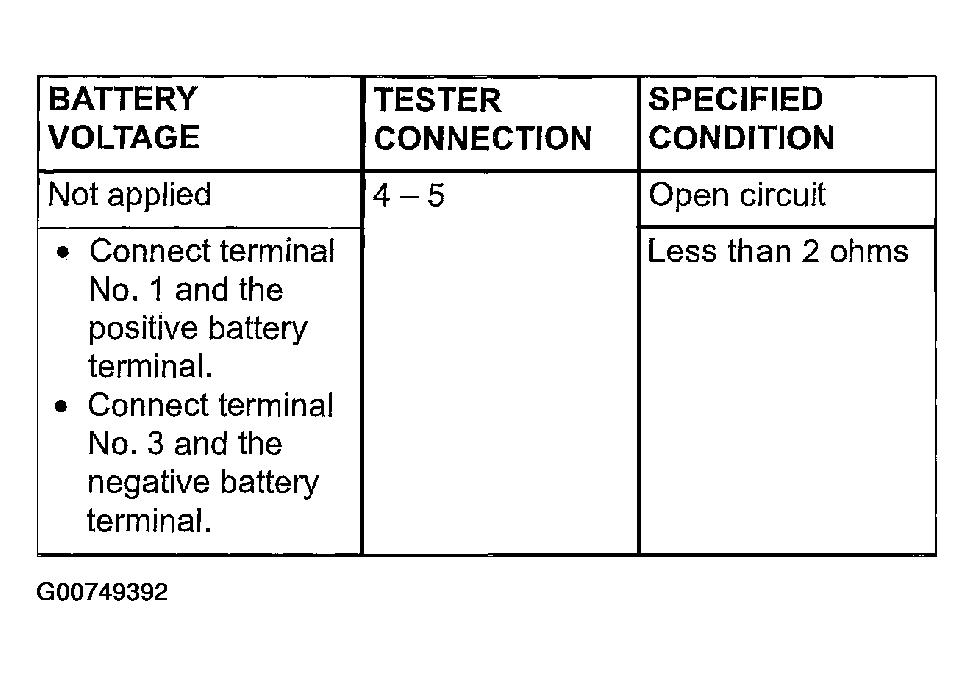

Fig 2: Battery Voltage Specification Table
G00749392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
