>> E << CIRCLIP Installation

CAUTION: Insert the circlip to the rack stopper hole while turning the rack stopper clockwise.

Insert the circlip to the rack stopper hole through cylinder hole. Turn the rack stopper clockwise and insert the circlip firmly.

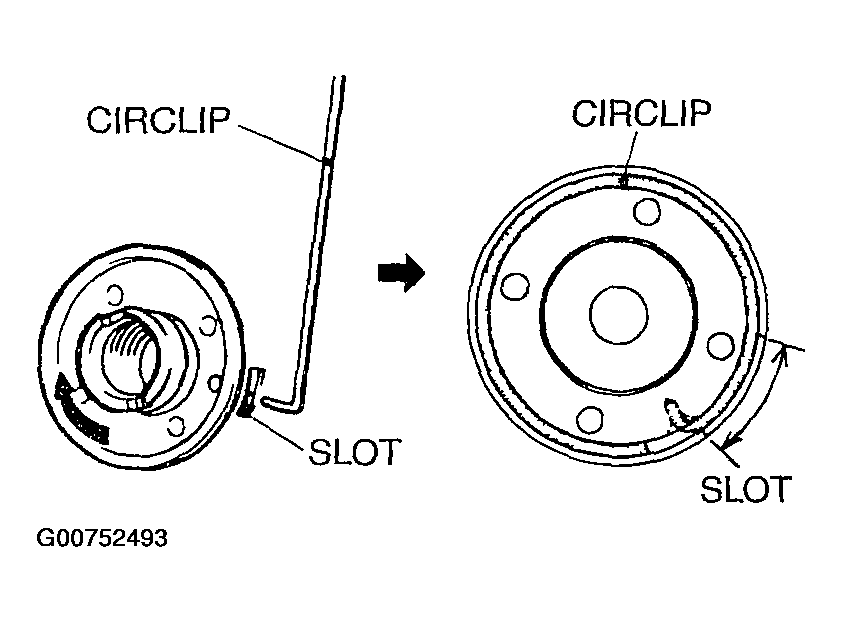

Fig 1: Inserting Circlip To Rack Stopper Hole While Turning Rack Stopper Clockwise
G00752493Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
