Removal And Installation: Notes

WARNING: Before removing the steering gear, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

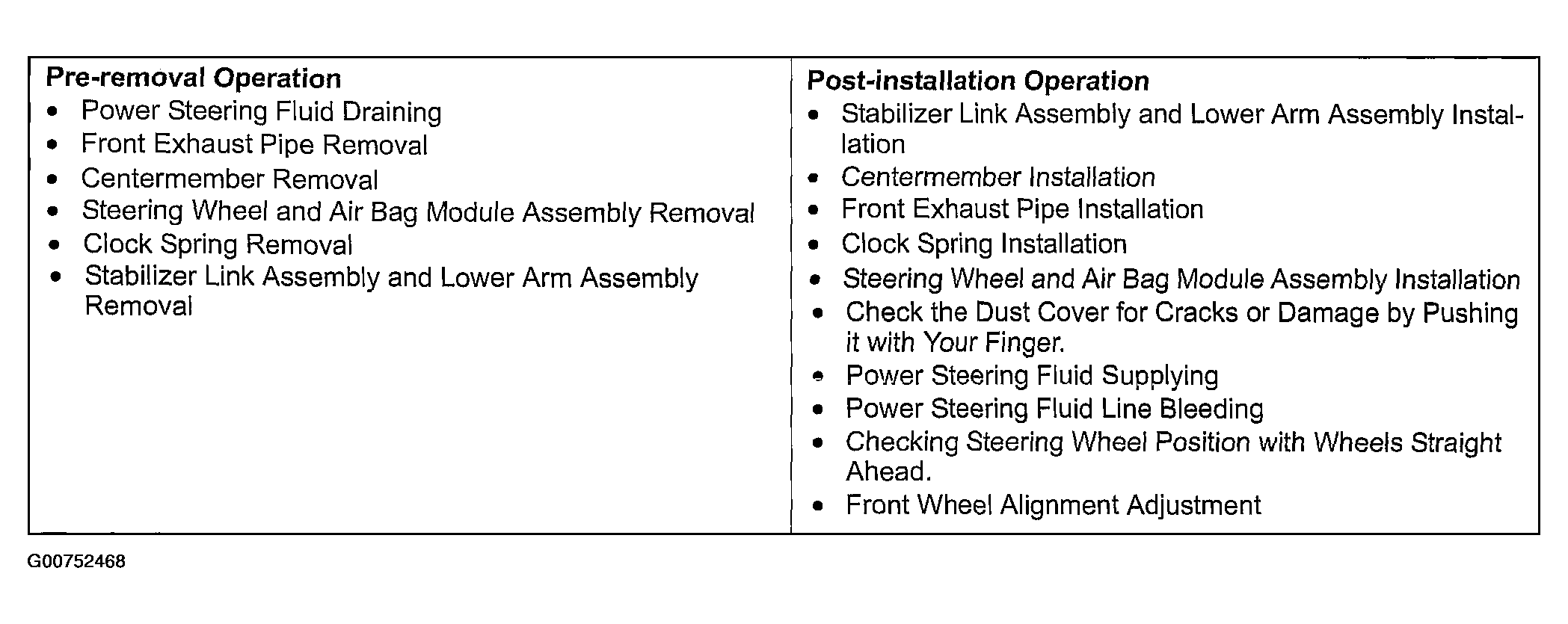

Fig 1: Power Steering Gear Box And Linkage Pre-Removal Operation And Post Installation Operation
G00752468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

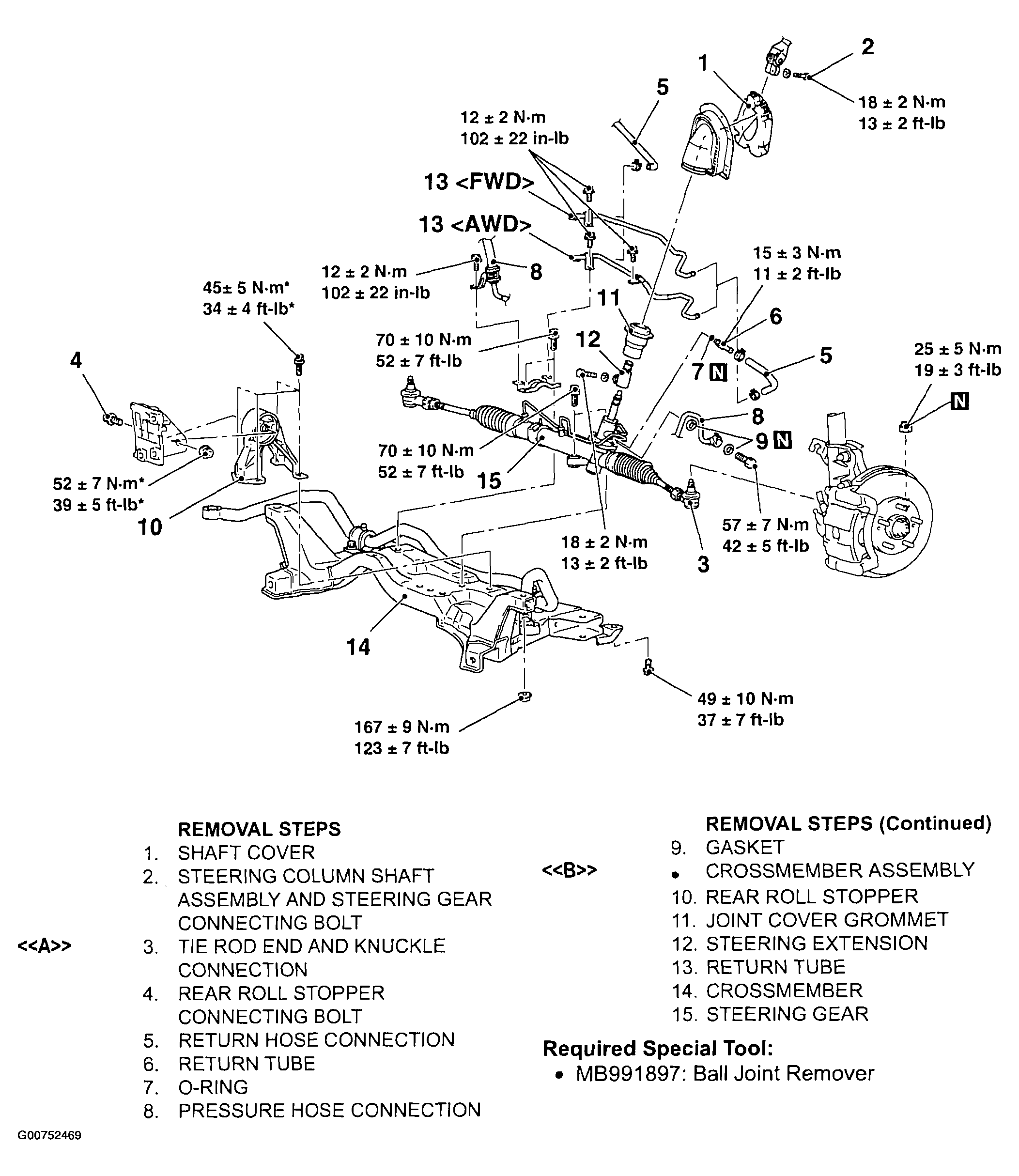

Fig 2: Removal And Installation - Power Steering Gear Box And Linkage
G00752469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
