Home >> Mitsubishi >> 2004 >> Outlander LS, AWD >> Repair and Diagnosis >> Steering >> Steering Column >> Power Steering Oil Pump Assembly >> Disassembly And Assembly >> Assembly Service Points >> >> A << O-Ring Installation
April 5, 2026: LEMON Manuals is launched! Read the announcement.

>> A << O-Ring Installation

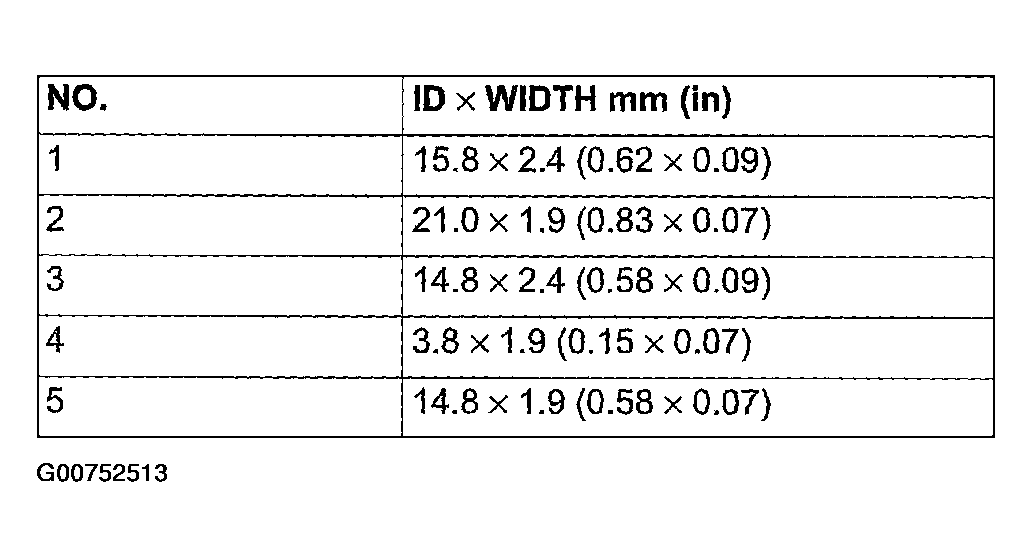

Fig 1: Identifying Suction Connector Plug Assembly Width Table
G00752513Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

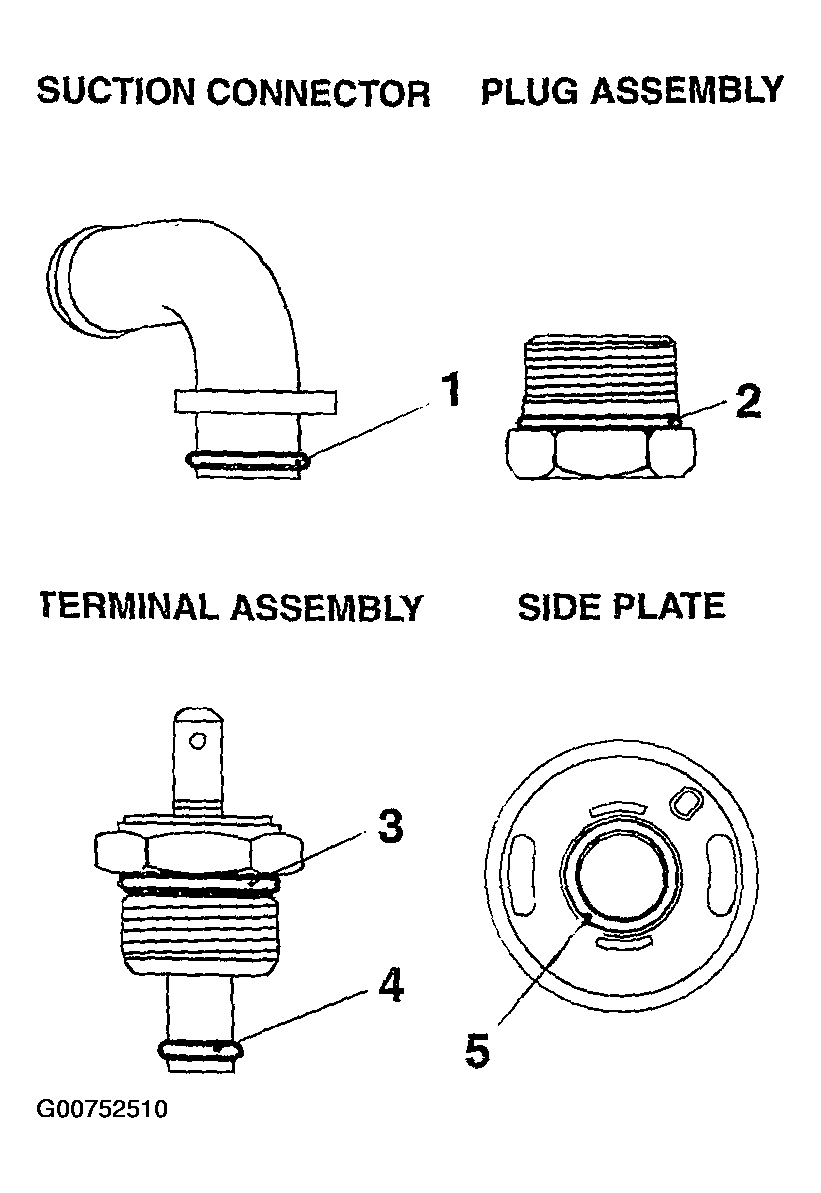

Fig 2: Identifying Suction Connector And Terminal Assembly
G00752510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
