Removal And Installation: Notes

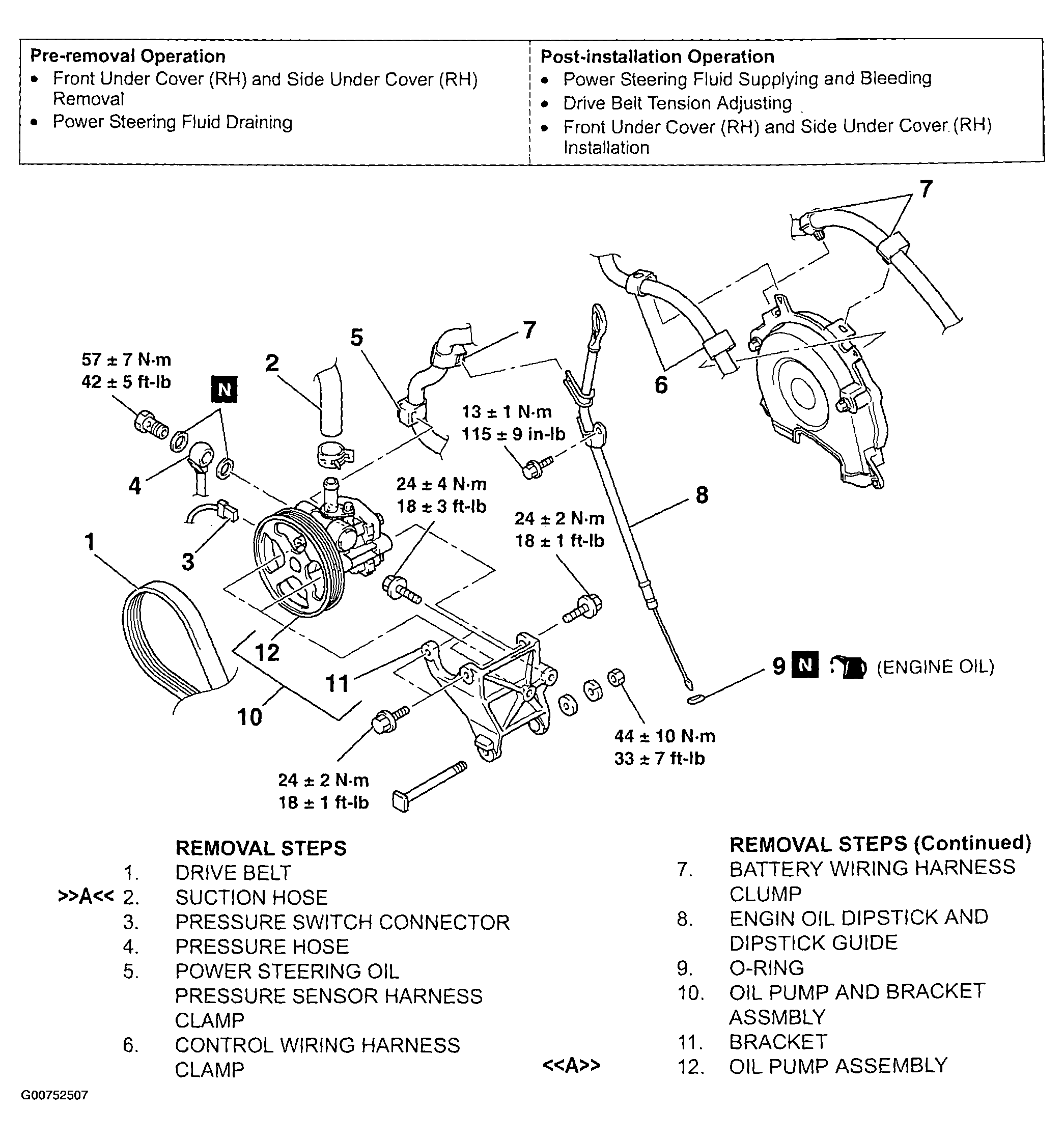

Fig 1: Removal And Installation - Power Steering Oil Pump Assembly
G00752507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
