Removal And Installation: Notes

WARNING: Before removing the steering wheel and air bag module assembly, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

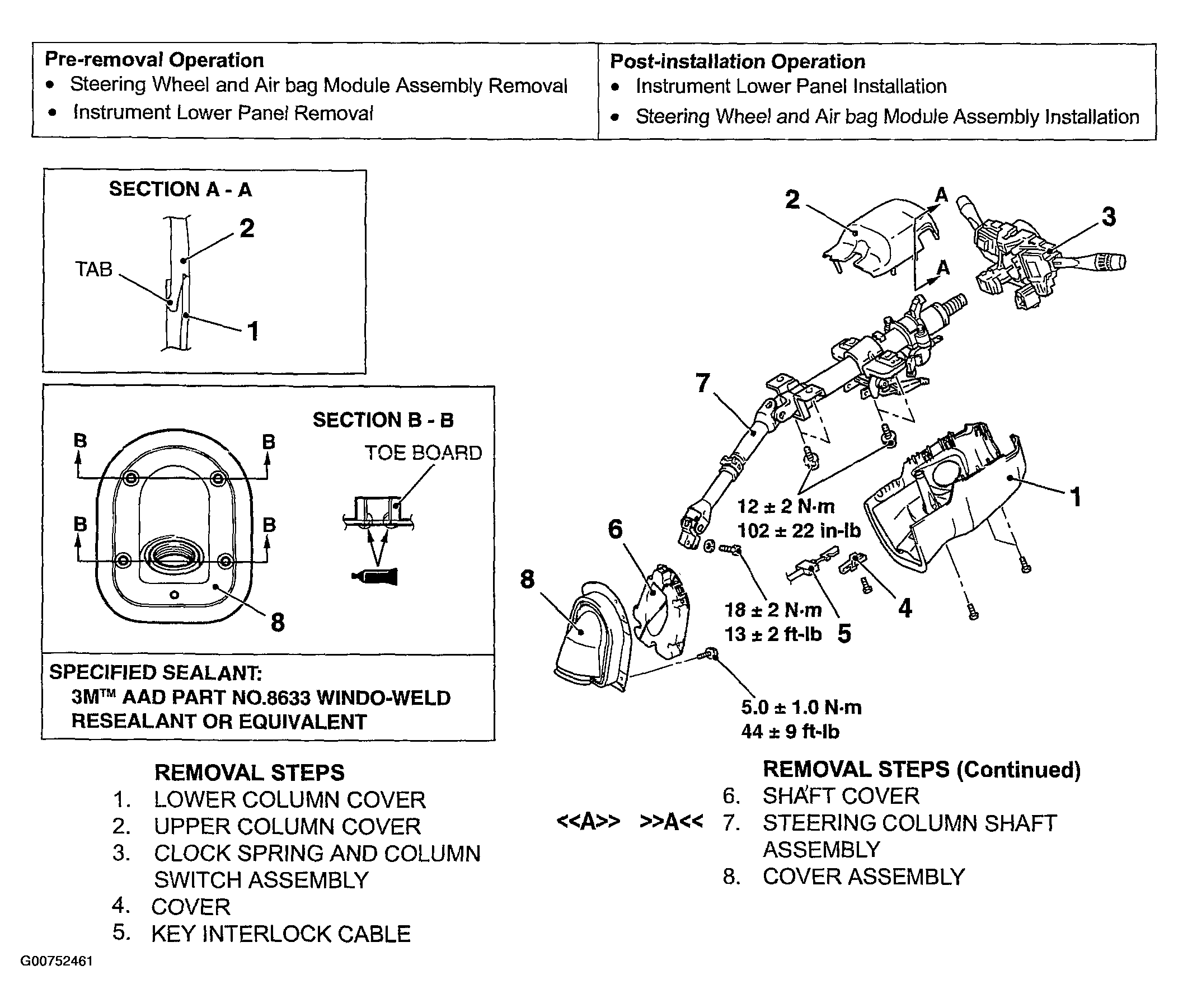

Fig 1: Removal And Installation - Steering Gear Shaft Assembly
G00752461Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
