Transmission Range Switch And Control Cable Adjustment

Set the selector lever to the "N" position.
Loosen the control cable to the manual control lever coupling nut to free the cable and lever.

Fig 1: Loosening Control Cable To Manual Control Lever Coupling Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the manual control lever to the neutral position.
Loosen the transmission range switch body mounting bolts and turn the transmission range switch body so the hole in the end of the manual control lever and the hole (section A - A in the figure on the left) in the flange of the transmission range switch body flange are aligned.
NOTE: The transmission range switch body can be aligned by inserting a 5-mm diameter steel bar into the end hole of the manual control lever and the flange hole of the transmission range switch body.

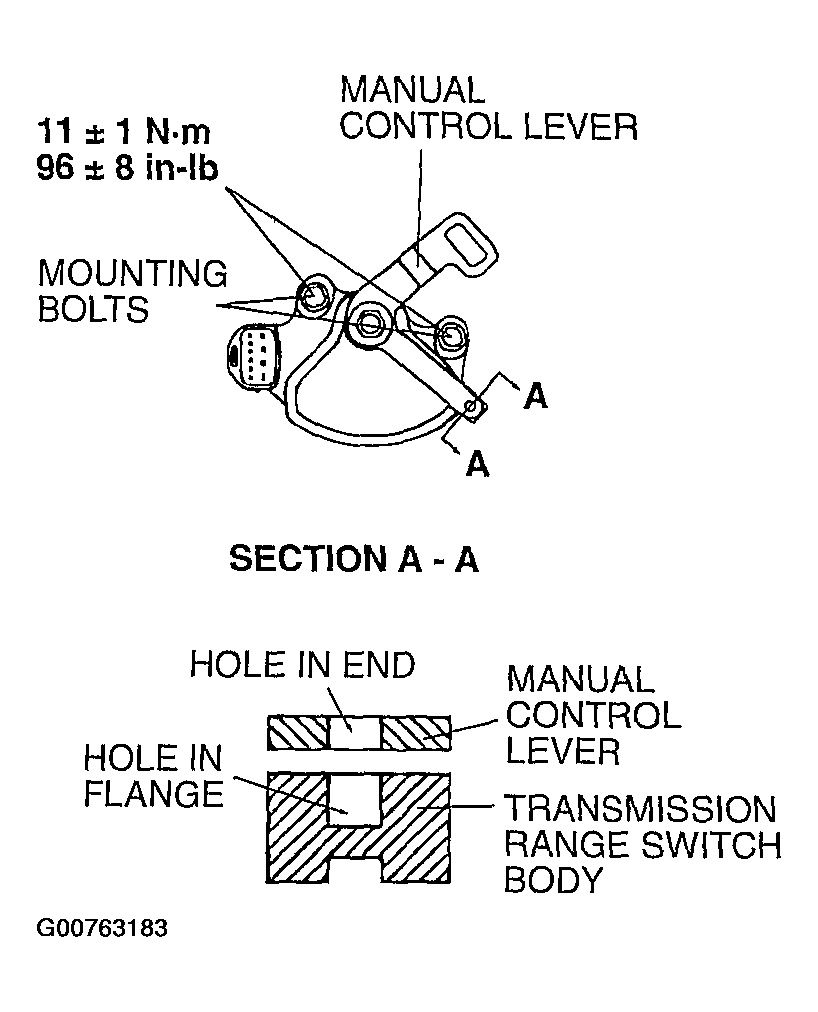

Fig 2: Loosening Transmission Range Switch Body Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the transmission range switch body mounting bolts to the specified torque. Be careful at this time that the switch body does not move.
Tightening torque: 11 +/- 1 N.m (96 +/- 8 in-lb)
Gently push the transaxle control cable in the direction of the arrow, until the cable is taut. Tighten the adjusting nut.
Tightening torque: 12 +/- 2 N.m (102 +/- 22 in-lb)

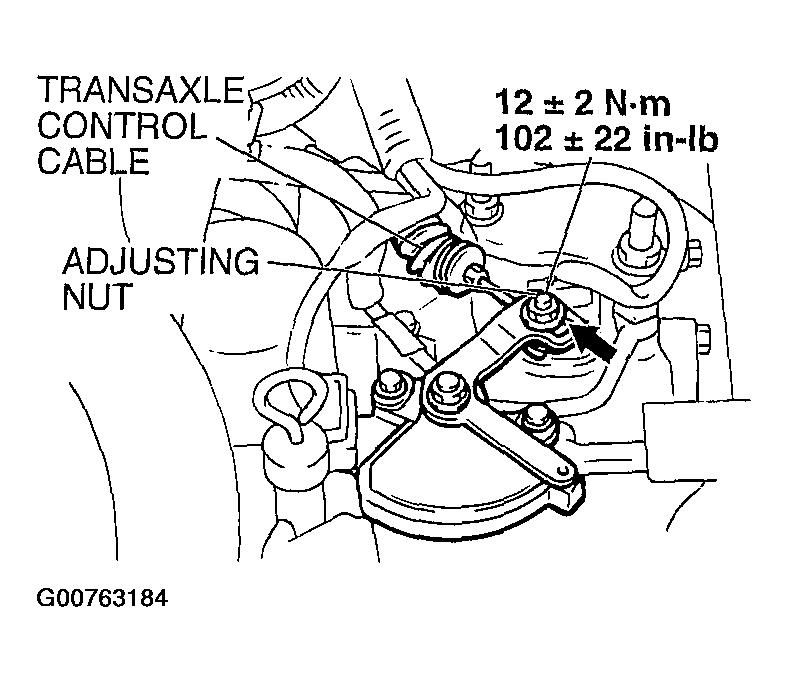

Fig 3: Pushing Transaxle Control Cable
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that the selector lever is in the "N" position.
Check that each position of the manual control lever matches each position of the selector lever using scan tool MB991958(MUT-III sub assembly).
