Disassembly And Assembly: Notes

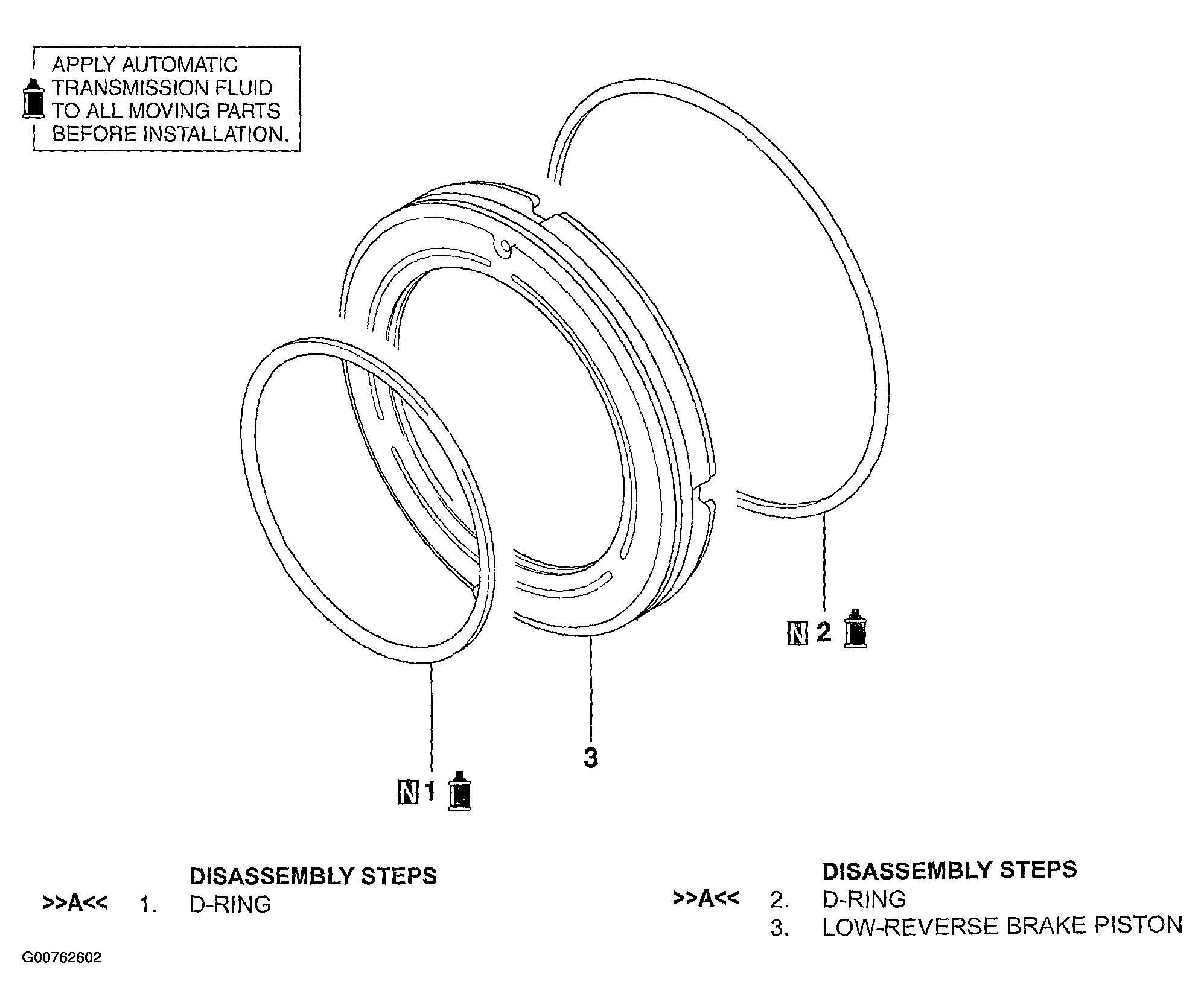

Fig 1: Disassembling Low-Reverse Brake
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
