Automatic Trans: Diagnosis: General Description: Notes
The A/T come in two models, namely, F4A42 and F4A51.

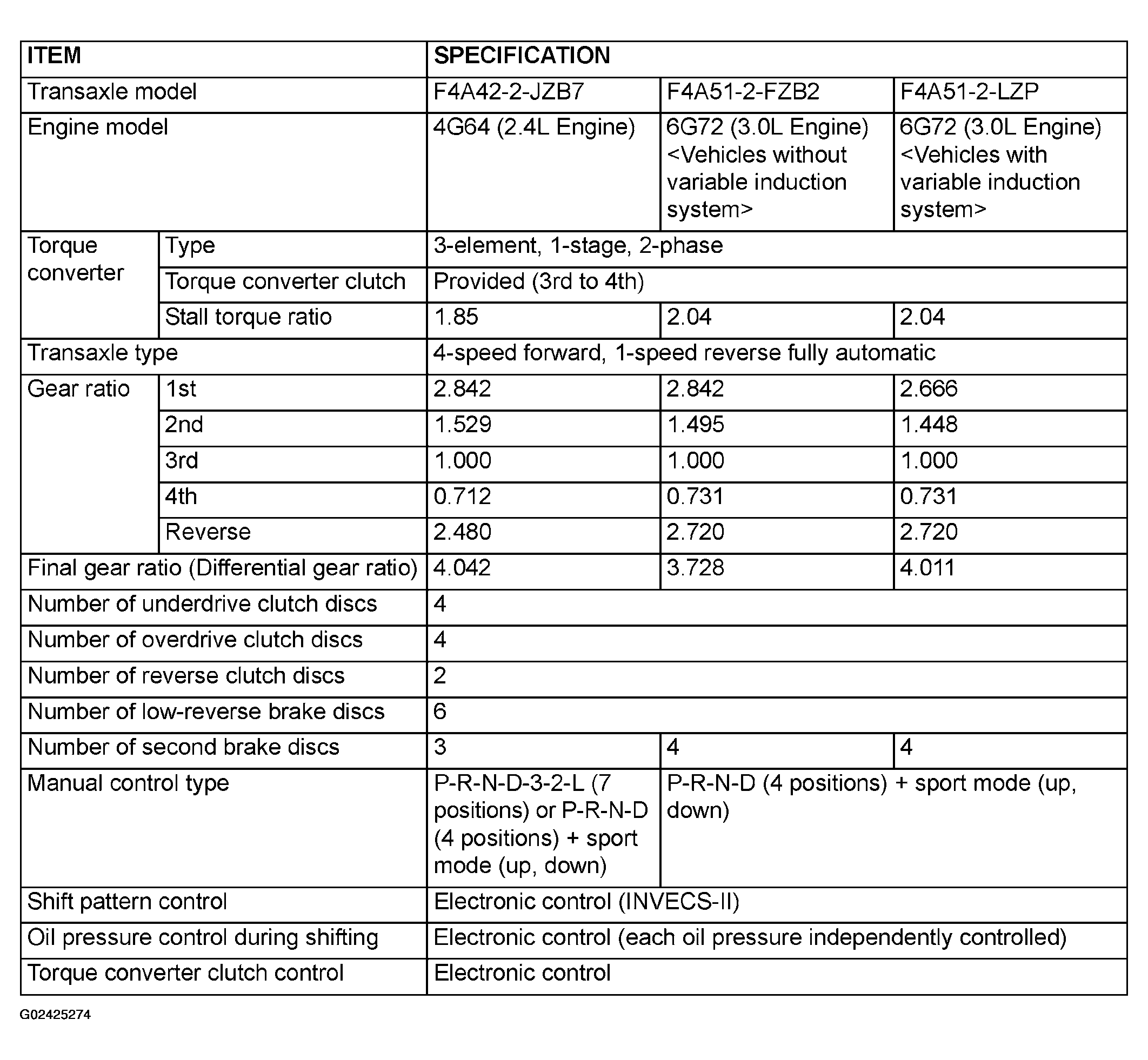

Fig 1: Identifying A/T Model Item Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
