INSPECTION PROCEDURE 1: Communication with Scan Tool MB991958 is Impossible.: Notes

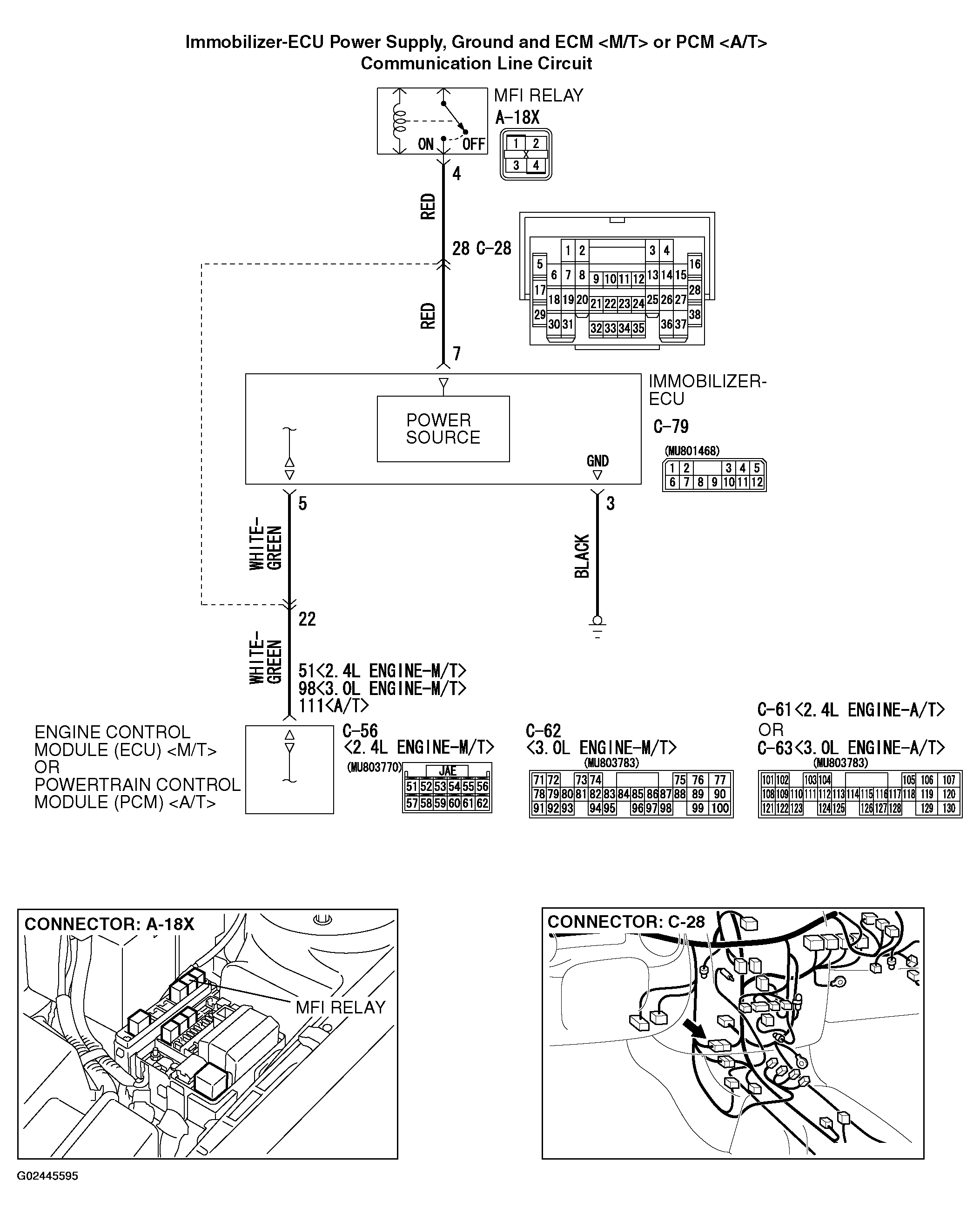

Fig 1: Communication Line Circuit Diagram & Connector Identification (1 Of 2)
G02445595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

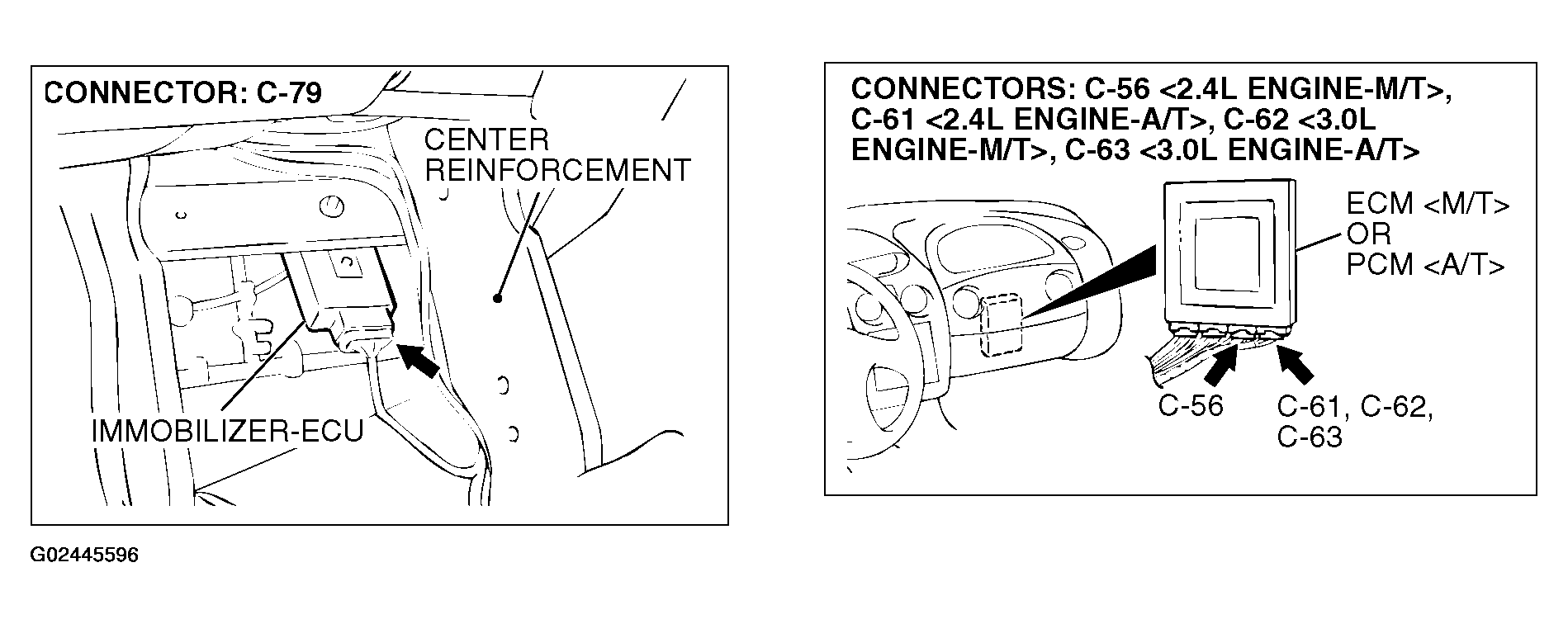

Fig 2: Communication Line Circuit Diagram & Connector Identification (2 Of 2)
G02445596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
