INSPECTION PROCEDURE O-3: The ETACS-ECU does not Receive Any Signal from the Fog Light Switch.: Notes

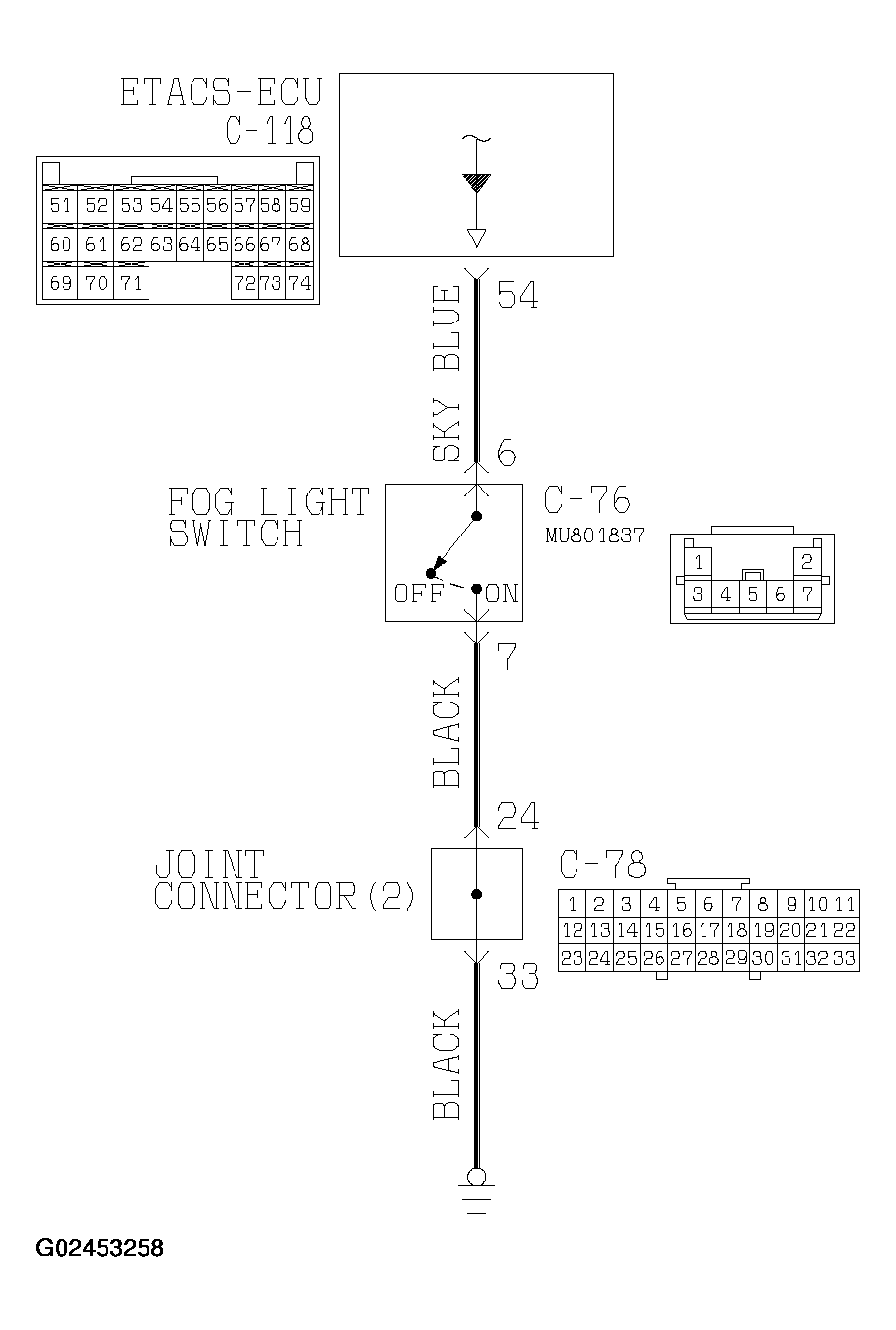

Fig 1: Fog Light Switch Input Circuit Diagram
G02453258Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

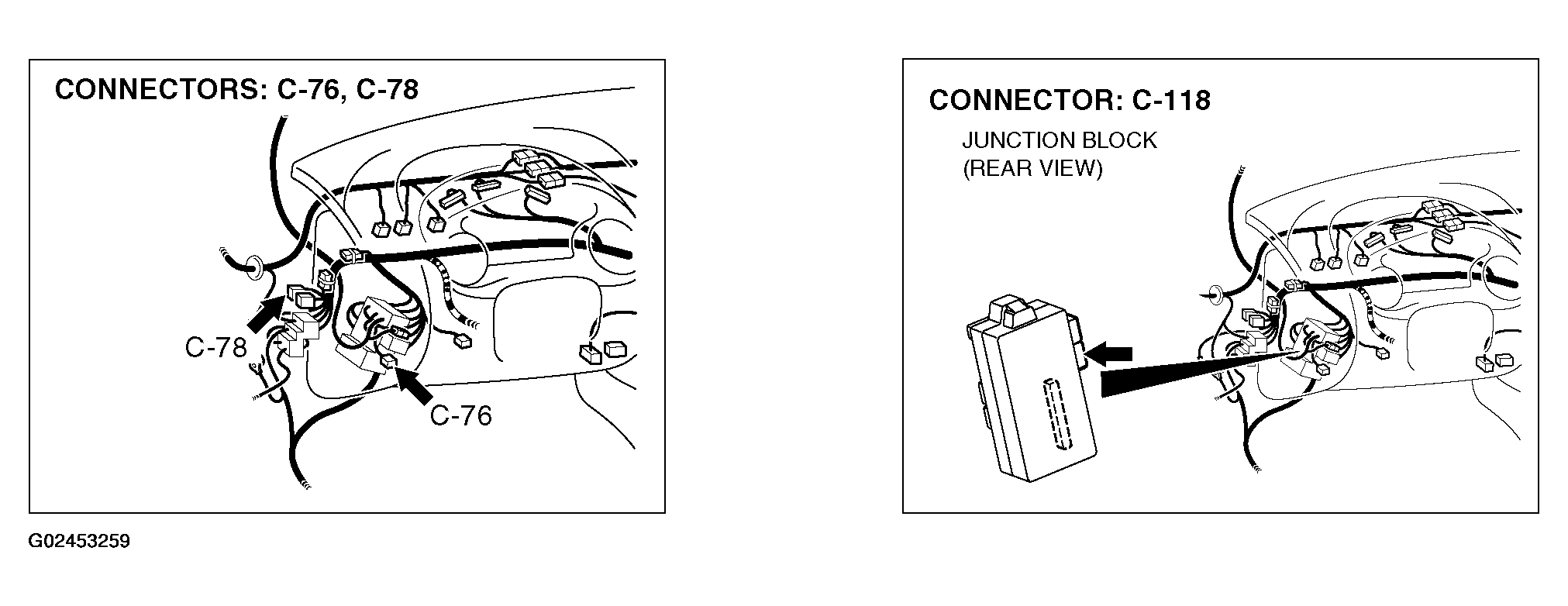

Fig 2: Identifying Connectors
G02453259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
