INSPECTION PROCEDURE D-4: Power Window: Only Power Window (RH) does not Work by Operating Power Window Sub-switch.: Notes

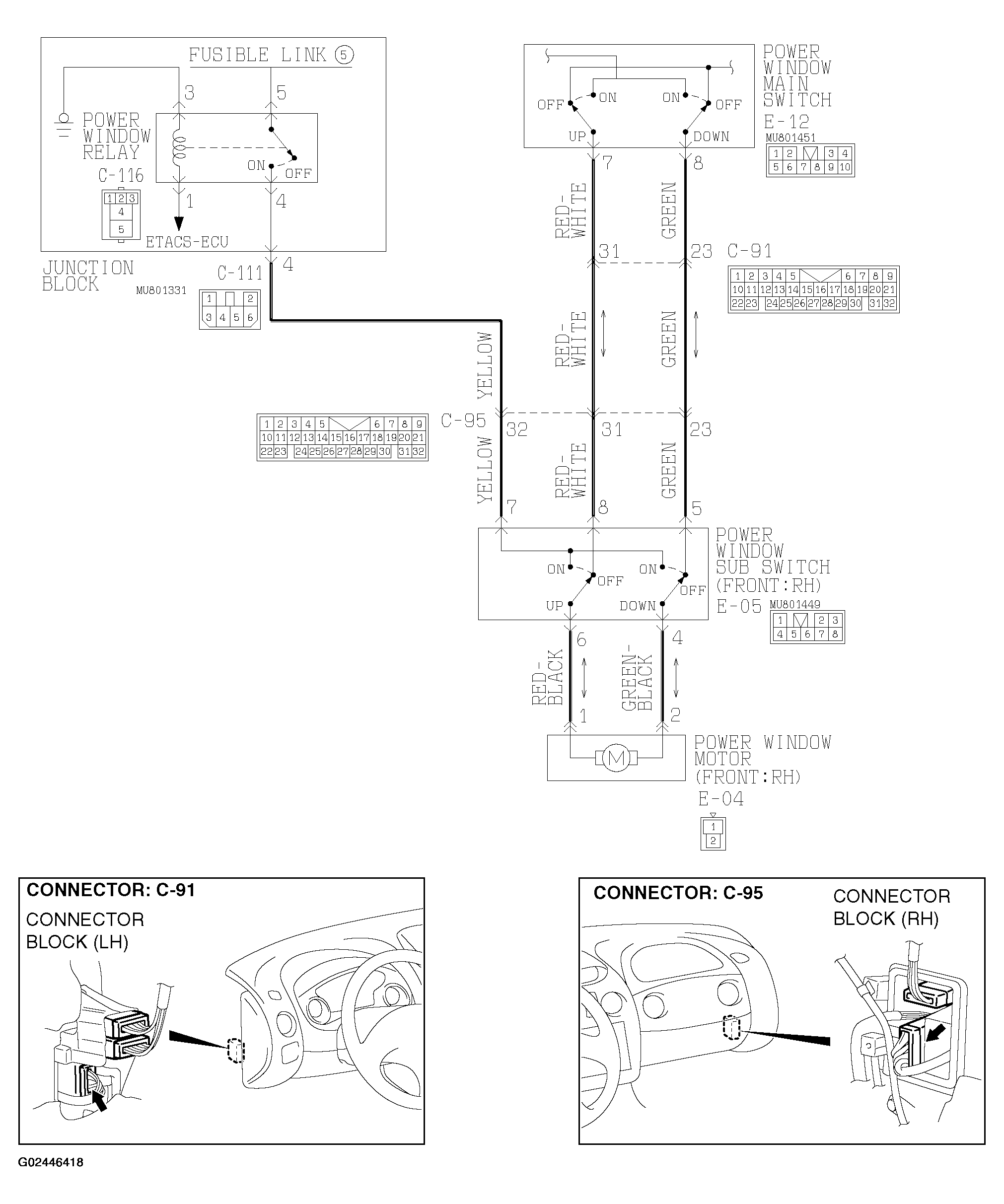

Fig 1: Power Window Sub Switch Circuit & Connector Identification (1 Of 2)
G02446418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

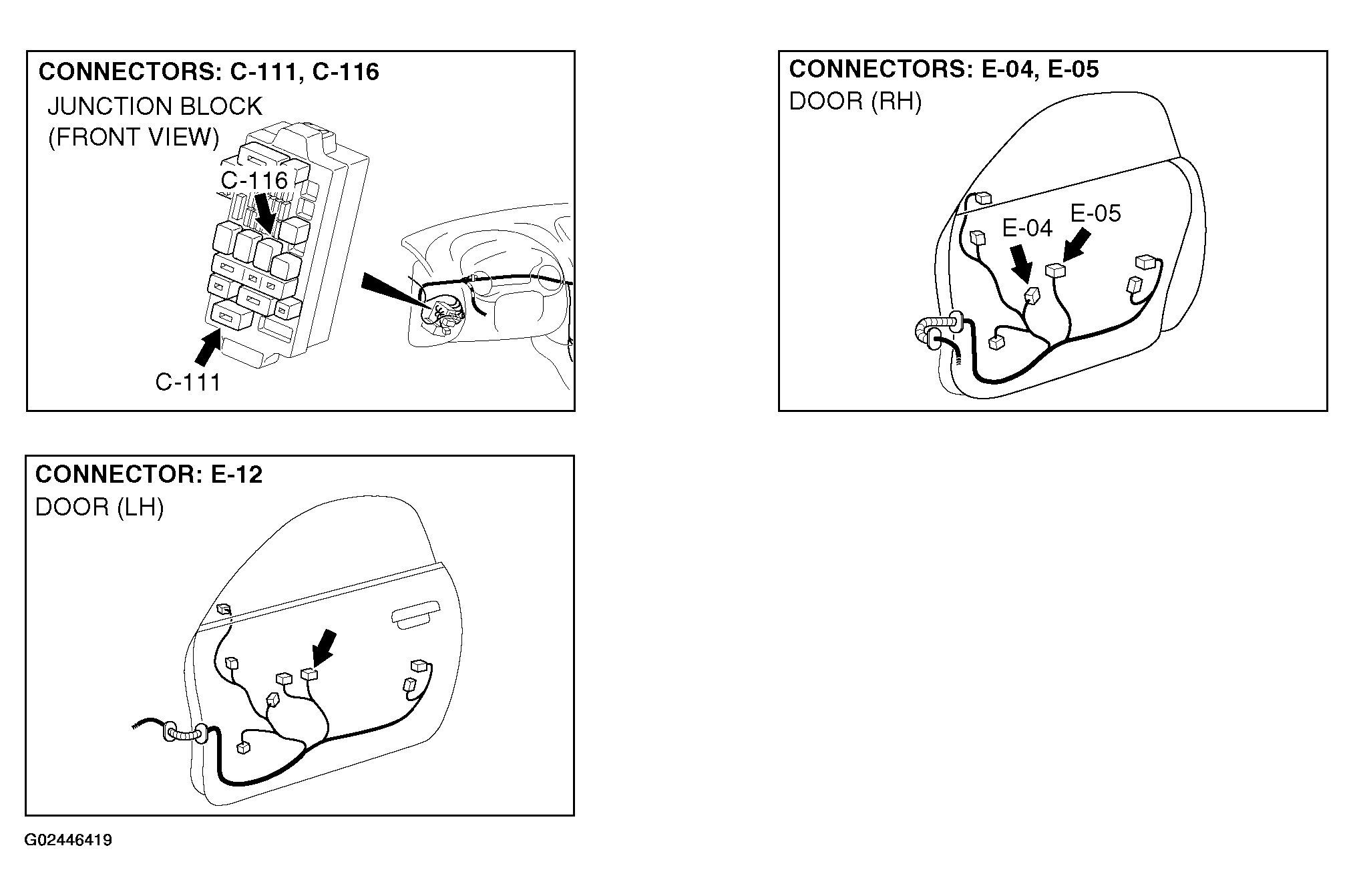

Fig 2: Power Window Sub Switch Circuit & Connector Identification (2 Of 2)
G02446419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
