DTC 14: Stoplight Switch System: Notes

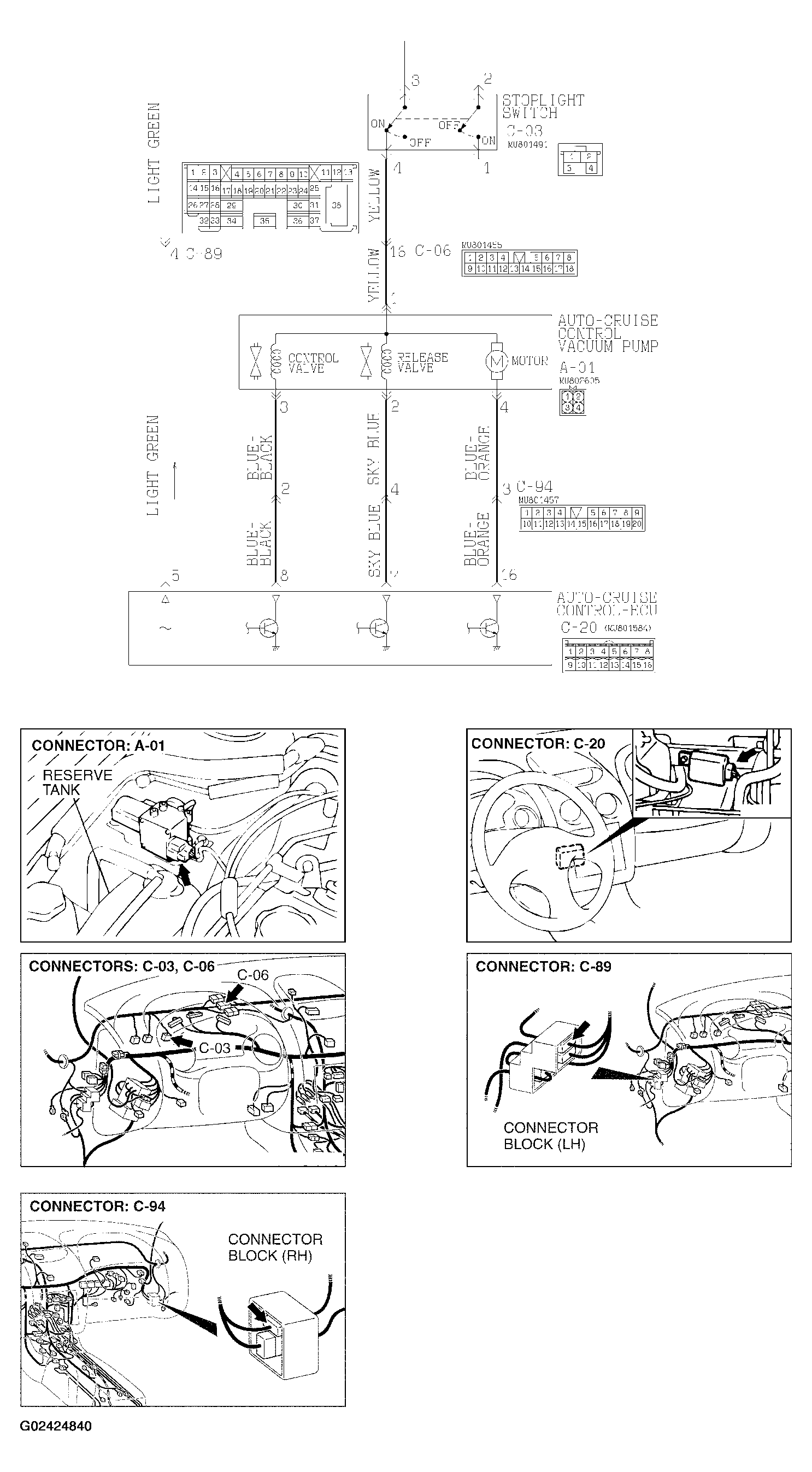

Fig 1: Stoplight Switch System - Circuit Diagram & Connector Identification
G02424840Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
