DTC 15: Auto-cruise Control Switch System: Notes

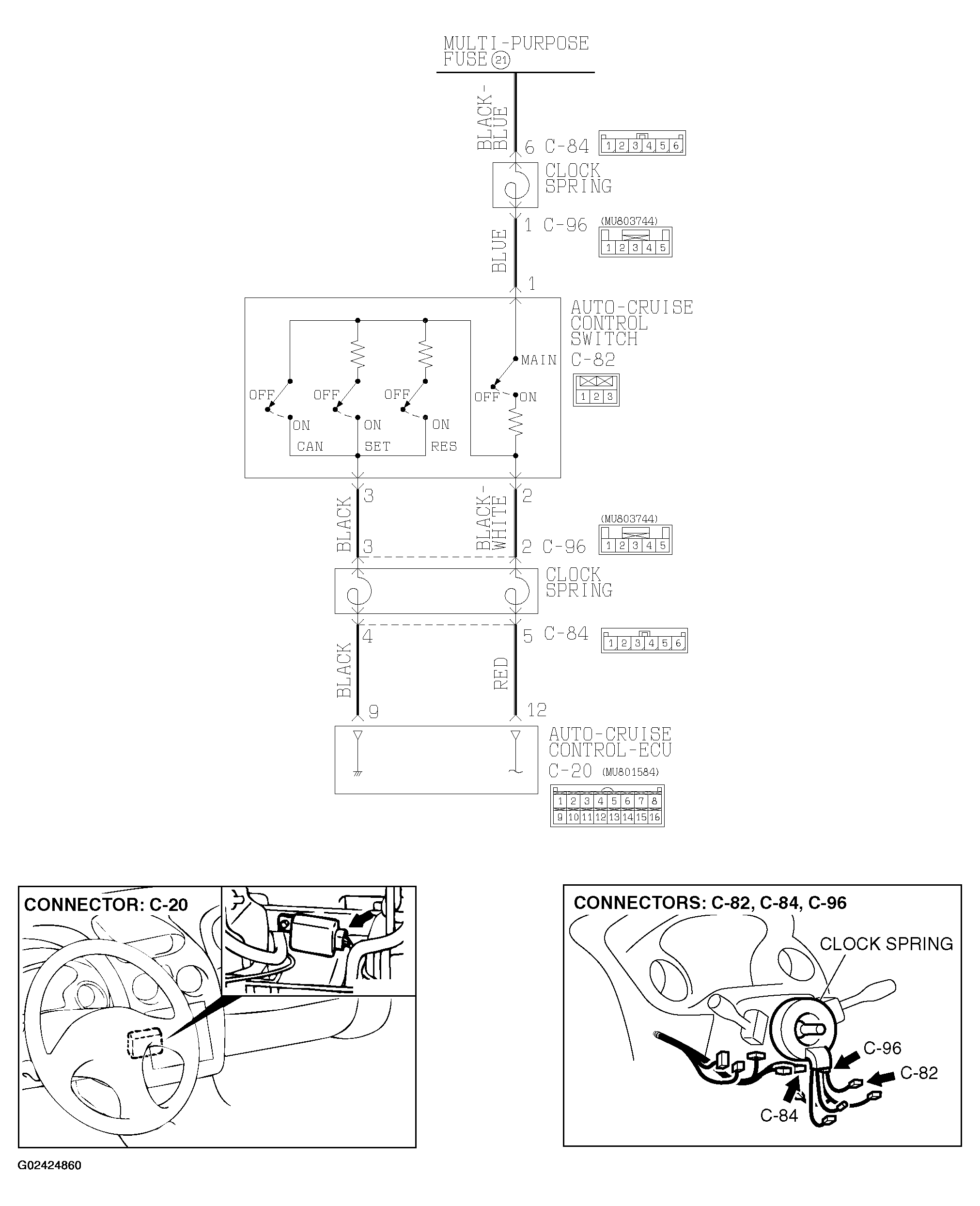

Fig 1: Auto-Cruise Control Switch System - Circuit Diagram & Connector Identification
G02424860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
