INSPECTION PROCEDURE 1: Speedometer does not work.: Notes

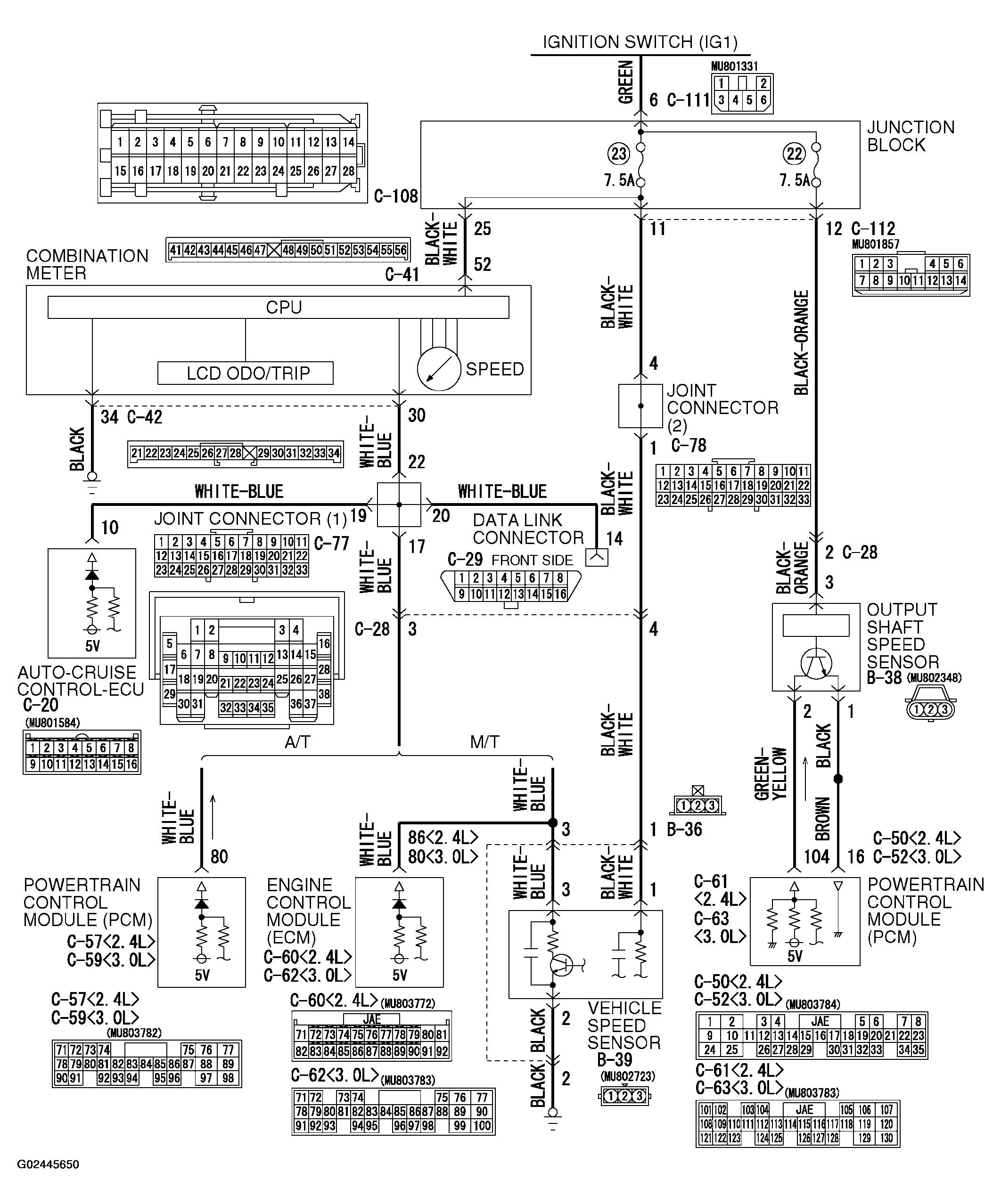

Fig 1: Speedometer Circuit Diagram & Connector Identification (1 Of 3)
G02445650Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

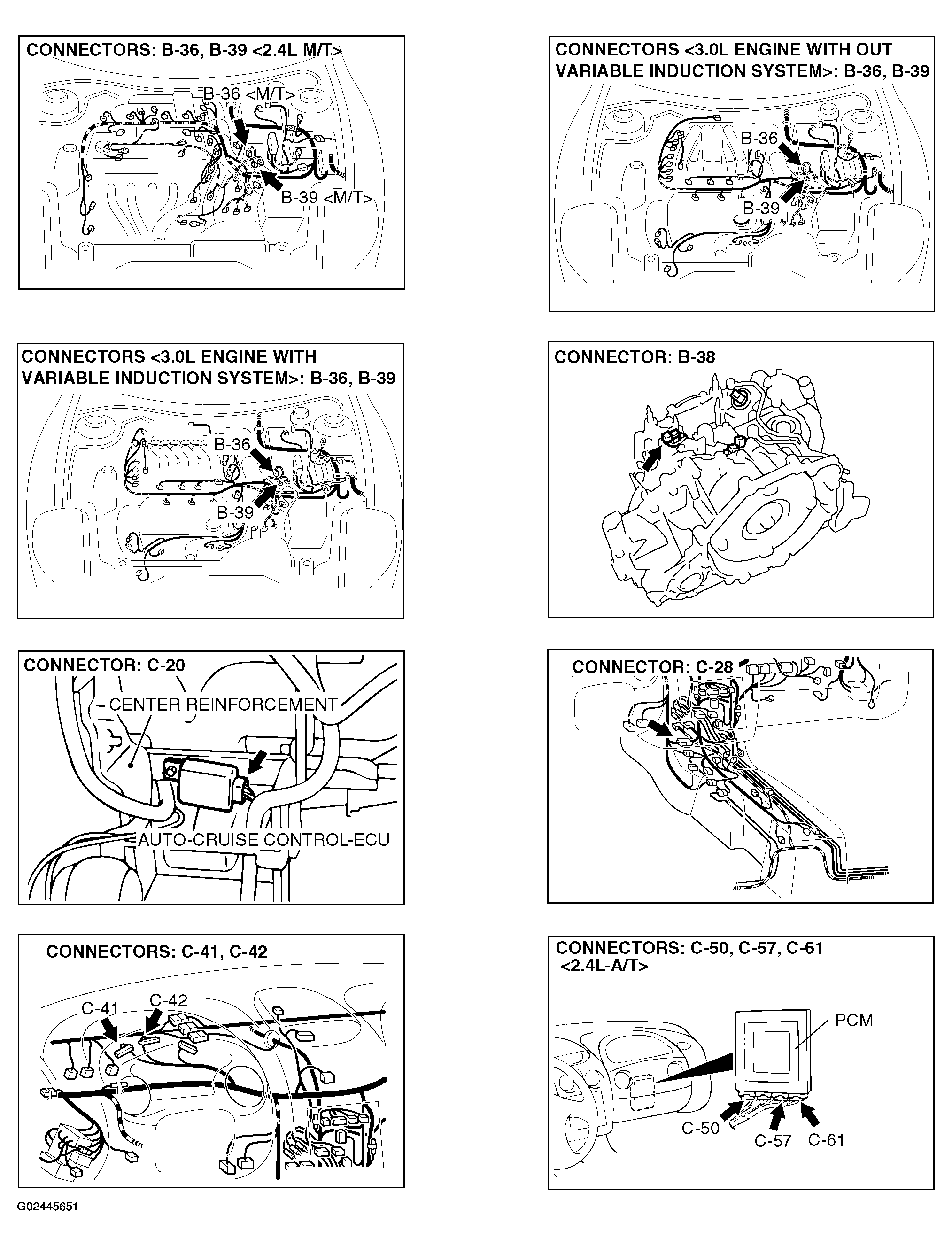

Fig 2: Speedometer Circuit Diagram & Connector Identification (2 Of 3)
G02445651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

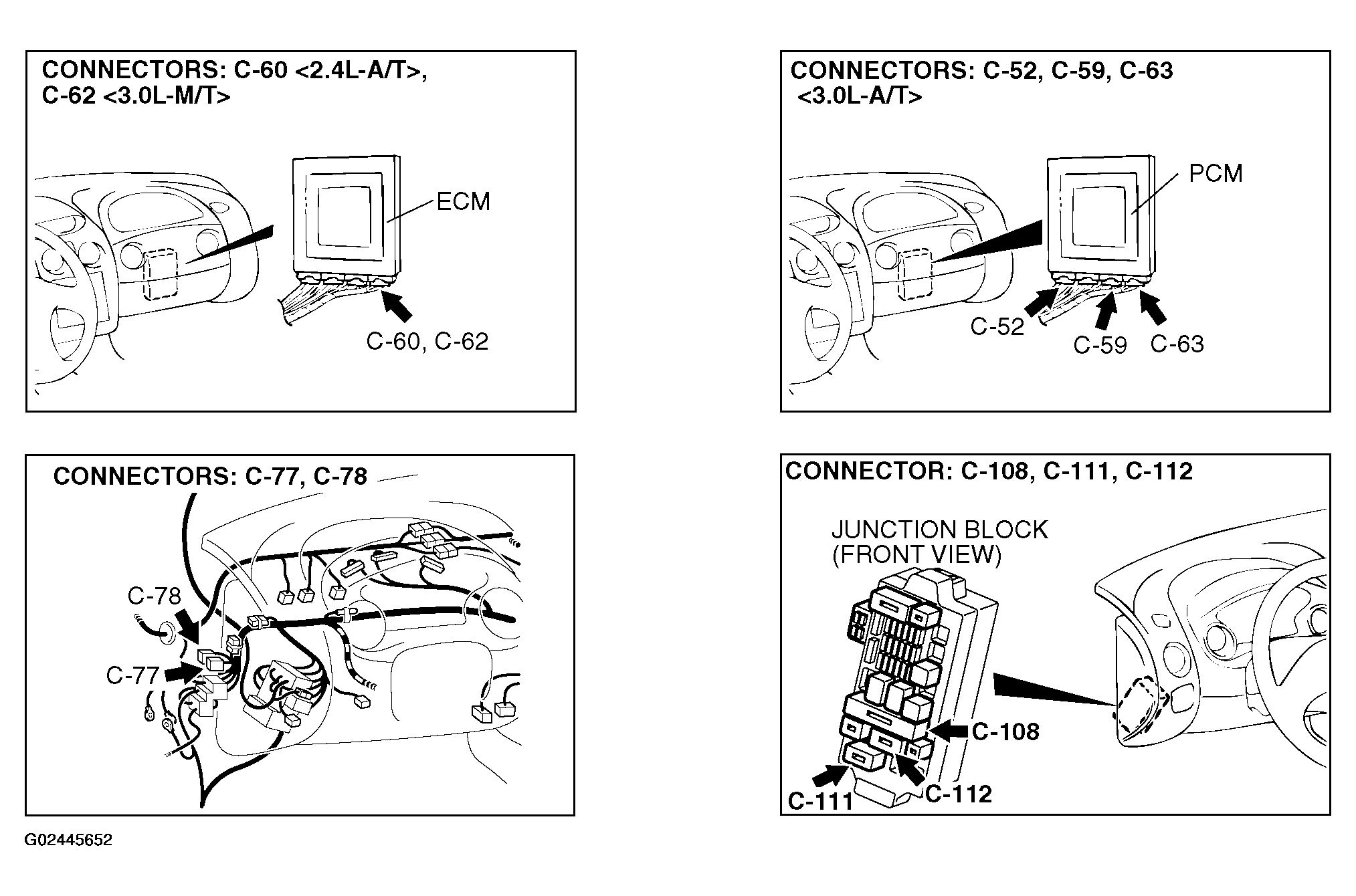

Fig 3: Speedometer Circuit Diagram & Connector Identification (3 Of 3)
G02445652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
