Fuel Level Sensor Float Height

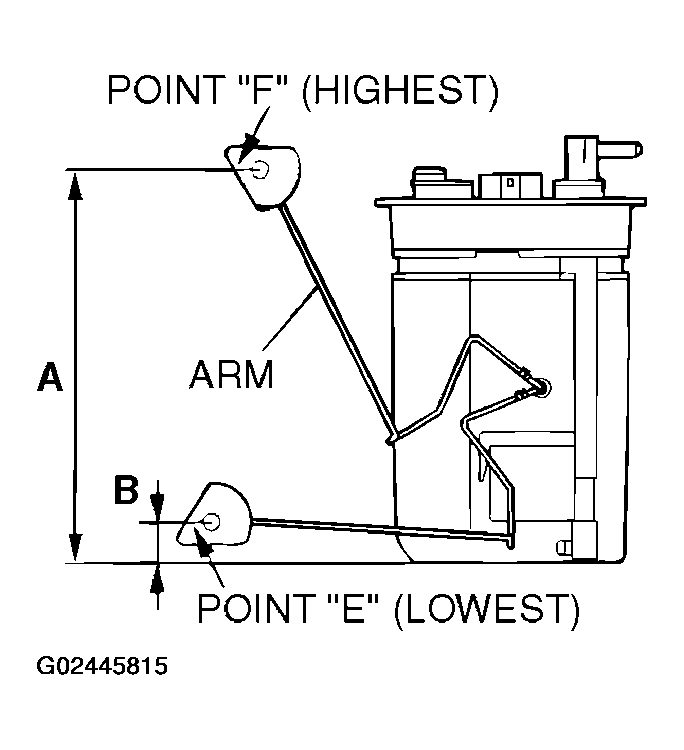

- Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
- Standard value:
- A: 180.3 mm (7.10 inches)
- B: 18.8 mm (0.74 inch)
- Standard value:
- Adjust the float arm to the standard value, then go to the thermistor check.
