INSPECTION PROCEDURE 2: The system does not accept the remote controlled radio switch (RH) only.: Diagnosis

1. Remove the airbag module (Refer to AIR BAG MODULES AND CLOCK SPRING ).
2. Check for continuity by operating the remote controlled radio switch (RH) in each position.

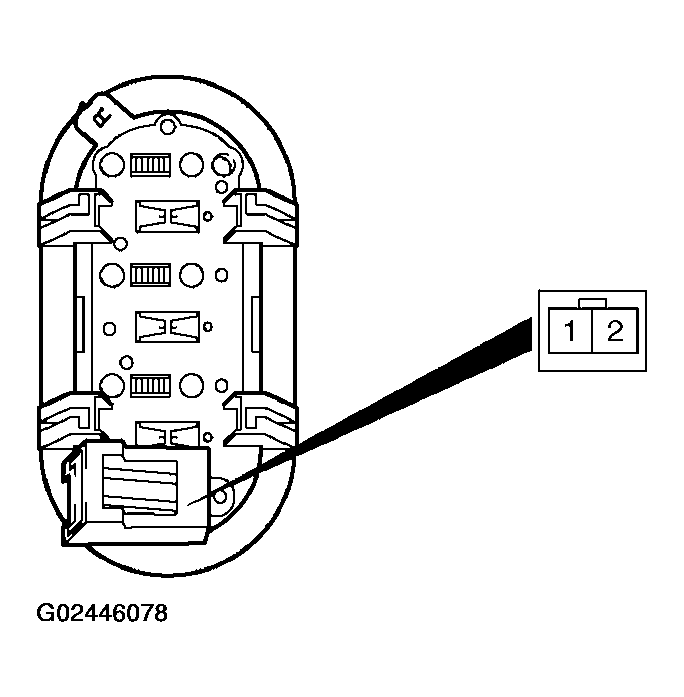

   Fig 1: Checking Remote Controlled Radio Switch (RH)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   SWITCH POSITION VALUE CHART



   SWITCH POSITION	MEASUREMENT VALUE
   No push	24 kΩ
   Upper	6.8 kΩ
   Center	0Ω
   Lower	15.0 kΩ

Q: Is the remote controlled radio switch normal?

1. YES:  Go to Step 2.
2. NO:  Replace the remote controlled radio switch (RH).

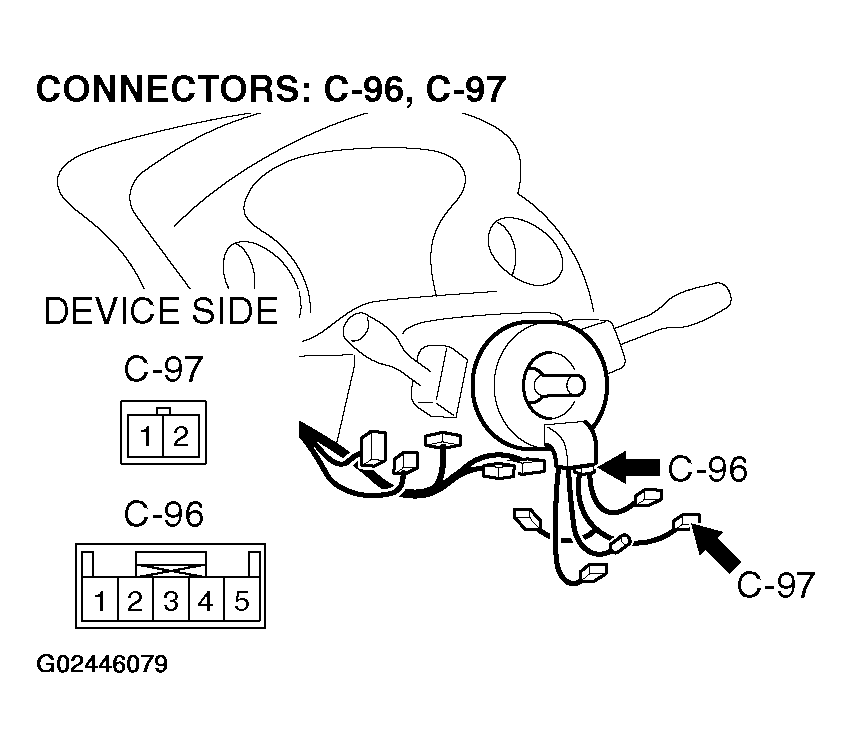

Fig 2: Checking Switch (RH) Connector C-97

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Is remote controlled radio switch (RH) connector C-97 and clock spring connector C-96 in good condition?

1. YES:  Go to Step 3.
2. NO:  Repair or replace it. Refer to HARNESS CONNECTOR INSPECTION . The remote controlled radio switch (RH) should work normally.

Fig 3: Checking Wiring Harness Between Remote Controlled Radio Switch Connector C-97

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Are the wiring harness between emote controlled radio switch connector C-97 (terminals 1 and 2) and clock spring connector C-96 (terminals 4 and 5) in good condition?

1. YES:  No action to be taken.
2. NO:  Repair the wiring harness. The remote controlled radio switch (RH) should work normally.
