>> A << Lock Pin/Guide Pin Installation

Install the bushing and lock pin to the bleeder nipple side at the caliper body, the guide pin to its opposite side, respectively.

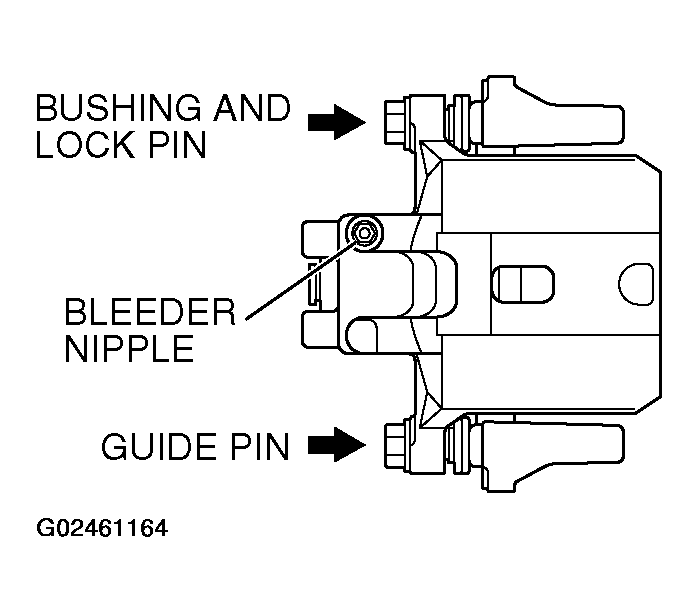

Fig 1: Installing Bushing And Lock Pin To Bleeder Nipple Side
G02461164Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
