>> A << Dynamic Damper/Damper Band/TJ Boot Installation

  1. Install the dynamic damper in the position shown in the illustration.

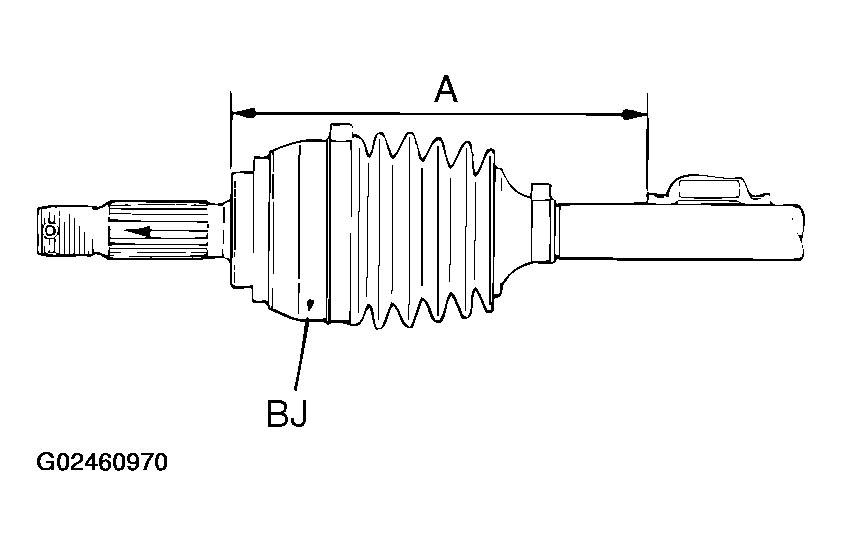

    Fig 1: Installing Dynamic Damper
    G02460969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    ITEM DESCRIPTION

    ITEM LH RH
    A mm(in) 242+/-3(9.5+/- 0.12) 254+/- 3 (10.0 +/- 0.12)
    CAUTION:
    • There should be no grease adhered to the rubber part of the dynamic damper.
    • The damper band and the TJ boot band (small) are different in shape. Be careful not to assemble a wrong band by identifying a color of the band.
  2. Secure the damper bands.

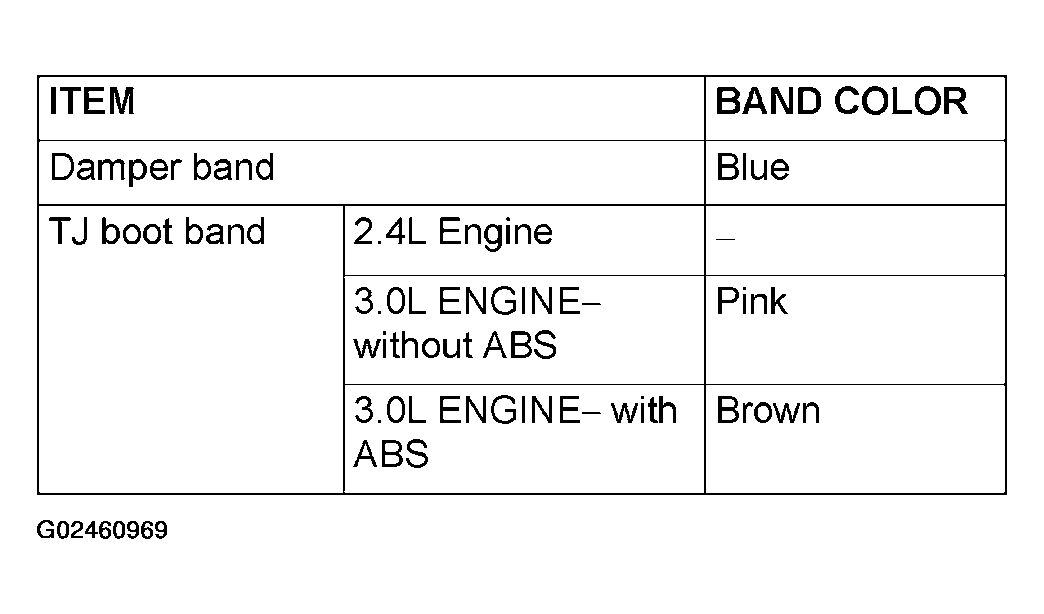

    Fig 2: Identifying Damper Bands Color Chart
    G02460970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Wrap plastic tape around the shaft spline, and then install the TJ boot band (small) and TJ boot.
