>> D << Driver's Air Bag Module Installation

CAUTION: If there is gap at place B shown in the illustration, that means the connector is not firmly inserted, i.e. not correctly connected. In such a case, insert connector to the place, where there remains no gap at place B shown in the illustration.
  1. Connect the clock spring connector securely.

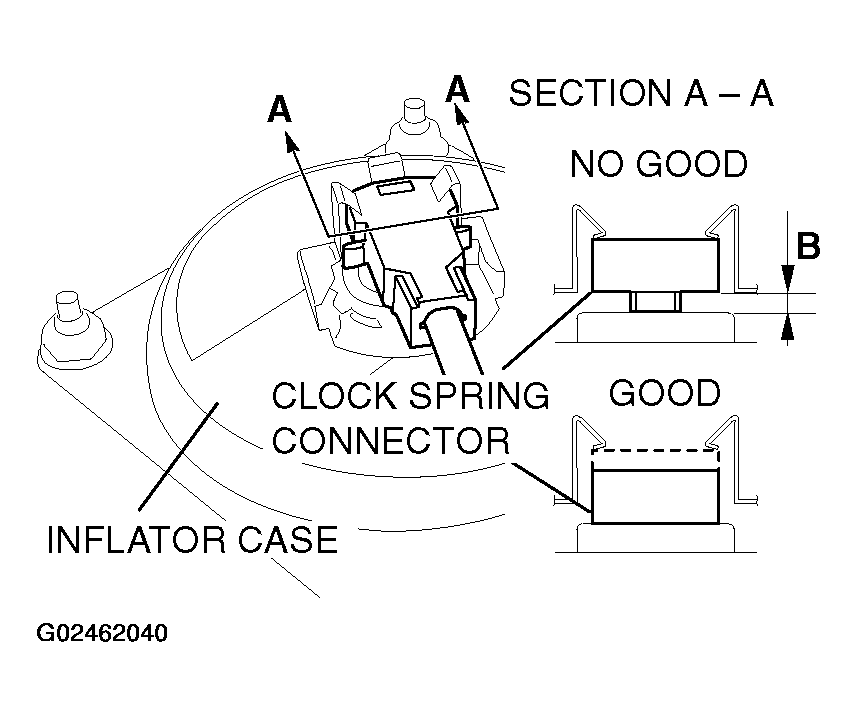

    Fig 1: Identifying Clock Spring Connector Installation Position
    G02462040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Tighten the air bag module mounting screws to 9.0 +/- 2.0 N.m (78 +/- 17in-lb).

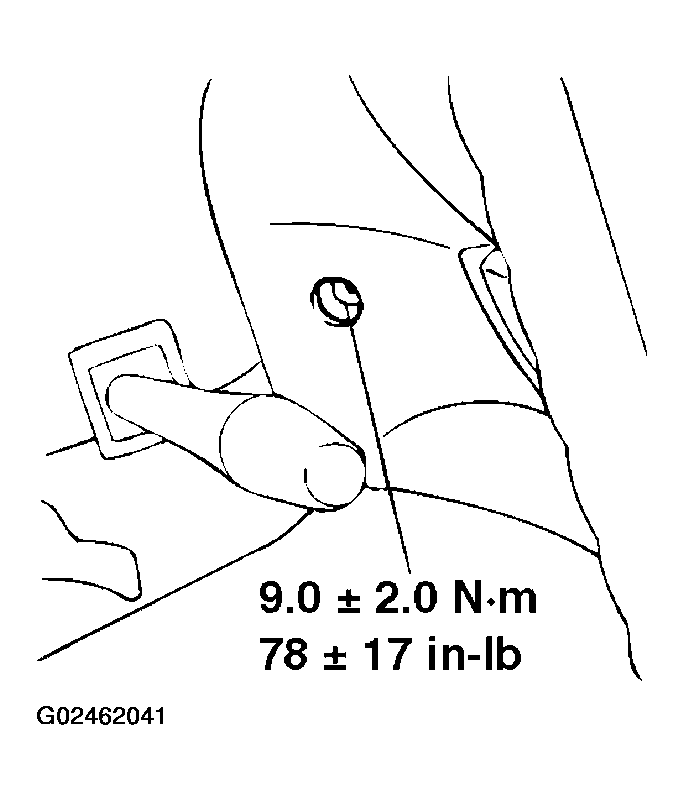

    Fig 2: Tightening Air Bag Module Mounting Screws
    G02462041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
