Disassembly And Assembly: Notes

WARNING: Do not disassemble a front seatback assembly with built-in side air bag module.

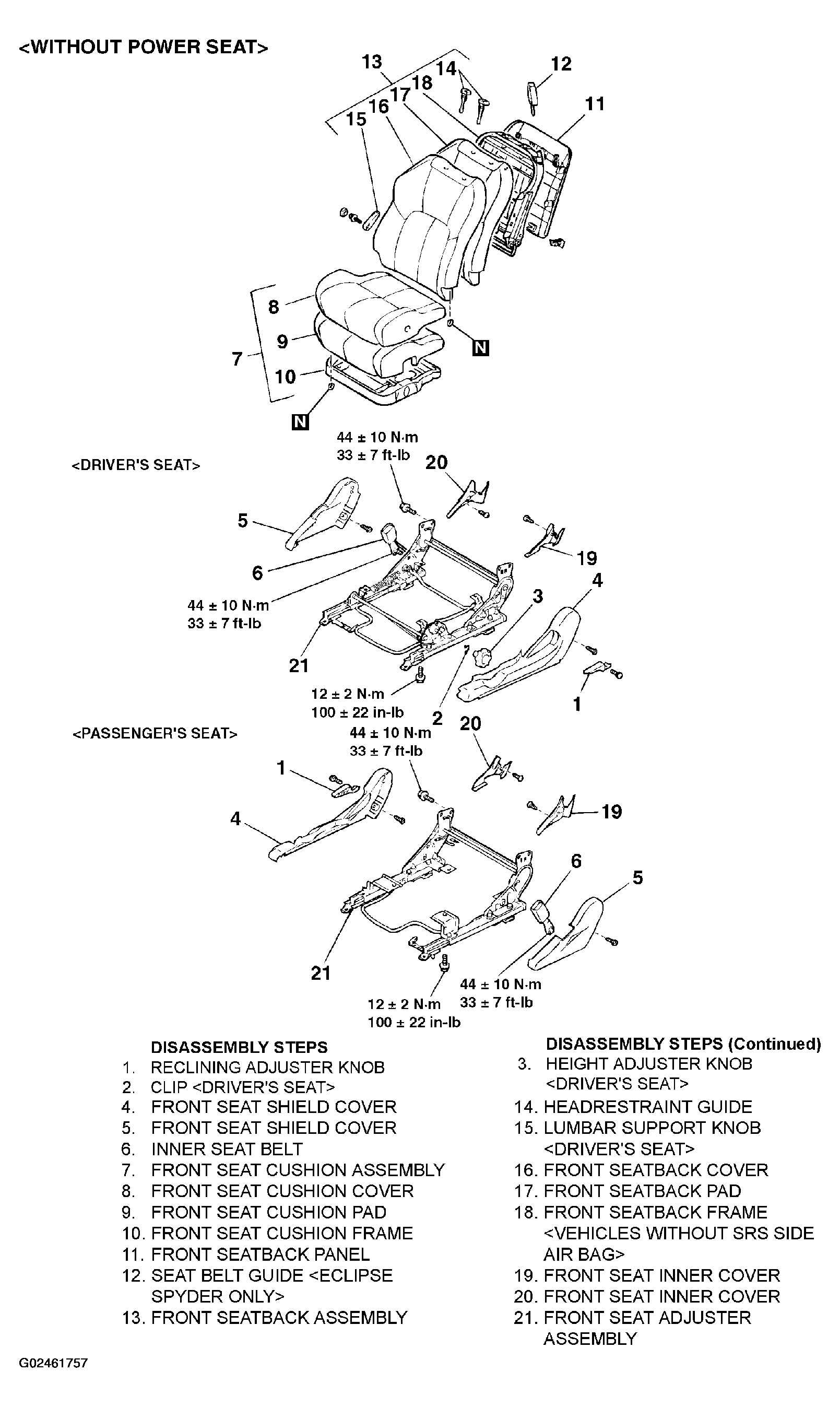

Fig 1: Disassembling/Assembling Front Seat Assembly (Without Power Seat)
G02461757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

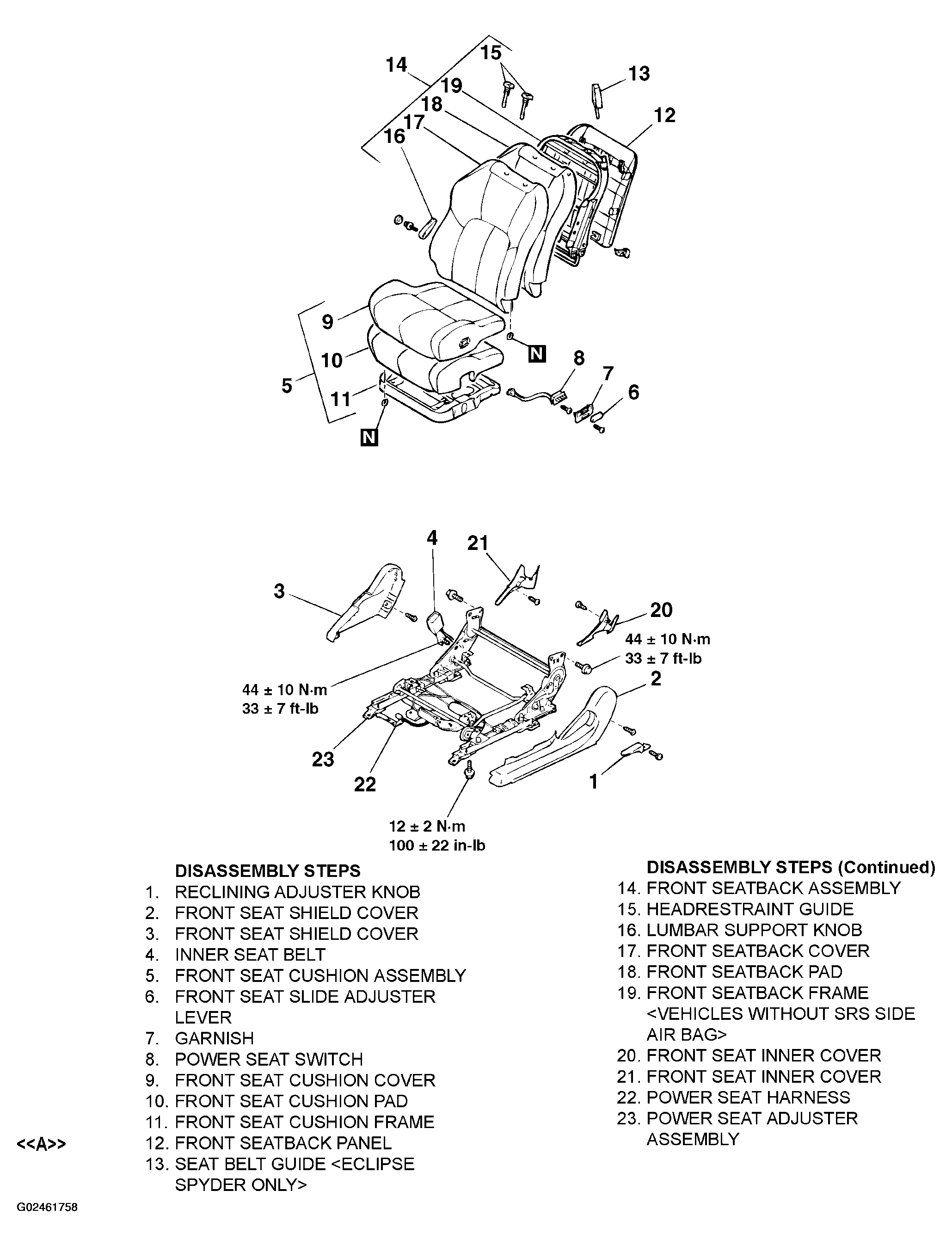

Fig 2: Disassembling/Assembling Front Seat Assembly (Power Seat)
G02461758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
