>> C << Steering Wheel Installation

CAUTION: When installing the steering wheel, ensure that the harness of the clock spring does not become caught or tangled.
  1. Before installing the steering wheel, turn the vehicle's front wheels to the straight-ahead position and align the mating marks of the clock spring.
  2. After installing the steering wheel, the remote controlled radio switch harness should be clamped at right and left sides as shown.

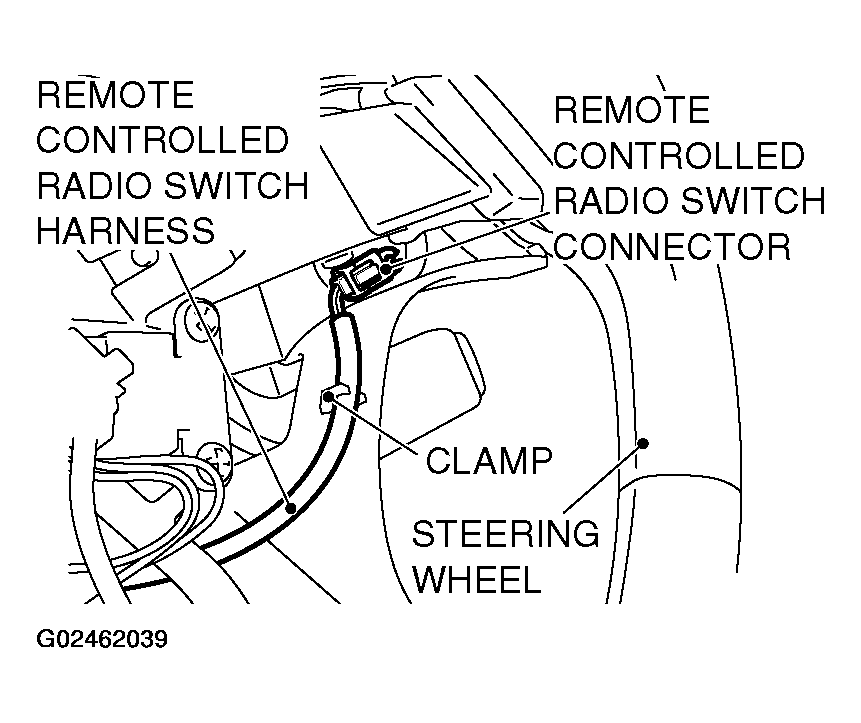

    Fig 1: Clamping Remote Controlled Radio Switch Harness
    G02462039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. After securing the remote controlled radio switch harness, turn the steering wheel all the way in both directions to confirm that the steering wheel rotation is normal.
