>> E << Post-Installation Inspection

  1. Reconnect the negative (-) battery cable.
  2. Turn the ignition switch to the "ON" position.
  3. Does the SRS warning light illuminate for approximately seven seconds, and then remain off for at least five seconds after turning "OFF"?

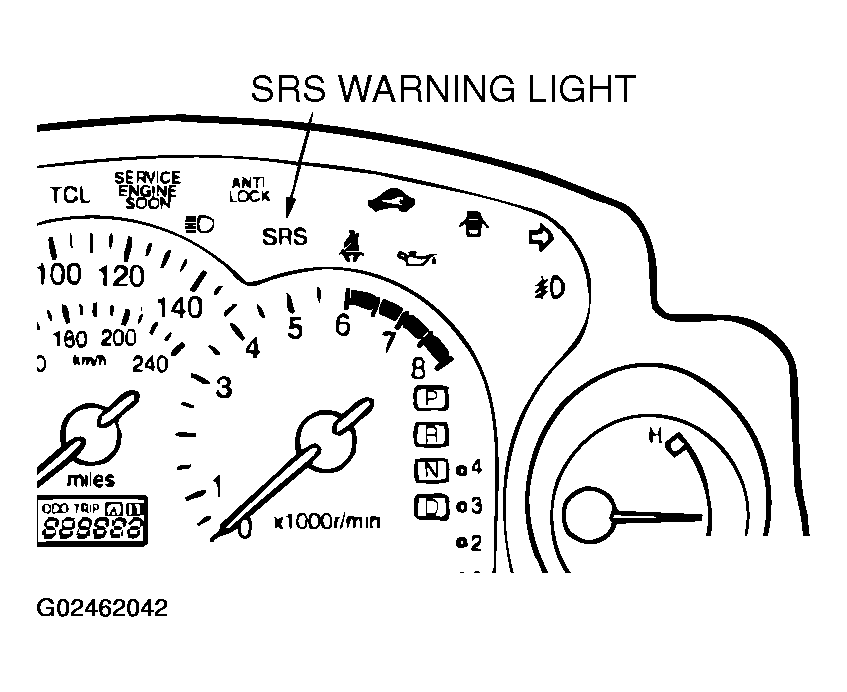

    Fig 1: Checking SRS Warning Light Illumination
    G02462042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If yes, the SRS system is functioning properly. If no, Refer to SRS WARNING LIGHT CHECK  .
