< Passenger's (Front) Air Bag Module >

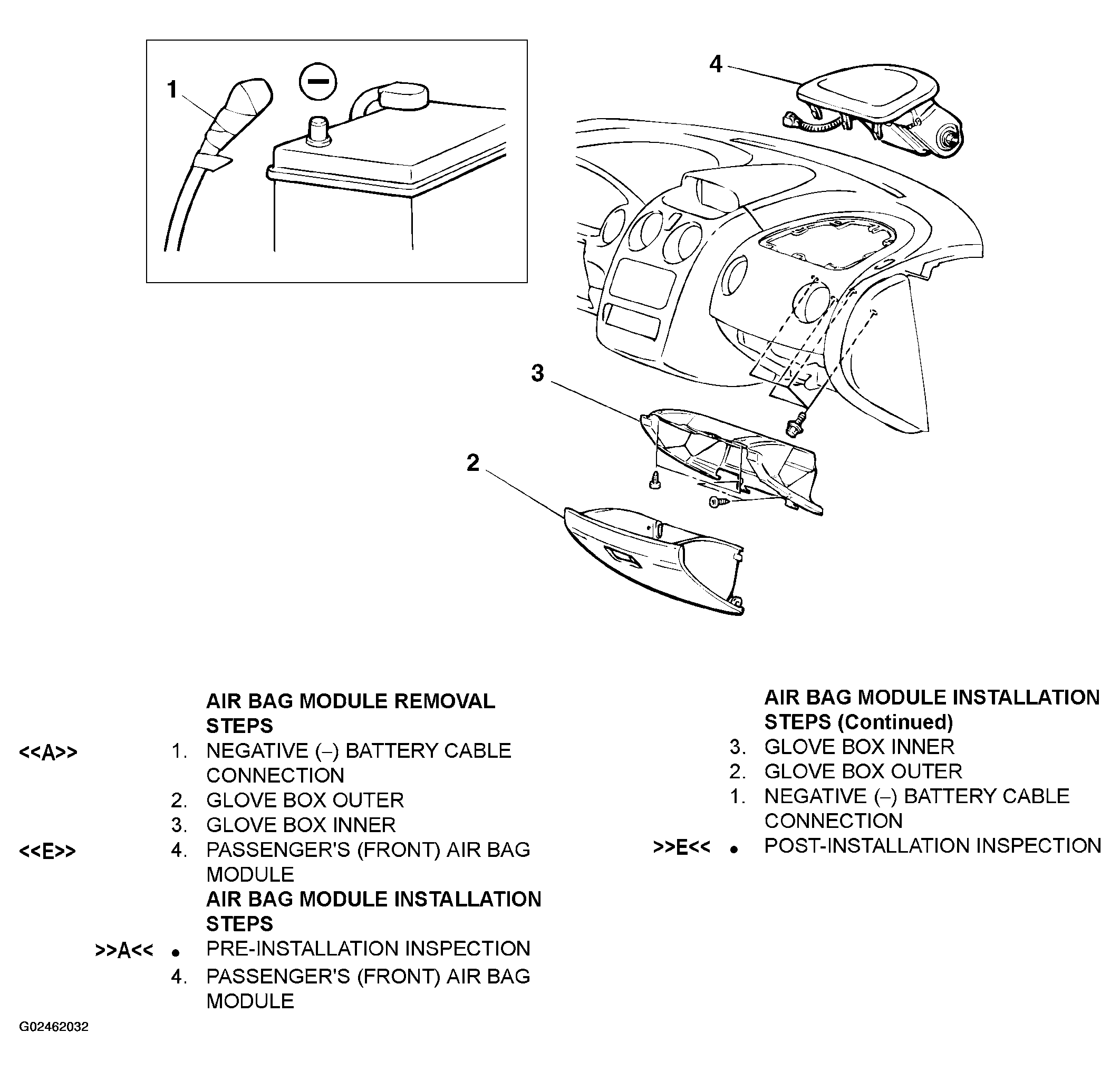

Fig 1: Removing/Installing Of Passenger's (Front) Air Bag Module
G02462032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
