Clock Spring Check

If any malfunction is found in steps 1 through 4, replace the clock spring with a new one.

1. Check the connectors and protective tube for damage, and the terminals for deformation.

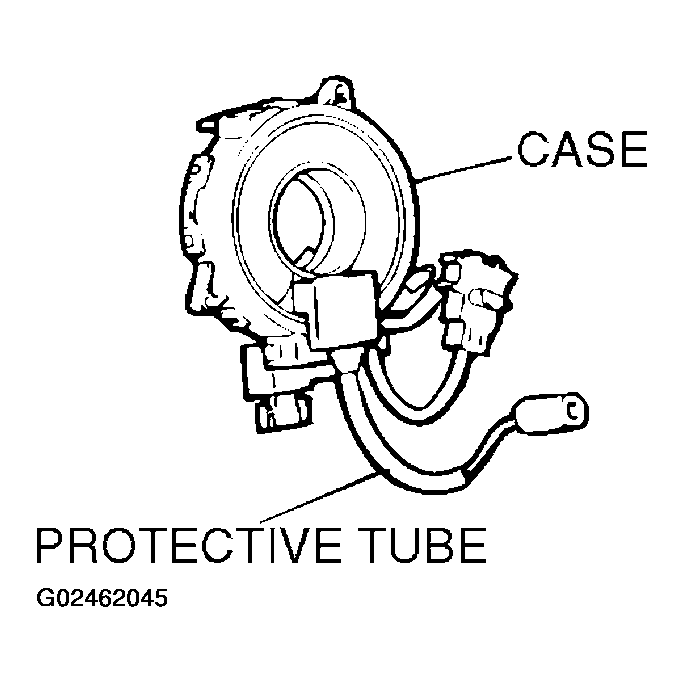

   Fig 1: Identifying Clock Spring Components

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Visually check the case for damage.
3. Check that there is continuity among the clock spring connectors number 1 and number 2. Connect terminal 1 of the connector number 1 and connector number 2.
   Fig 2: Identifying Clock Spring Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Align the paint mark of special tool MB991613 connector number 4 with the notch in clock spring connector number 2 (arrow in the illustration) to connect the connectors number 2 and 4.

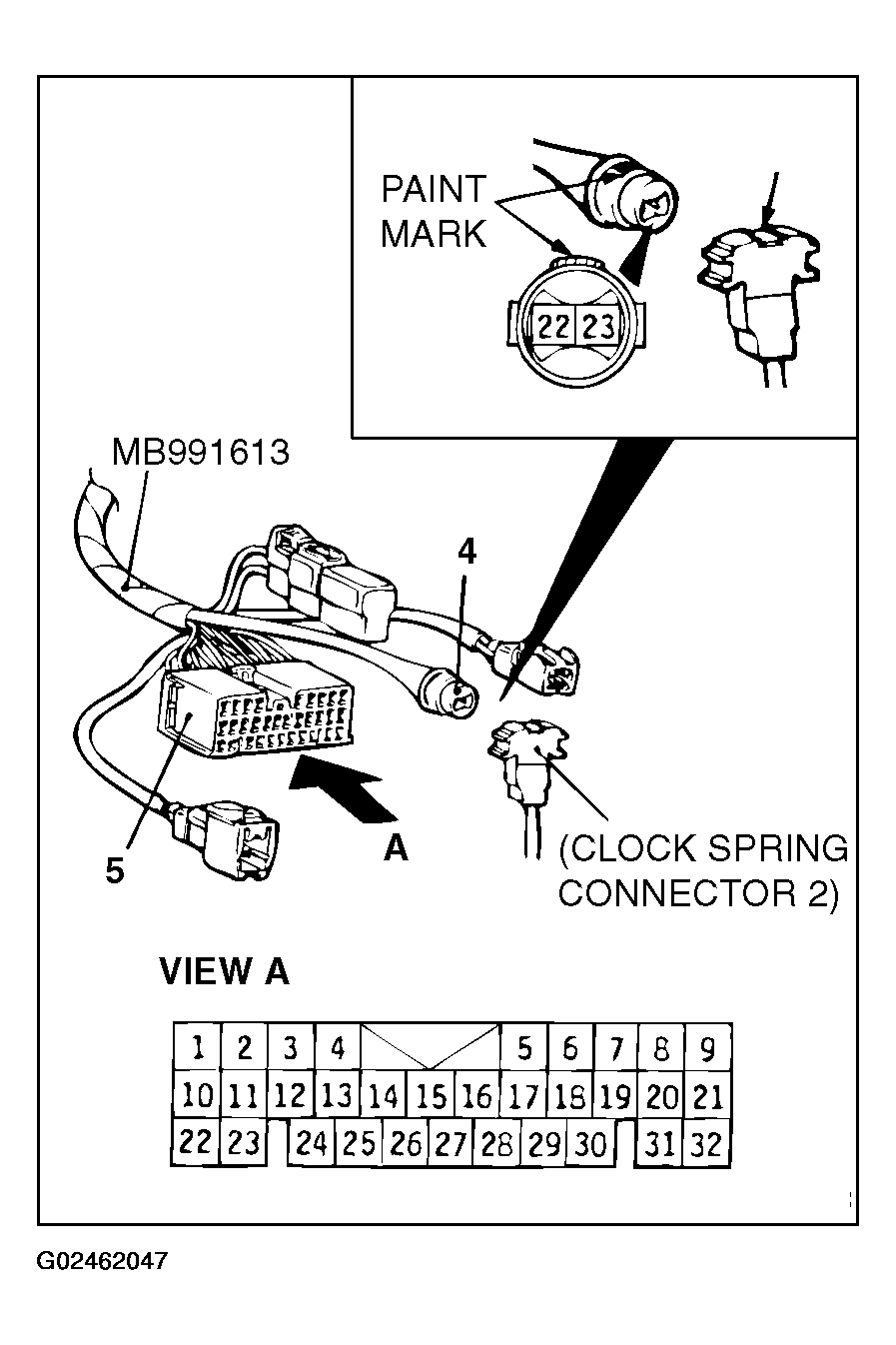

   Fig 3: Aligning Special Tool Connector Number Paint Mark With Notch In Clock Spring Connector Number

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Measure the resistance between the terminals 22 and 23 of special tool MB991613 connector number 5.
   1. Standard value: less than 0.4Ω
