>> D << Synchronizer Spring Installation

Install the synchronizer spring to the illustrated position of the synchronizer ring and outer synchronizer ring < F5M51 >.

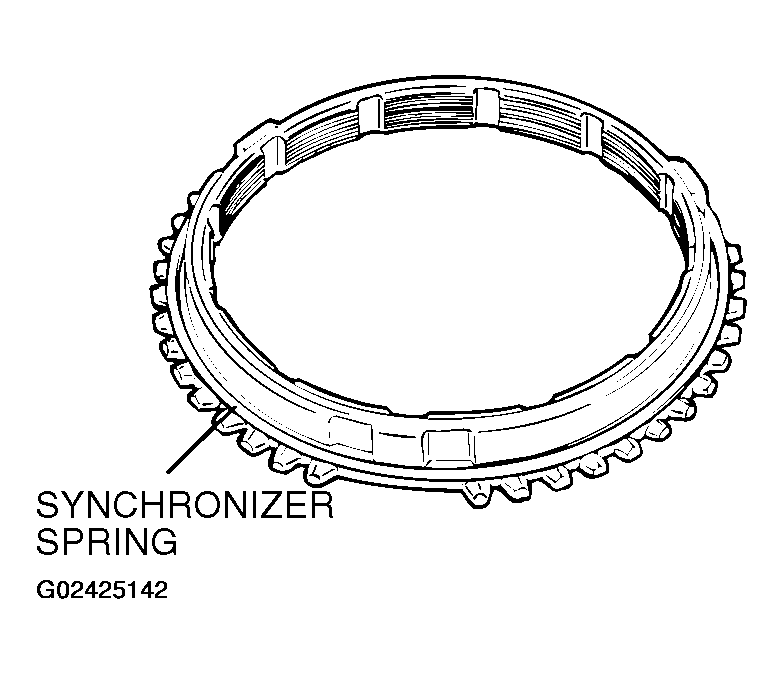

Fig 1: Identifying Synchronizer Spring (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

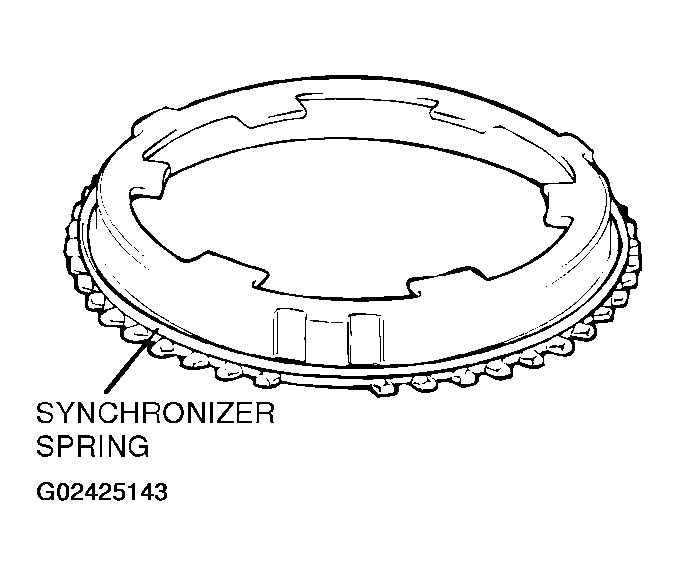

Fig 2: Identifying Synchronizer Spring (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
