Construction Diagram: Notes

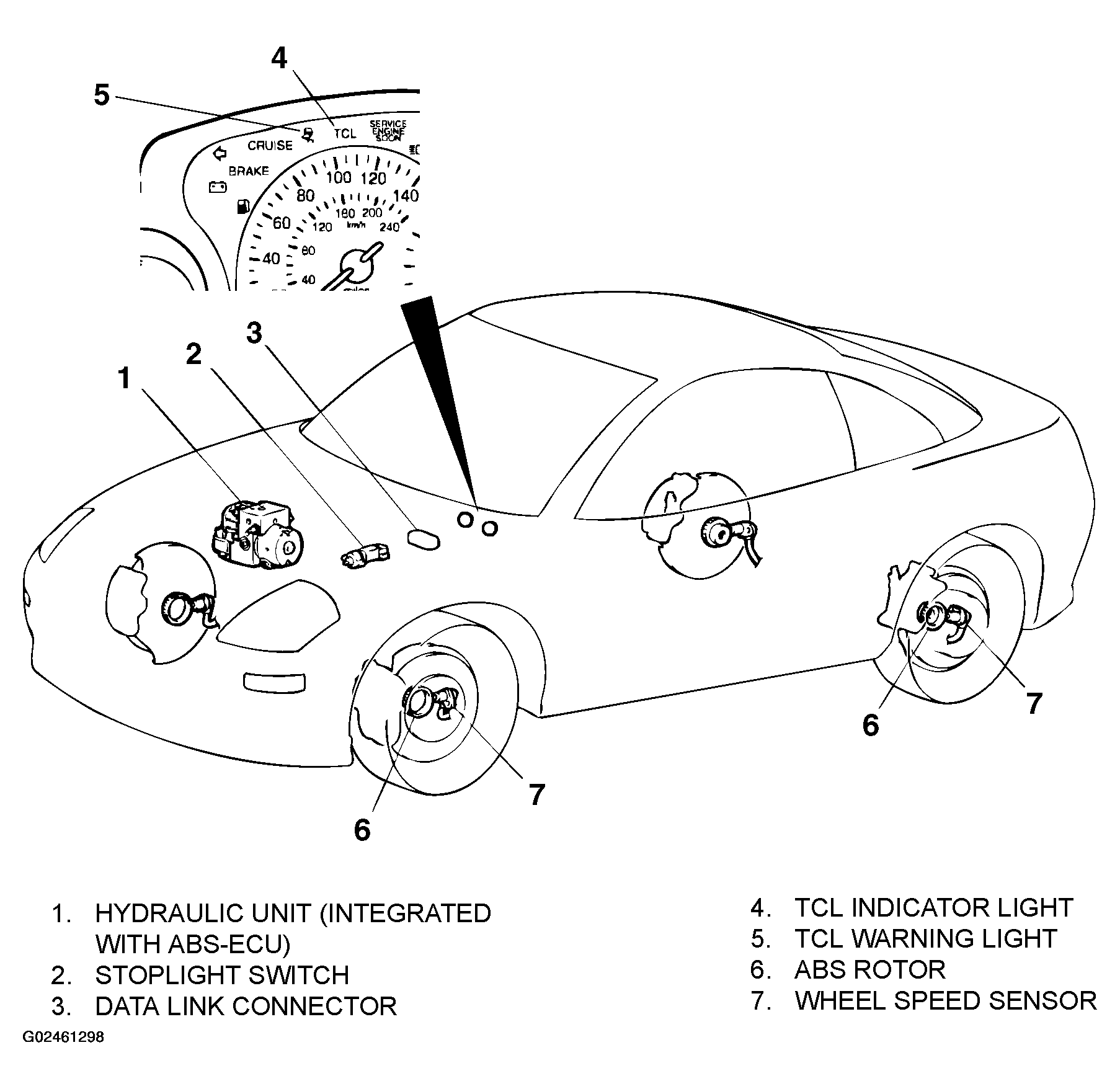

Fig 1: Identifying Traction Control System Components Location (Eclipse)
G02461298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

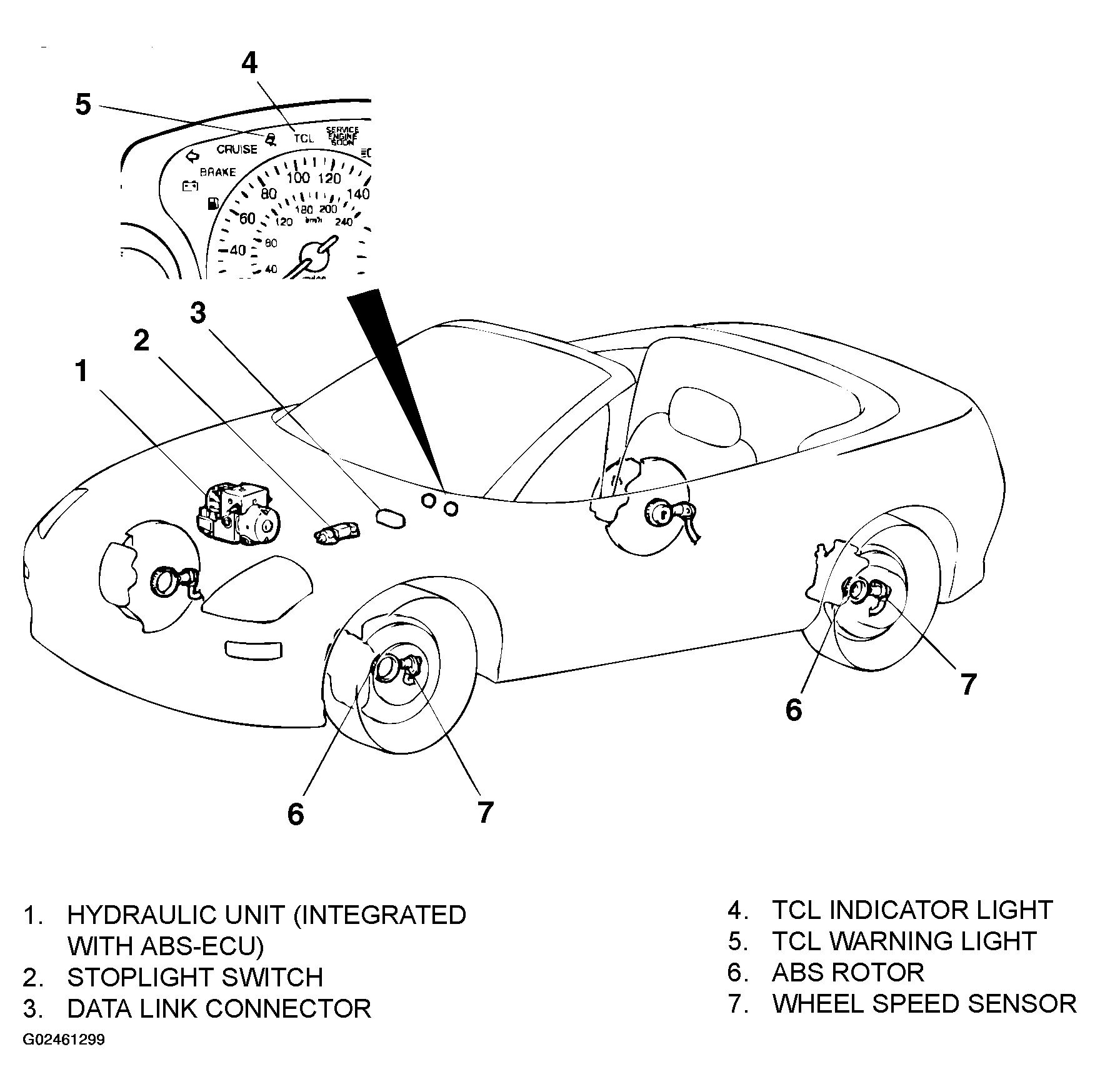

Fig 2: Identifying Traction Control System Components Location (Eclipse Spyder)
G02461299Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
