< 3.0L Engine >: Notes

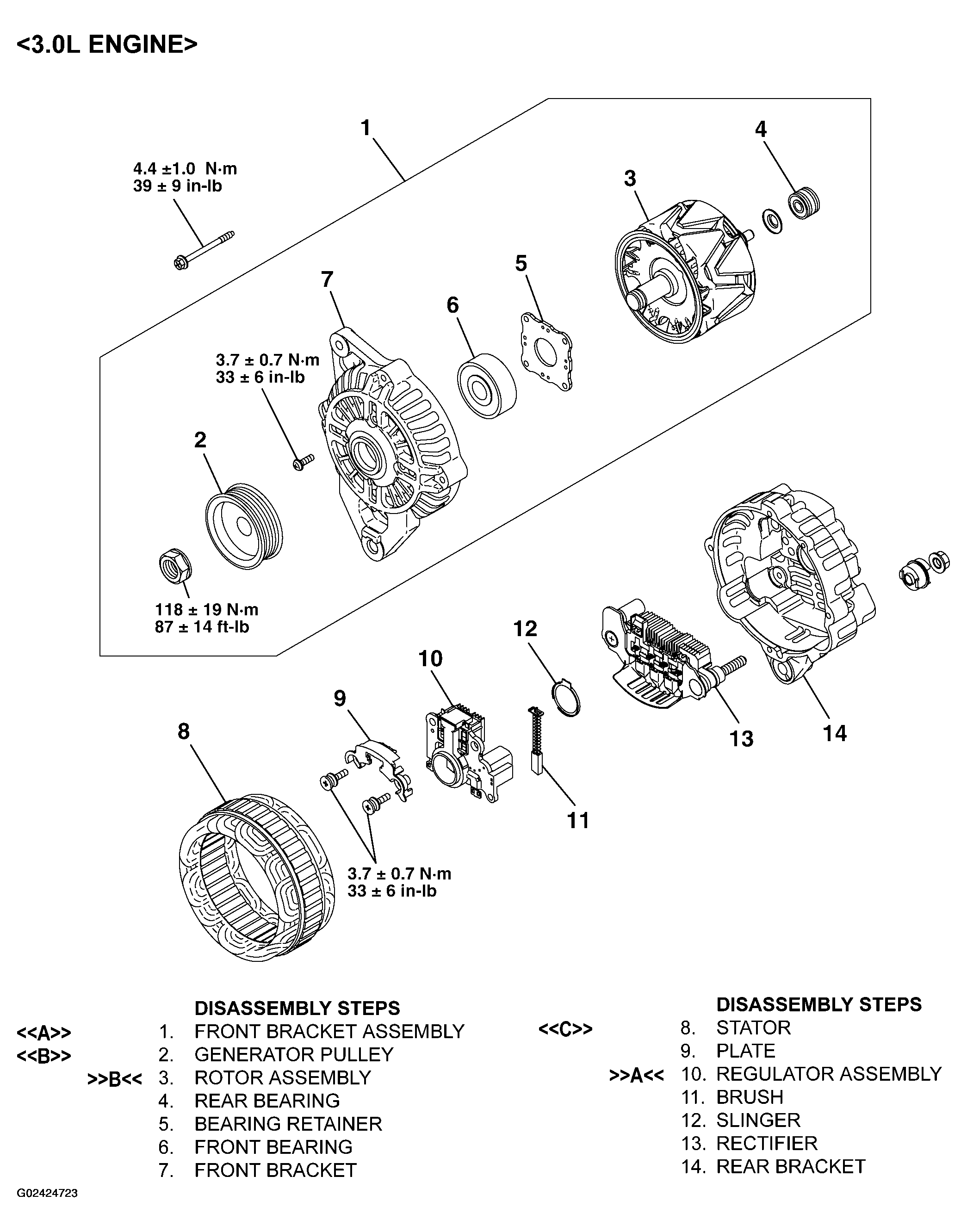

Fig 1: Disassembly Steps Of Generator (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
