Remote Controlled Radio Switch Continuity Check

SWITCH POSITION VALUE CHART

SWITCH POSITION	MEASUREMENT VALUE (RH)	MEASUREMENT VALUE (LH)
No push	24 kΩ	Open circuit
Upper	6.8 kΩ	1.2 kΩ
Center	0Ω	470 Ω
Lower	15.0 kΩ	3.3 kΩ

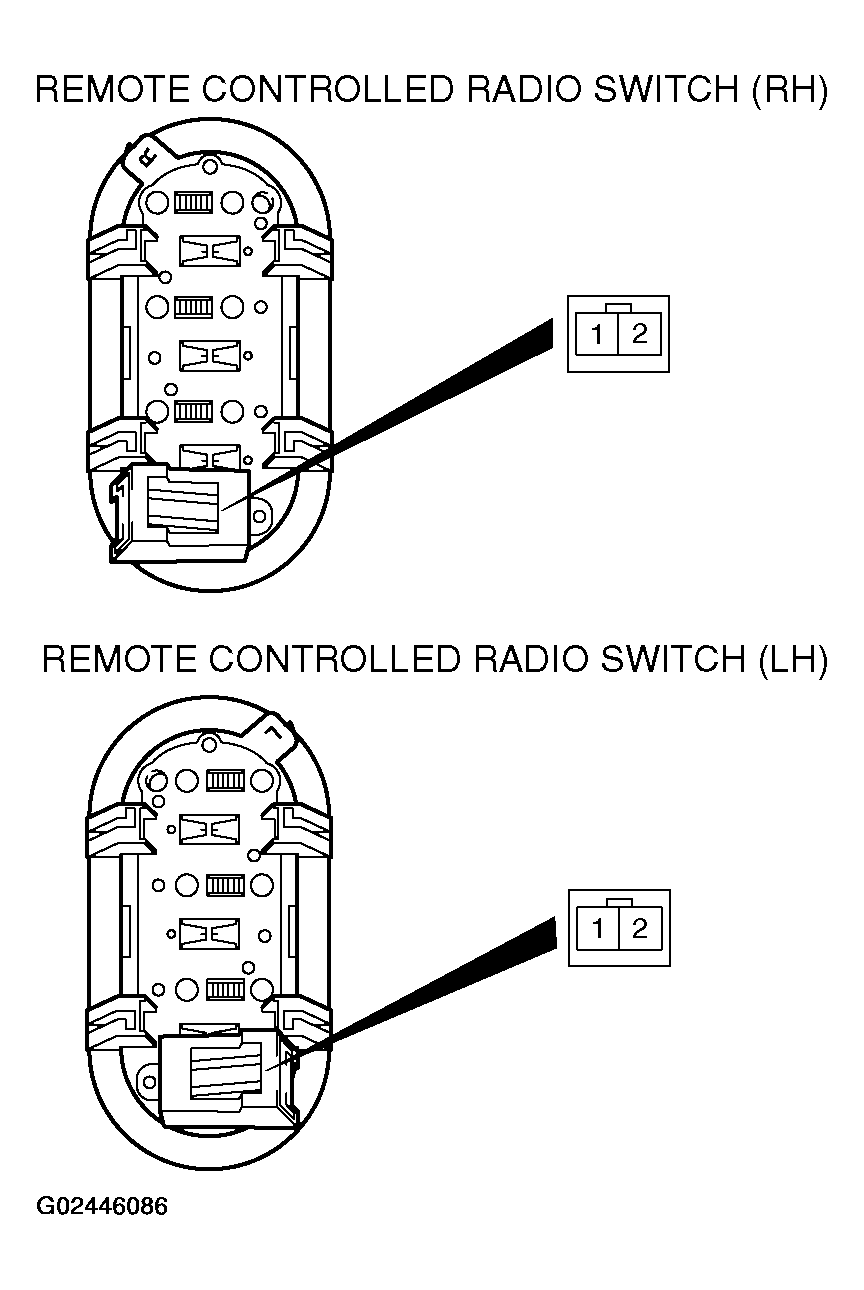

Fig 1: Checking Remote Controlled Radio Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
