Removal And Installation < 3.0L Engine >: Notes

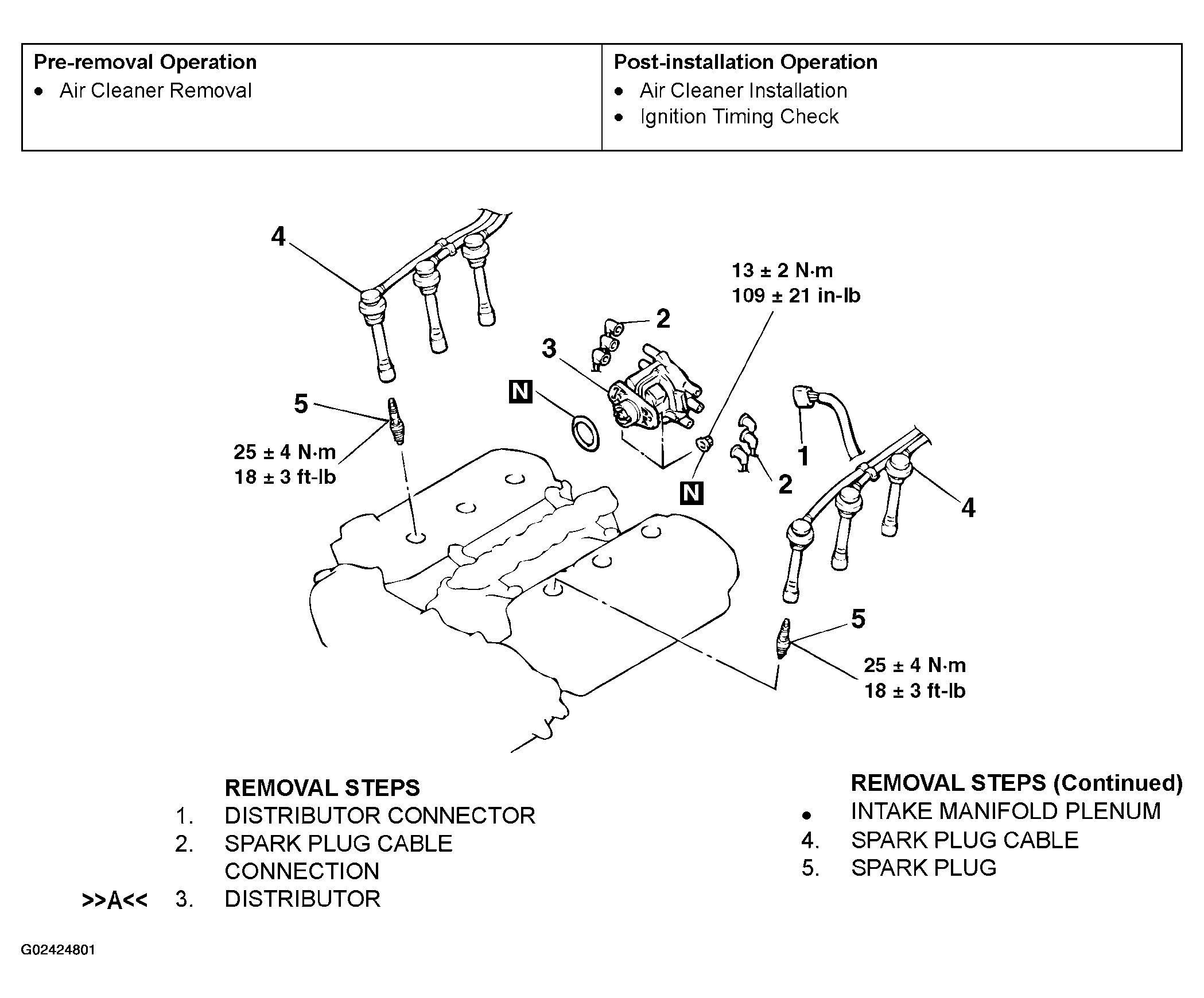

Fig 1: Removal Steps Of Distributor Assembly (3.0L Engine)
G02424801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
