Emission Control: Diagnosis

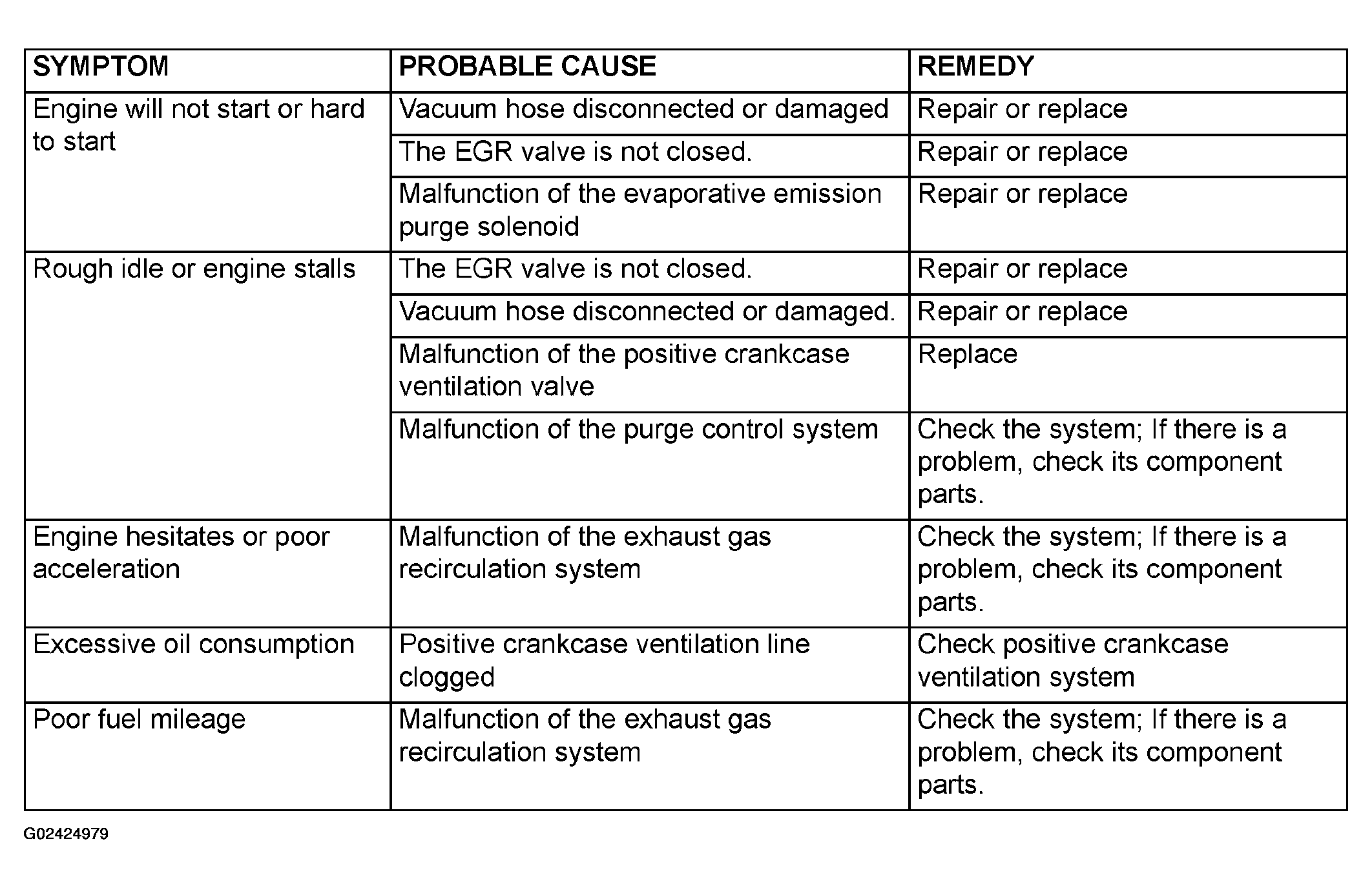

Fig 1: Problem Symptom Chart - Emission Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
