Supplemental Restraint System: General Description: Schematic

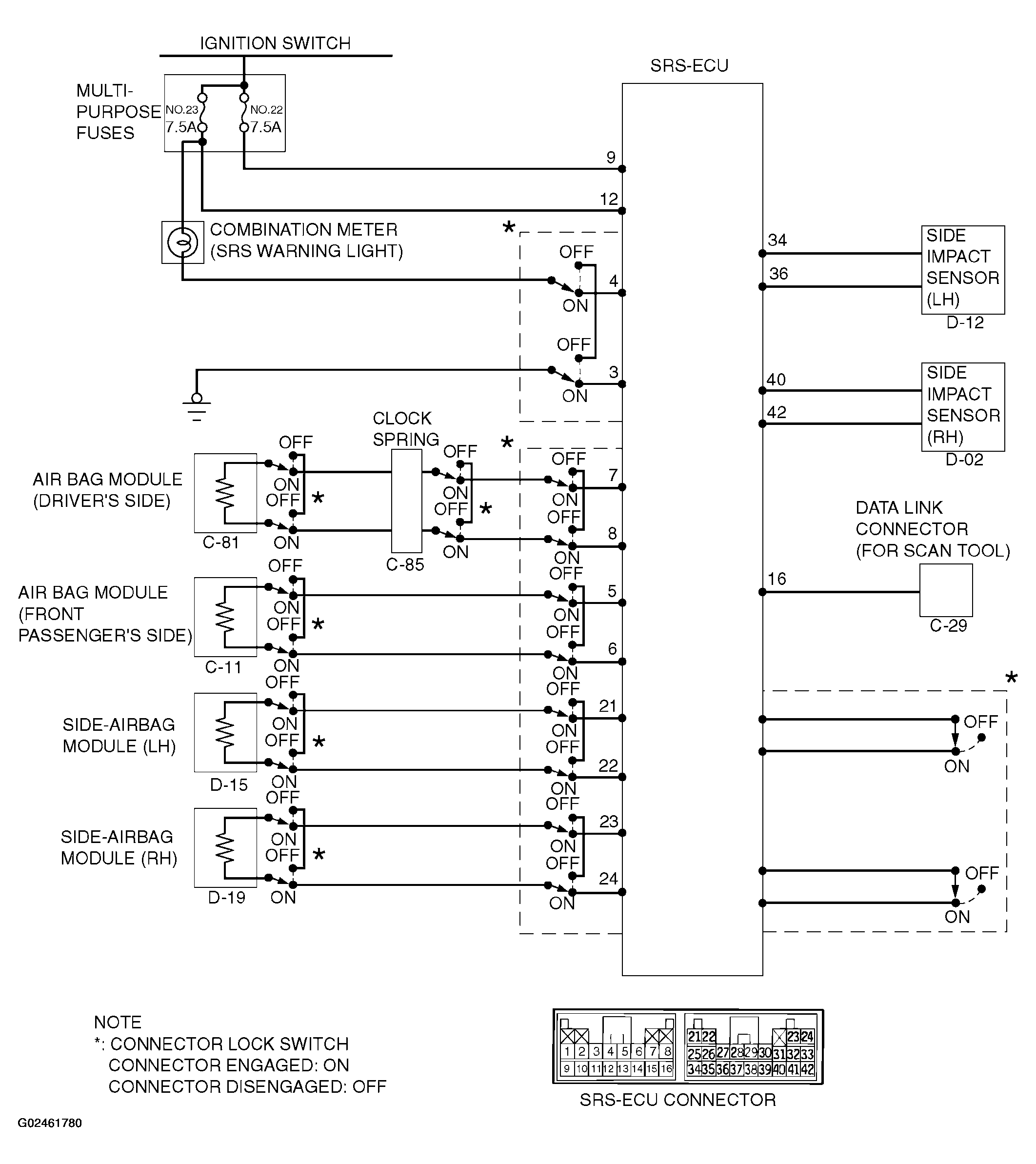

Fig 1: SRS - Schematic Diagram
G02461780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
